PCB termination, Rated current: 17.5 A, Rated voltage (III/2): 320 V, Rated cross-section: 1.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of digits per row: 1-30, Series: DB250S, Pin pitch: 3.5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: green Pin arrangement: straight, Solder pin [P]: 3.5 mm, Number of pins per potential: 2, Packing type: carton
☑ Time-saving plug-in connection without tools
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Small component size for applications where space is at a premium
☑ With the built-in test components, testing can be done quickly and easily
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||

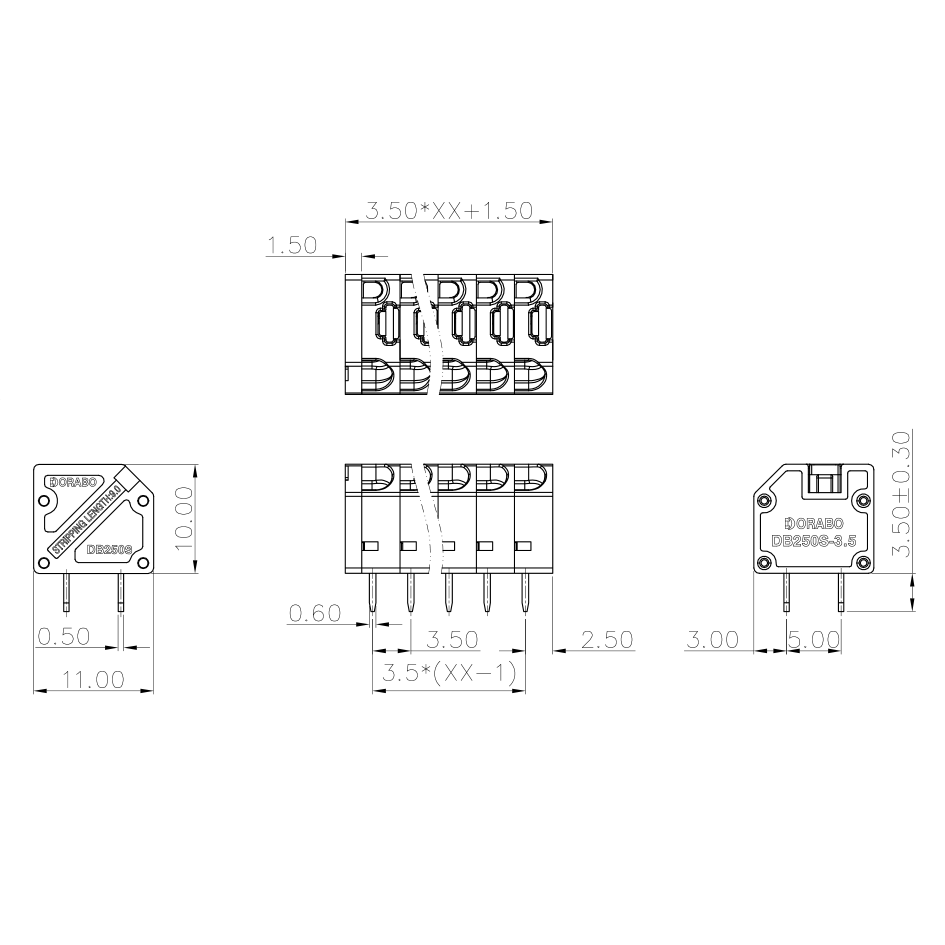

Dimensional drawings
|
PCB cut-out diagram
|
