Fixed connectors, Rated current: 20 A, Rated voltage (III/2): 300 V, Rated cross-section: 2.0 mm2, Number of potentials: 2-16, Number of rows: 1, Number of digits per row: 2-16, Series: DB290R, Pin pitch: 9.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: grey Pin arrangement: straight, Solder pin [P]: 4.2 mm, Number of pins per potential: 2, Packing type: carton
☑ Time-saving plug-in connection without tools
☑ The set contact force ensures that the contacts remain stable for a long time
☑ The clamping position can be opened with a set screwdriver, allowing the conductors to be easily connected
☑ Vertical connections allow for multi-row layouts on the PCB
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] | 20 | ||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||

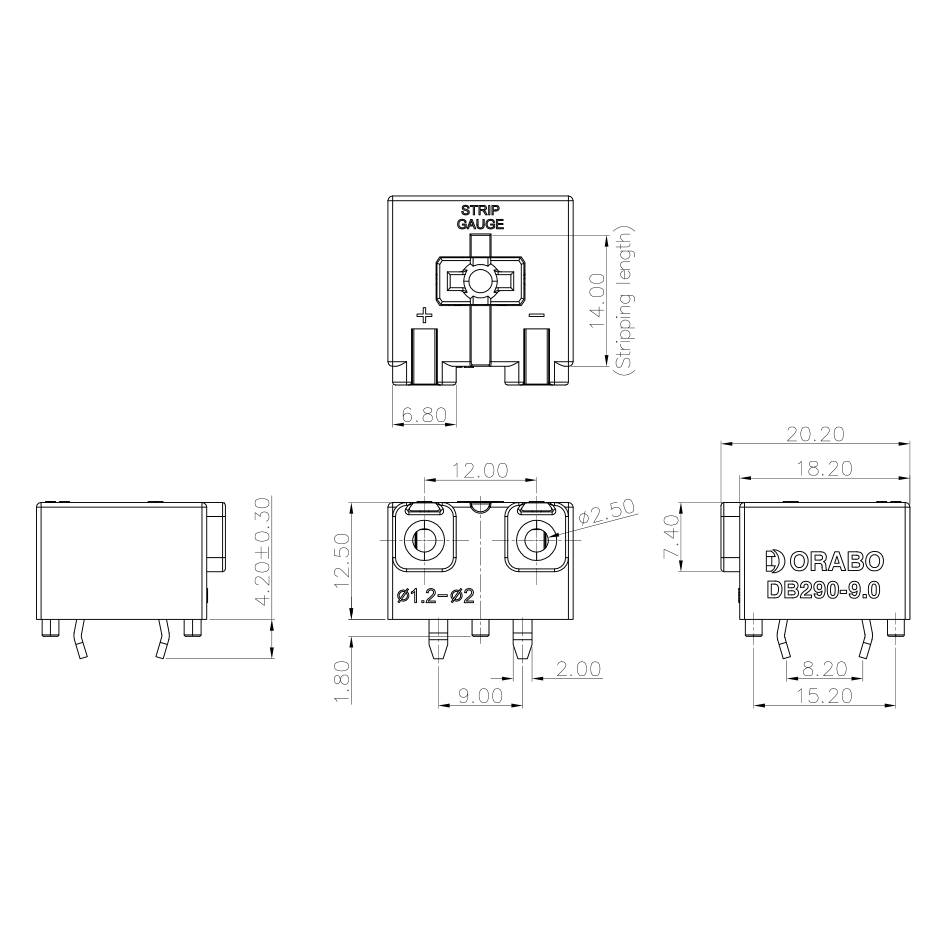

Dimensional drawings
|

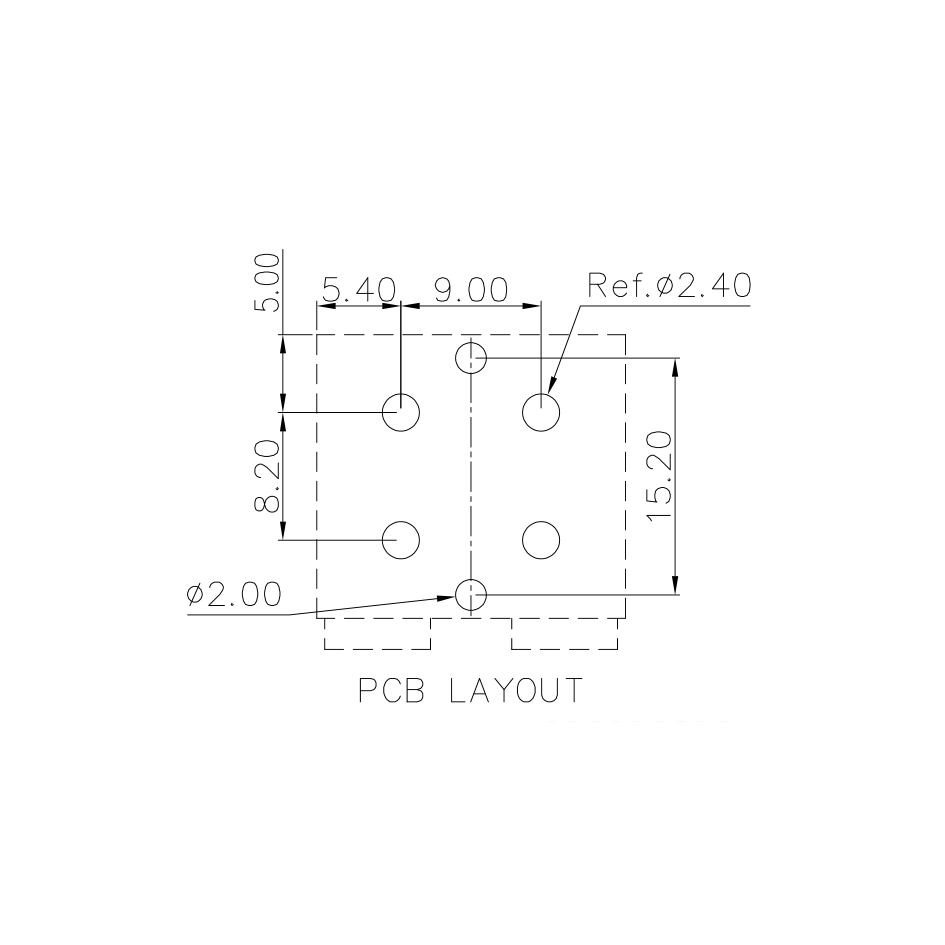

PCB cut-out diagram
|
