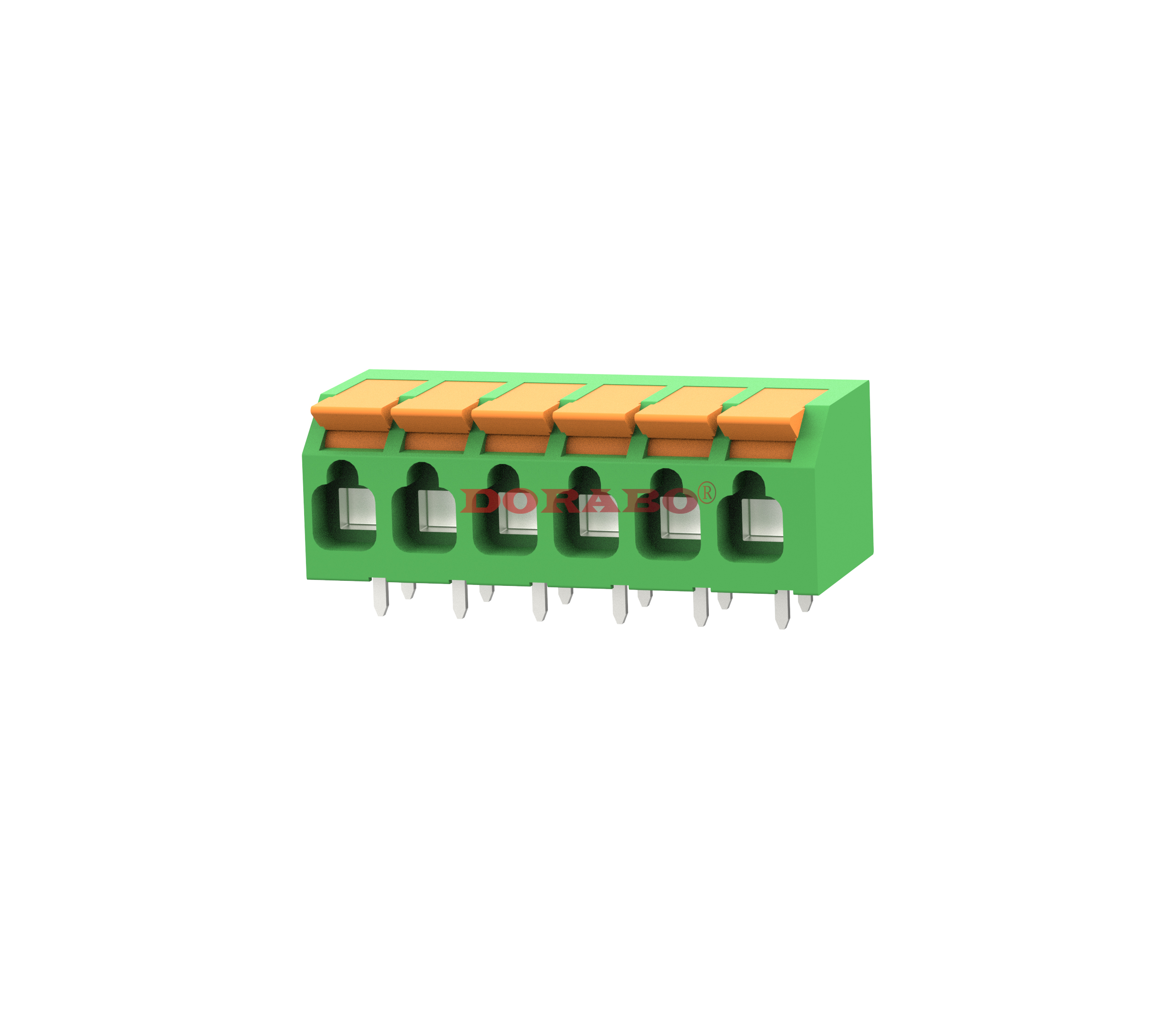

PCB terminal block, current rating: 20 A, voltage rating (III/2): 300 V, cross-section: 4.0 mm2, Number of potentials: 1-24, Number of rows: 1, Number of positions per line: 1-24, Product family: DB803, pitch: 5.0 mm, Connection: Push-in, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: Green, Pin arrangement: Straight, Solder pins [P]: 2.5 mm, Number of solder pins per potential: 2, Packaging type: Carton
Advantage
☑ The tool-free lever saves a lot of time when connecting and releasing conductors with/without sleeves
☑ The position of the lever is clear at a glance and reliably provides feedback on whether the wiring area is open or closed
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Plug-in connection is achieved by closing the lever, saving time
☑ The ejection button is color-coded and intuitive
