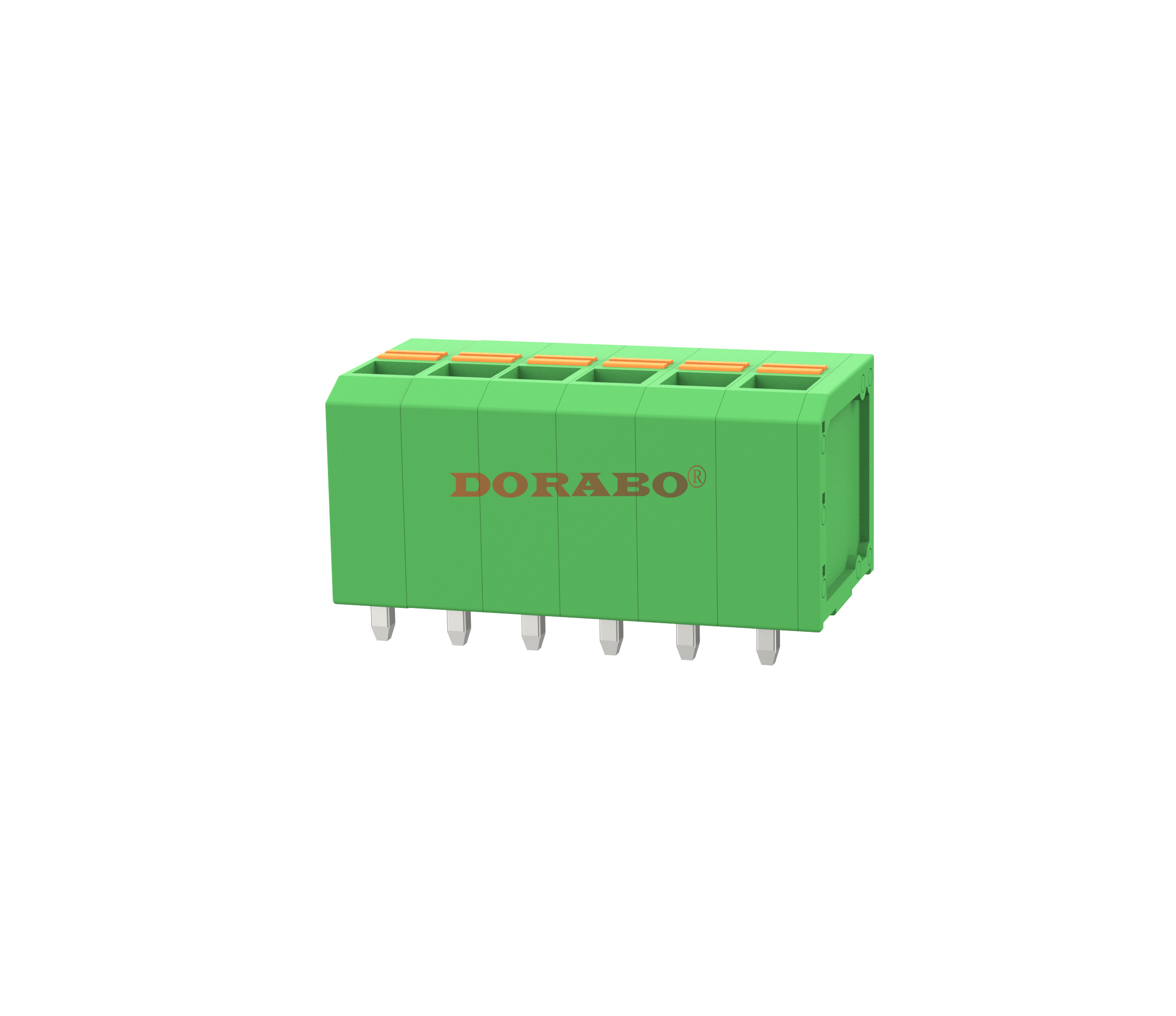

Fixed connector, Rated current: 6 A, Rated voltage (III/2): 300 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of potentials per row: 2-24, Series: DB239, Pin spacing: 3.81 mm, Wiring plan: inline spring connection, Mounting: wave soldering, Orientation of conductor / PCB connection: 90°, Colour: green, Pin arrangement: straight, Number of soldering pins [P]: 3.4 mm, Number of soldering pins per potential: 1, Packing type: carton packing Pin arrangement: straight, Soldering pins [P]: 3.4 mm, Number of pins per potential: 1, Packaging type: carton pack
Advantage
☑Time-saving plug-and-play connection without tools
☑Set contact force ensures long term stability of the contacts
☑Colour coded joystick for intuitive use
☑Quick and easy testing with built-in test elements
☑Vertical connection allows for multiple rows on PCBs
