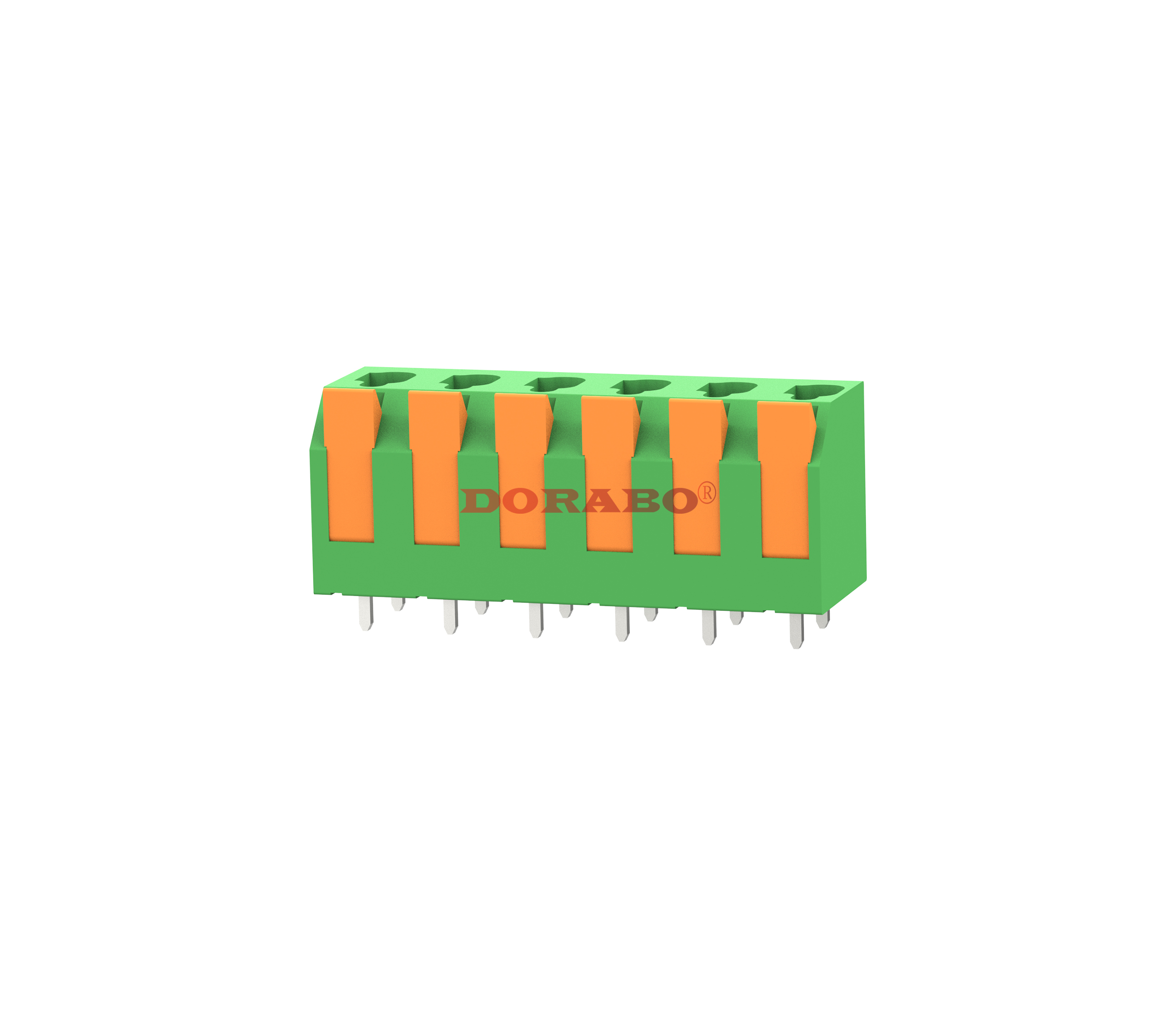

PCB Terminal DB806V-7.5

PCB terminal block, current rating: 20 A, voltage rating (III/2): 300 V, cross-section: 4.0 mm2, Number of potentials: 2-24, Number of rows: 1, Number of positions per line: 2-24, Product family: DB806V, pitch: 7.5 mm, Connection: Push-in, Mounting: Wave soldering, Wire/PCB connection direction: 0 °, Color: Green, Pin arrangement: Straight, Solder pins [P]: 3.5 mm, Number of pins per potential: 2, Packaging type: Carton

Advantage

☑ The tool-free lever saves a lot of time when connecting and releasing conductors with/without sleeves

☑ The position of the lever is clear at a glance and reliably provides feedback on whether the wiring area is open or closed
☑ The set contact force ensures that the contacts remain stable for a long time
☑ Plug-in connection is achieved by closing the lever, saving time
☑ The ejection button is color-coded and intuitive
0
Views: 263
Contact usDownload PDF View 3D Download CAD

  •

    Technical data - UL/CUL



    Rank Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    24~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 800
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    4.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
      7.5/2~24
    Stripping Length [mm]
    11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB板孔径 PCB Hole Diameter [mm]
    ∅1.5

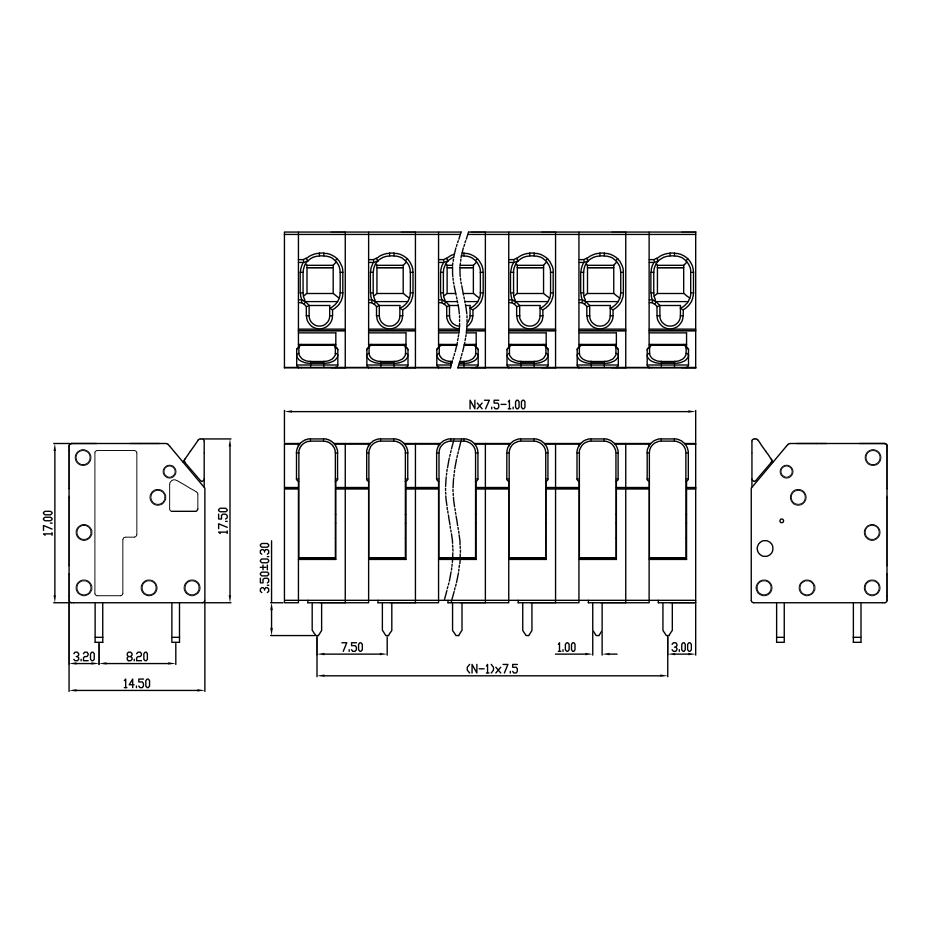

    Dimensional drawings

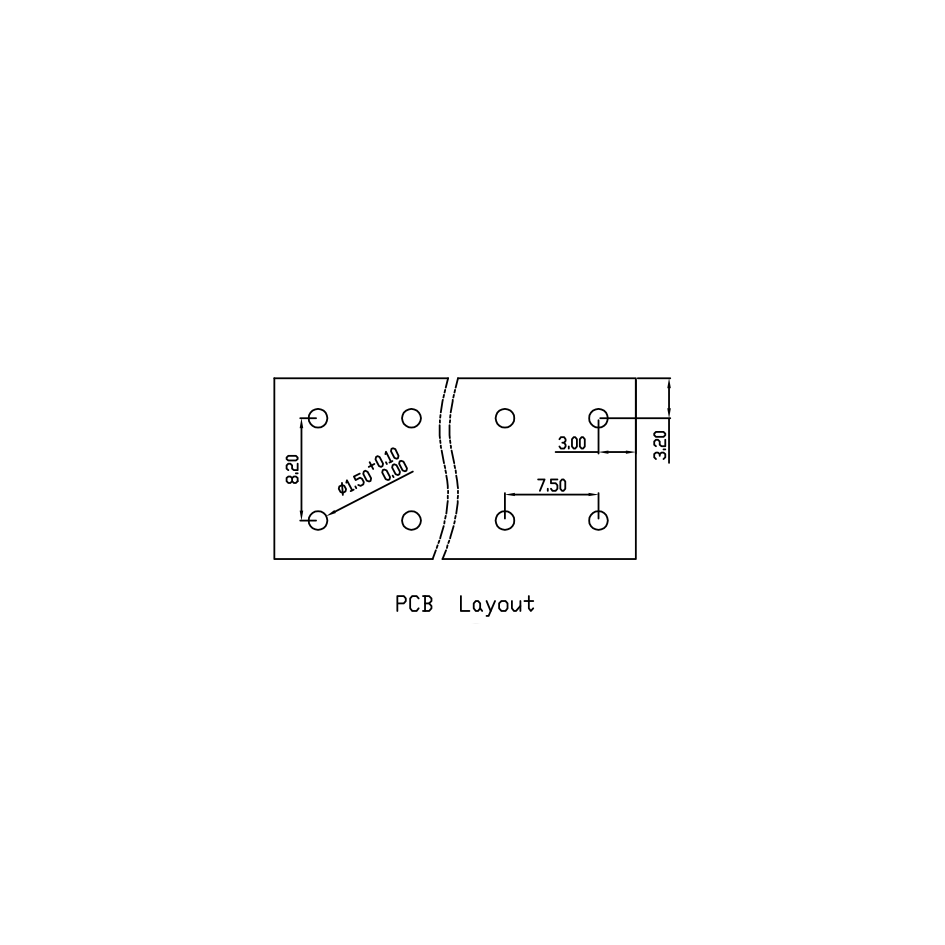

    PCB perforation diagram
