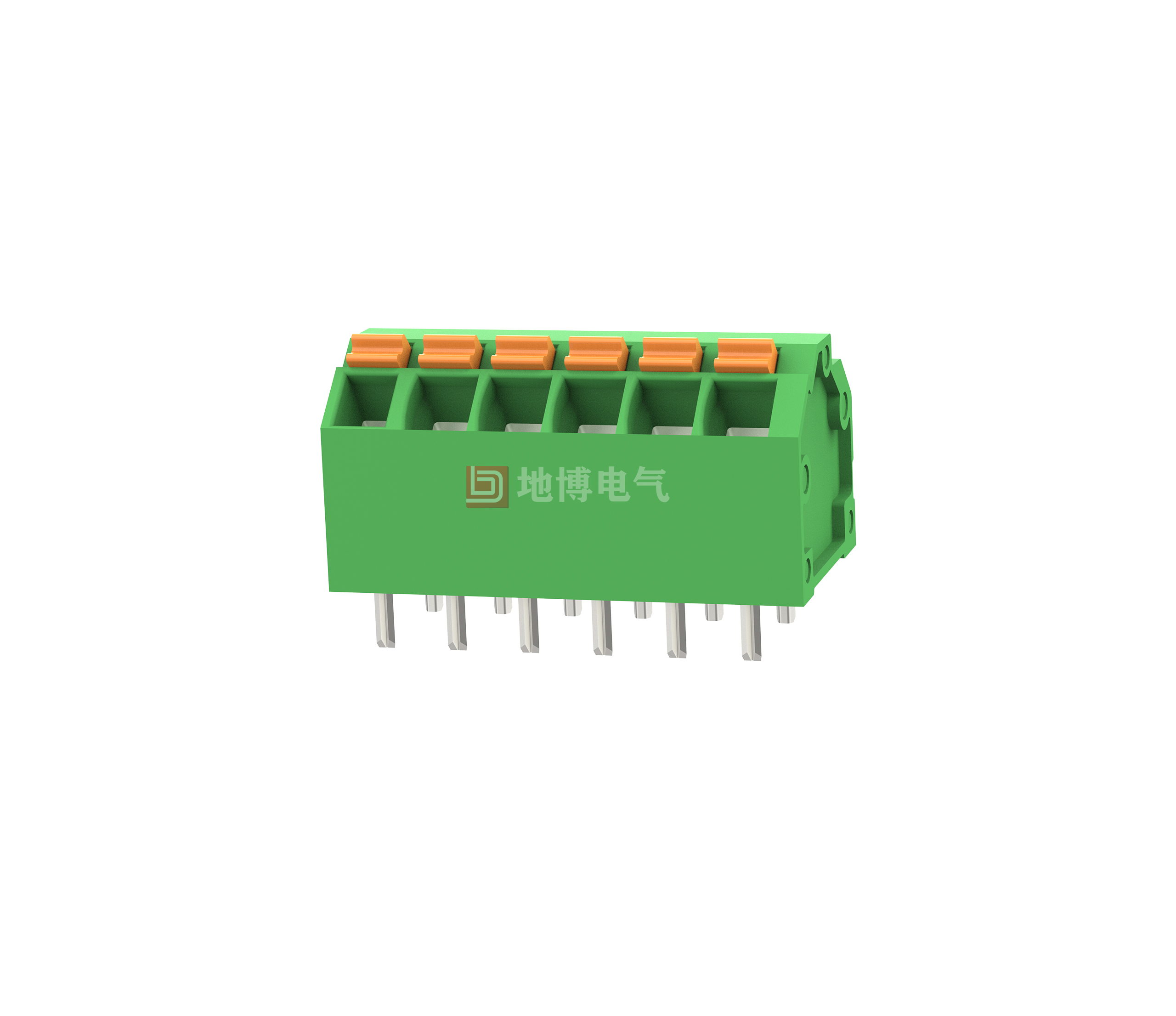

Fixed connectors, Rated current: 9 A, Rated voltage (III/2): 160 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB246, Pin pitch: 3.81 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: green Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of Pins per Potential: 2, Packing Type: Carton
☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Curved connection allows for multiple rows on the PCB
☑Quick and easy testing with built-in test elements
☑Two solder pins to reduce mechanical stress on solder joints
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||
Dimensional drawings |
PCB cut-out diagram |
