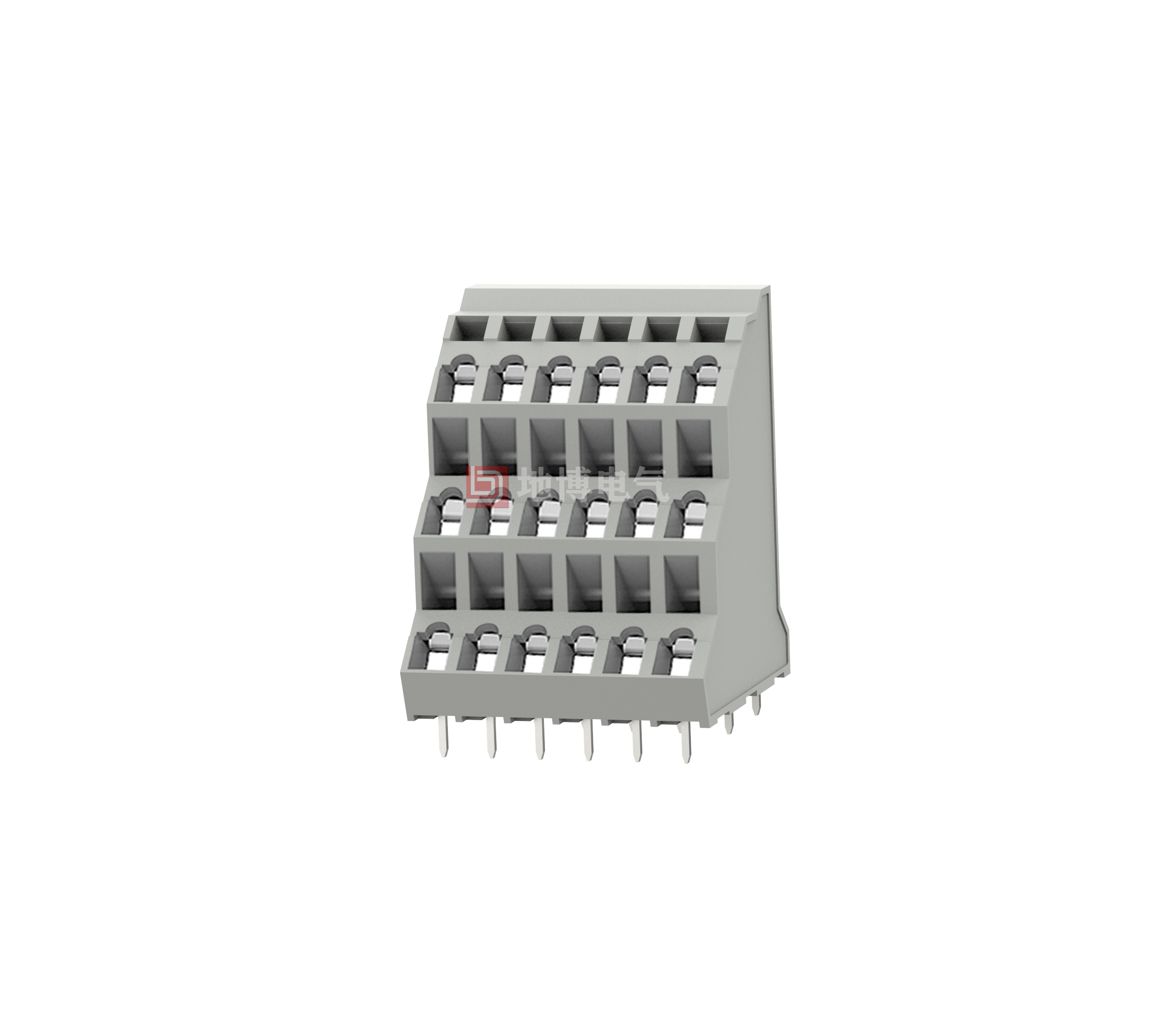

Fixed connectors, Rated current: 12 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 9-72, Number of rows: 3, Number of pins per row: 9-72, Series: DB245H3, Pin pitch: 5.0 mm, Wiring method: Pull-back spring connection, Mounting: Wave soldering, Wire/PCB connection direction: 45°, Colour: Green, Pin arrangement: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 1, Packing type: Carton
☑ Set contact force ensures that the contacts remain stable over time
☑The wire clamping position can be opened by means of a fixing screwdriver, allowing easy connection of the wires
☑Multi-layer wire connection for high contact density
☑The number of different positions can be combined by means of the side latch
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||
Dimensional drawings
|
PCB cut-out diagram
|
