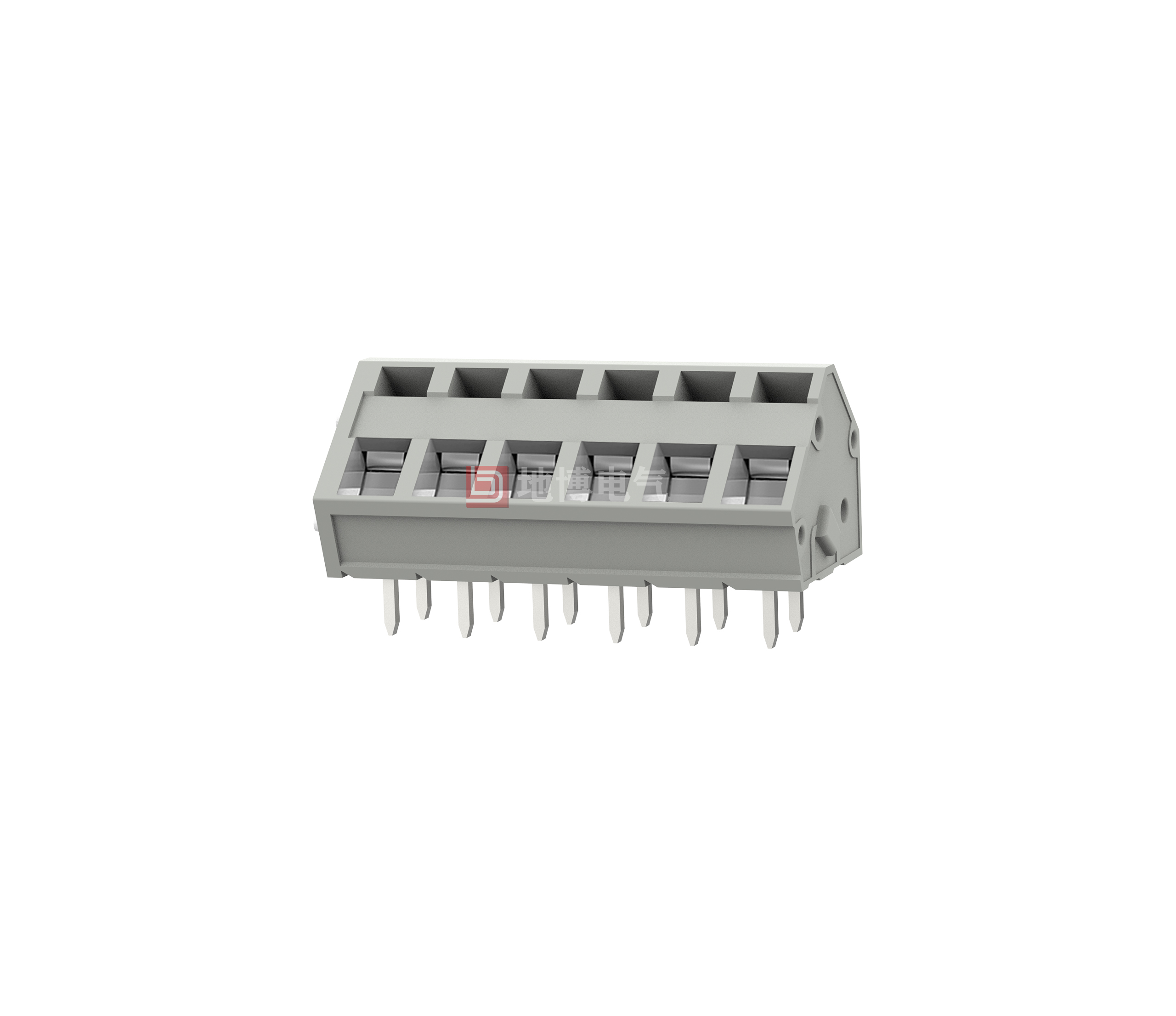

PCB terminal DB245-5.0

Fixed connectors, Rated current: 17 A, Rated voltage (III/2): 450 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-30, Number of rows: 1, Number of bits per row: 2-30, Series: DB245, Pin spacing: 5.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wires/PCB Connection orientation: 45°, Color: Gray, Pin alignment: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 2, Package type: Carton

Advantages

☑Time-saving plug-and-play connectivity without tools
☑ Set contact force ensures stable contacts over time
☑ Color-coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction, allowing integrated into the front of the device
☑Two weld pins reduce mechanical stress on weld joints
☑The different digits can be combined by the latch on the side
☑Vertical connection enables multiple rows on PCB
0
Views: 22,746
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/1~30
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.75*0.7
    PCB Hole Diameter [mm]
    ∅1.3

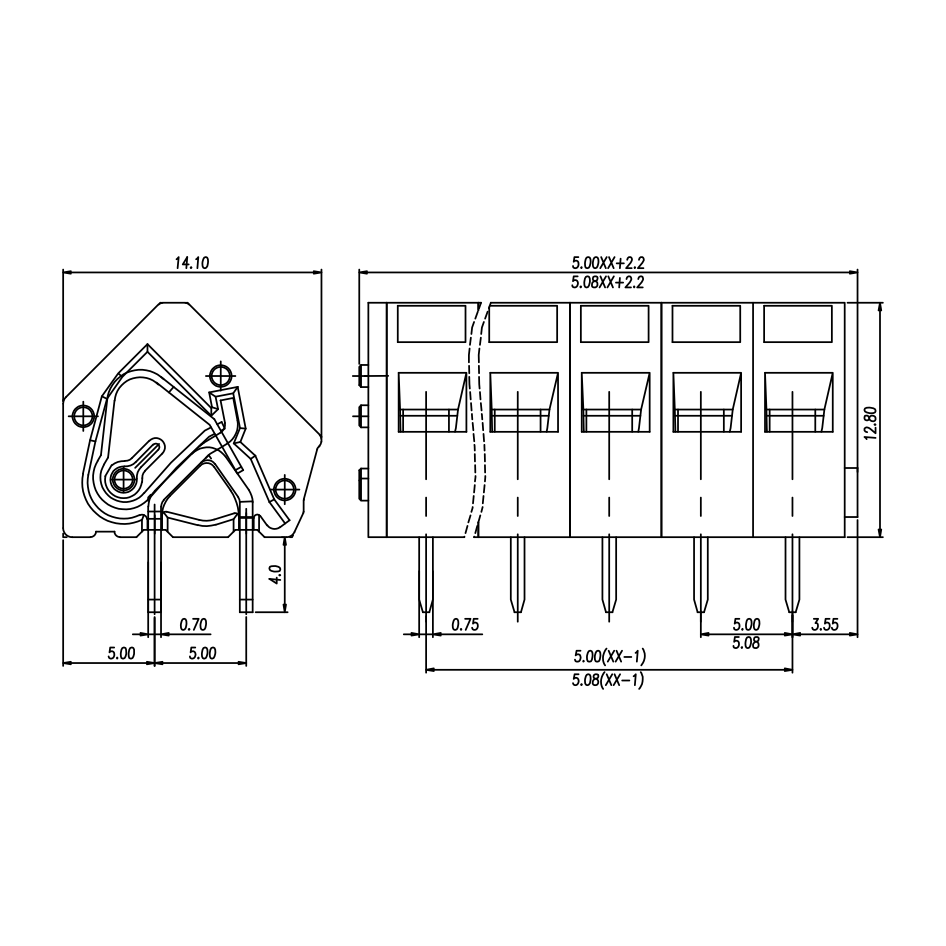

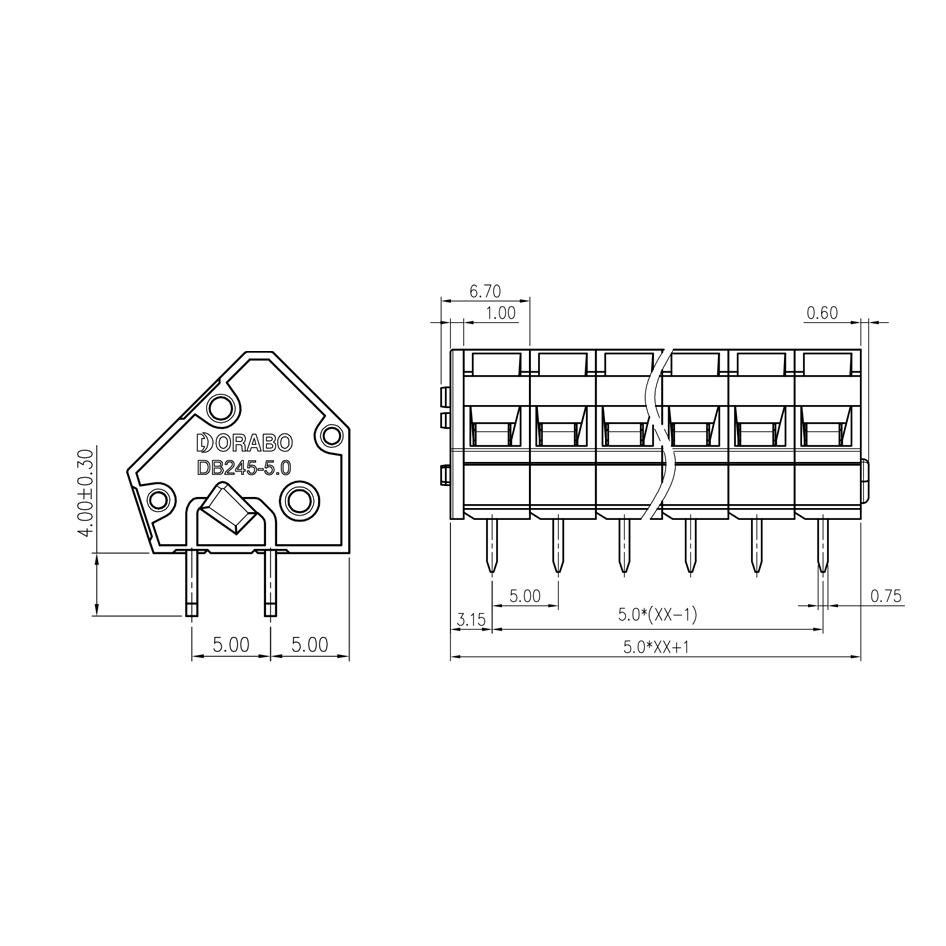

    Size Chart

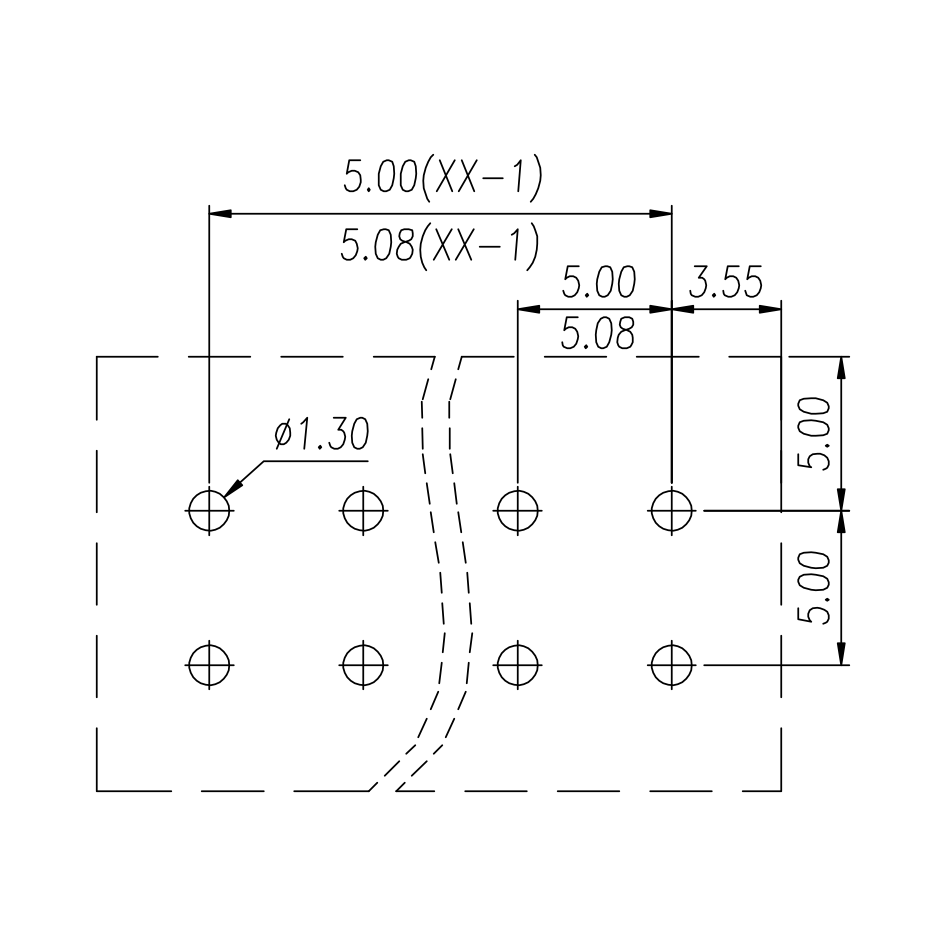

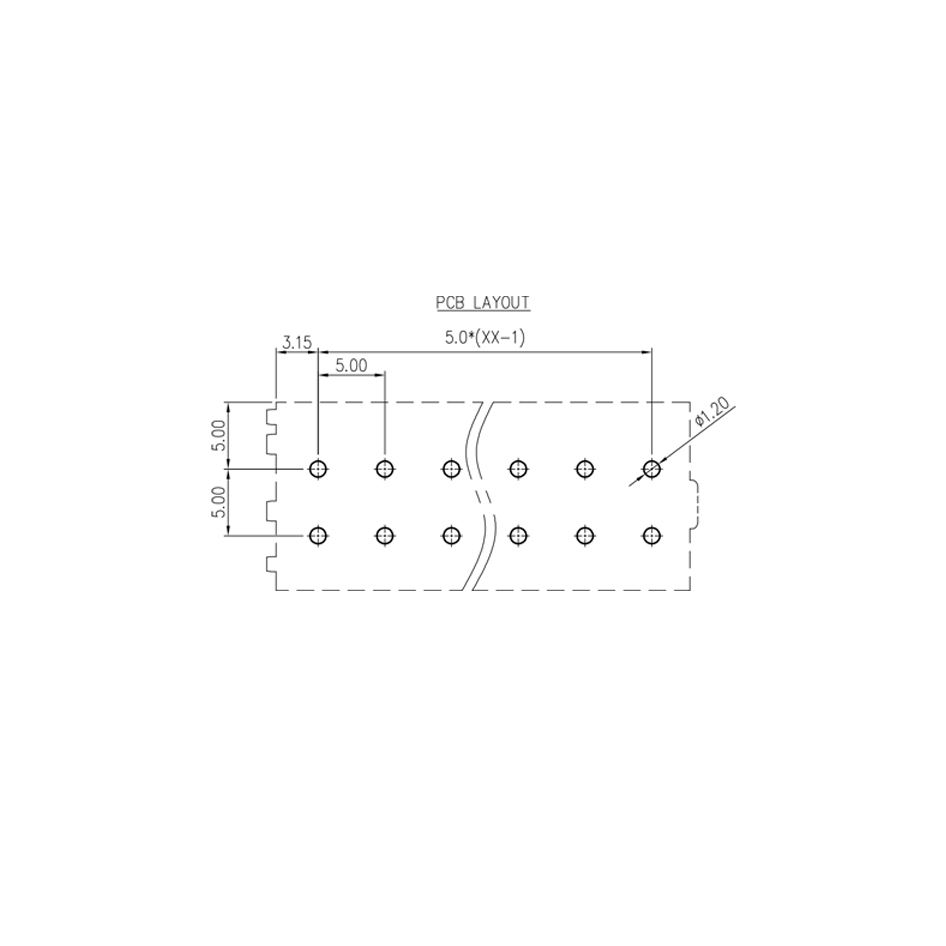

    PCB opening diagram
