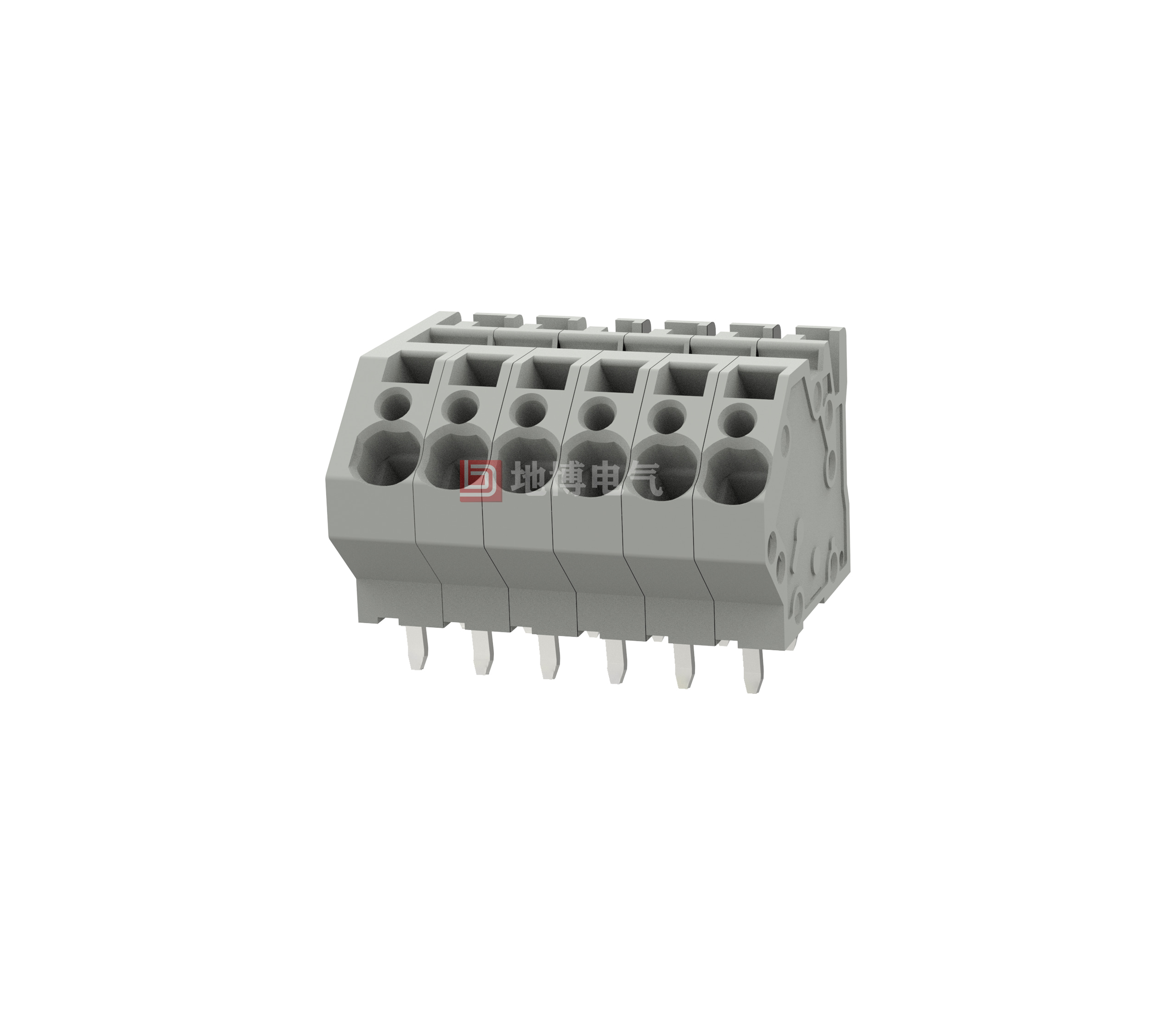

PCB terminal DB242-5.0

Fixed connectors, Rated current: 20 A, Rated voltage (III/2): 300 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of bits per row: 2-24, Series: DB242, Pin pitch: 5.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Color: gray Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of Pins per Potential: 2, Packing Type: Carton

Advantages

☑Time-saving plug-and-play connection method, no tools required
☑The set contact force ensures that the contacts remain stable for a long time
☑The color-coded joystick is easy to use intuitively
☑Wire can be connected and disconnected from a single direction so that it can be integrated into the front of the equipment
☑Two solder pins can reduce the mechanical stress on the solder point
☑Different digits can be combined through the side latch
☑Vertical connection allows for multiple rows of layout on the PCB
0
Views: 325
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    28~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2~4.0



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    9~10
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.2*0.8
    PCB Hole Diameter [mm]
    ∅1.8

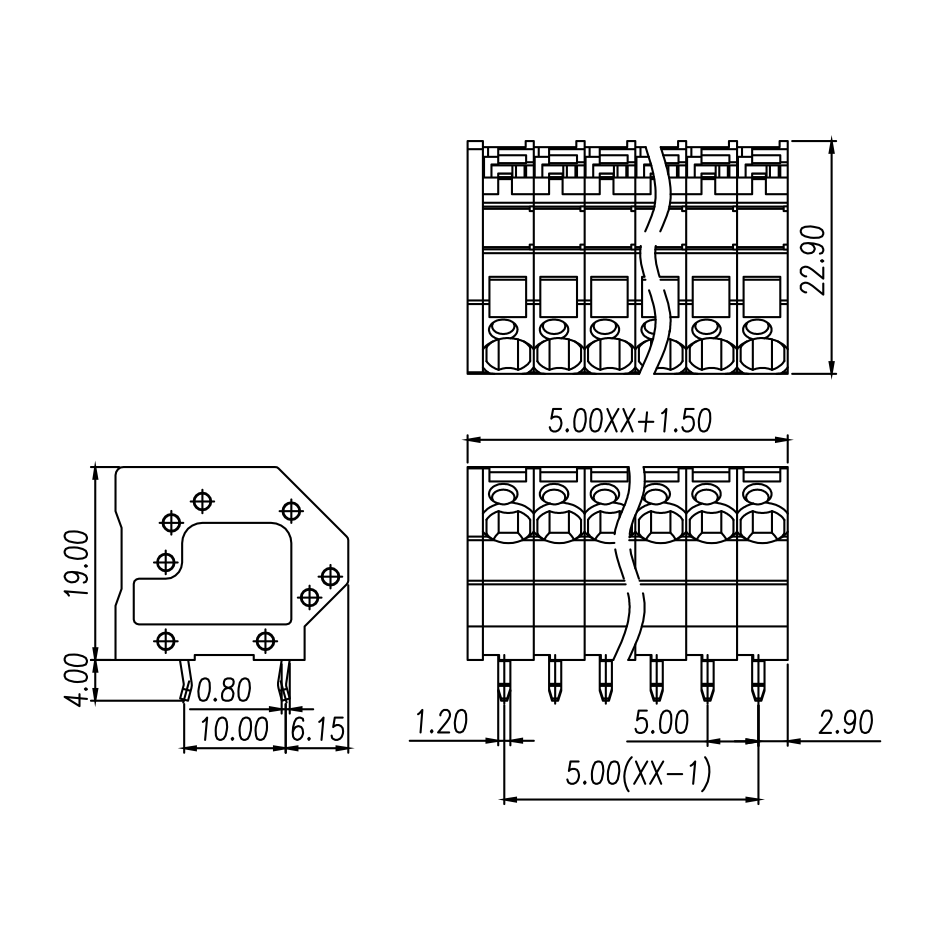

    Size Chart

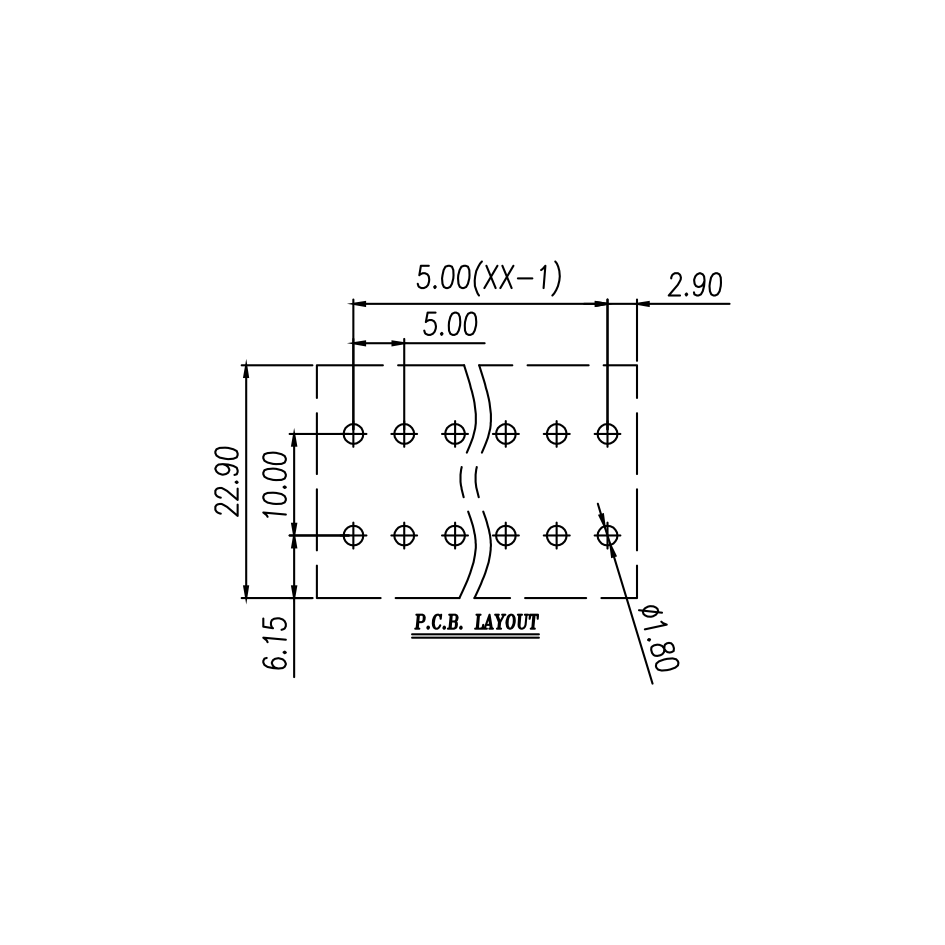

    PCB opening diagram
