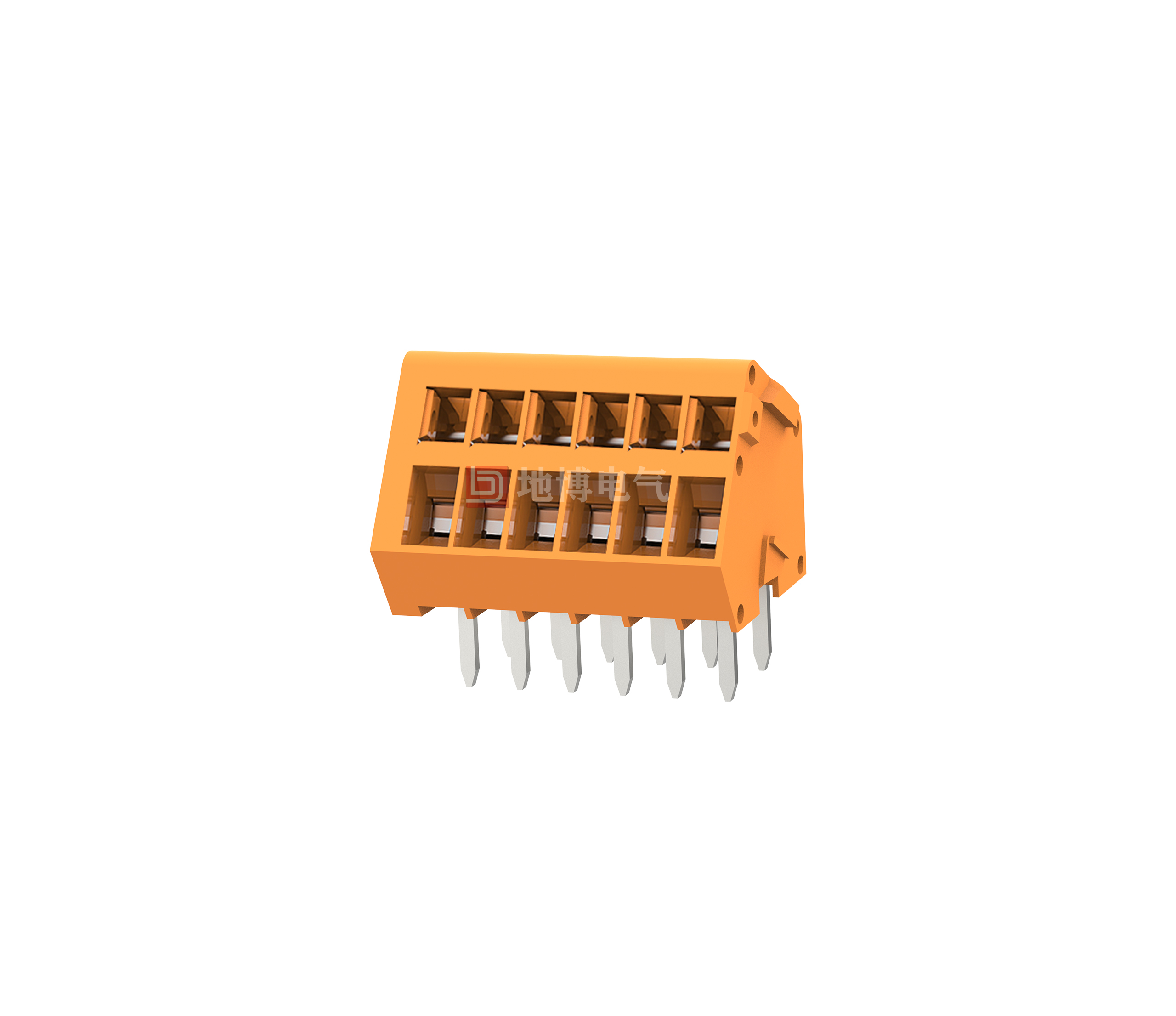

PCB terminal DB240W-2.54

Fixed connectors, Rated current: 6 A, Rated voltage (III/2): 160 V, Rated cross-section: 0.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB240W, Pin pitch: 2.54 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 45°, Colour: Green, Pin arrangement: Straight, Solder pin [P]: 3.6 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑The combination of different digits is possible through the side latch
