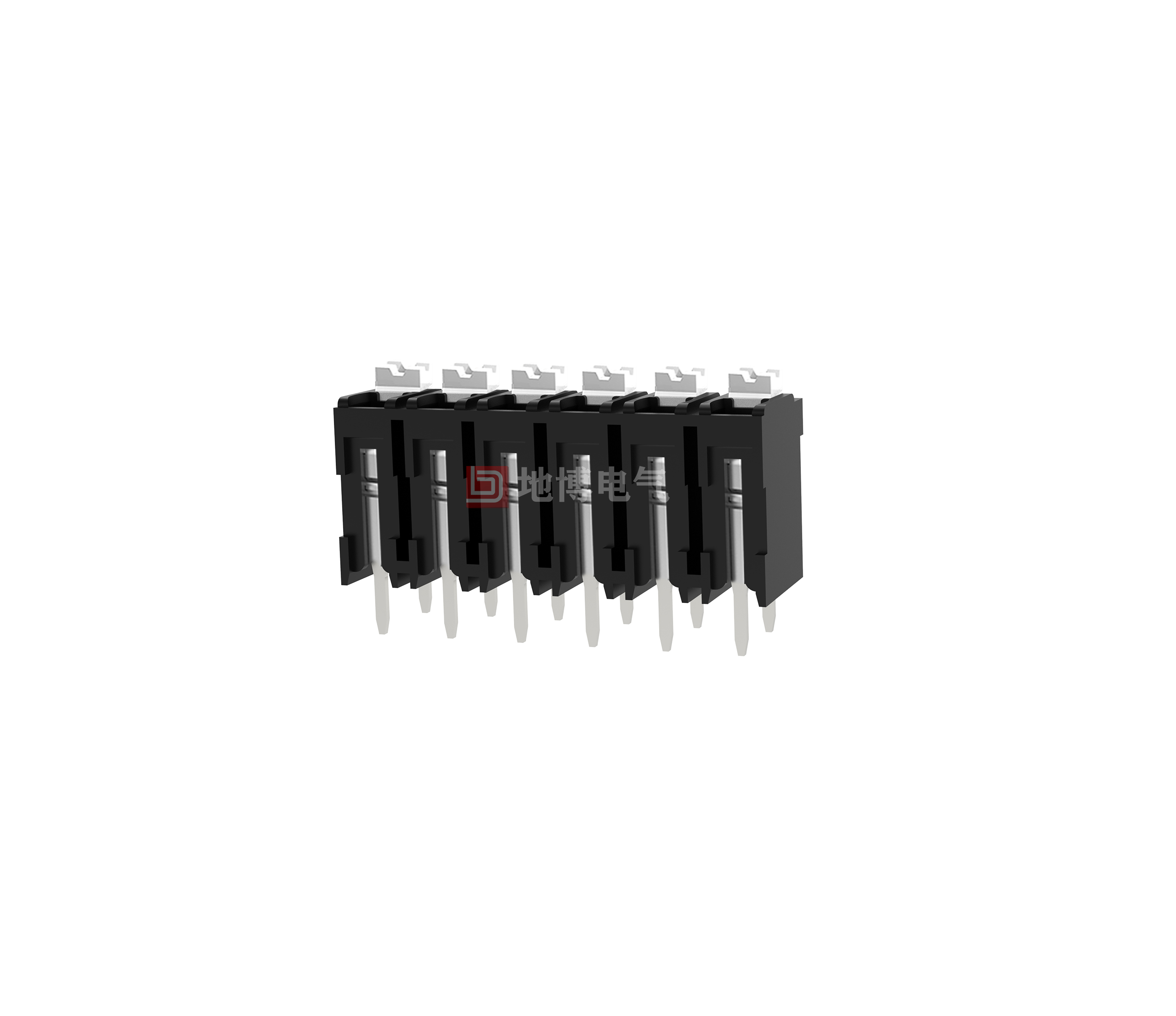

PCB terminal DB212V-5.0

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 320 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB212V, Pin pitch: 5 mm, Wiring: Straight spring connection, Mounting: THR soldering, Orientation of lead/PCB connection: 90°, Colour: black, Pin arrangement: straight, Solder pins [P]: 2.6 mm, Number of pins per potential: 2, Packing type: carton : Black, Pin arrangement: Straight, Solder pin [P]: 2.6 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Designed to be integrated into the SMT soldering process
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the equipment
☑Quick and easy testing with built-in test elements
☑Two solder pins to reduce mechanical stress on the solder joint
