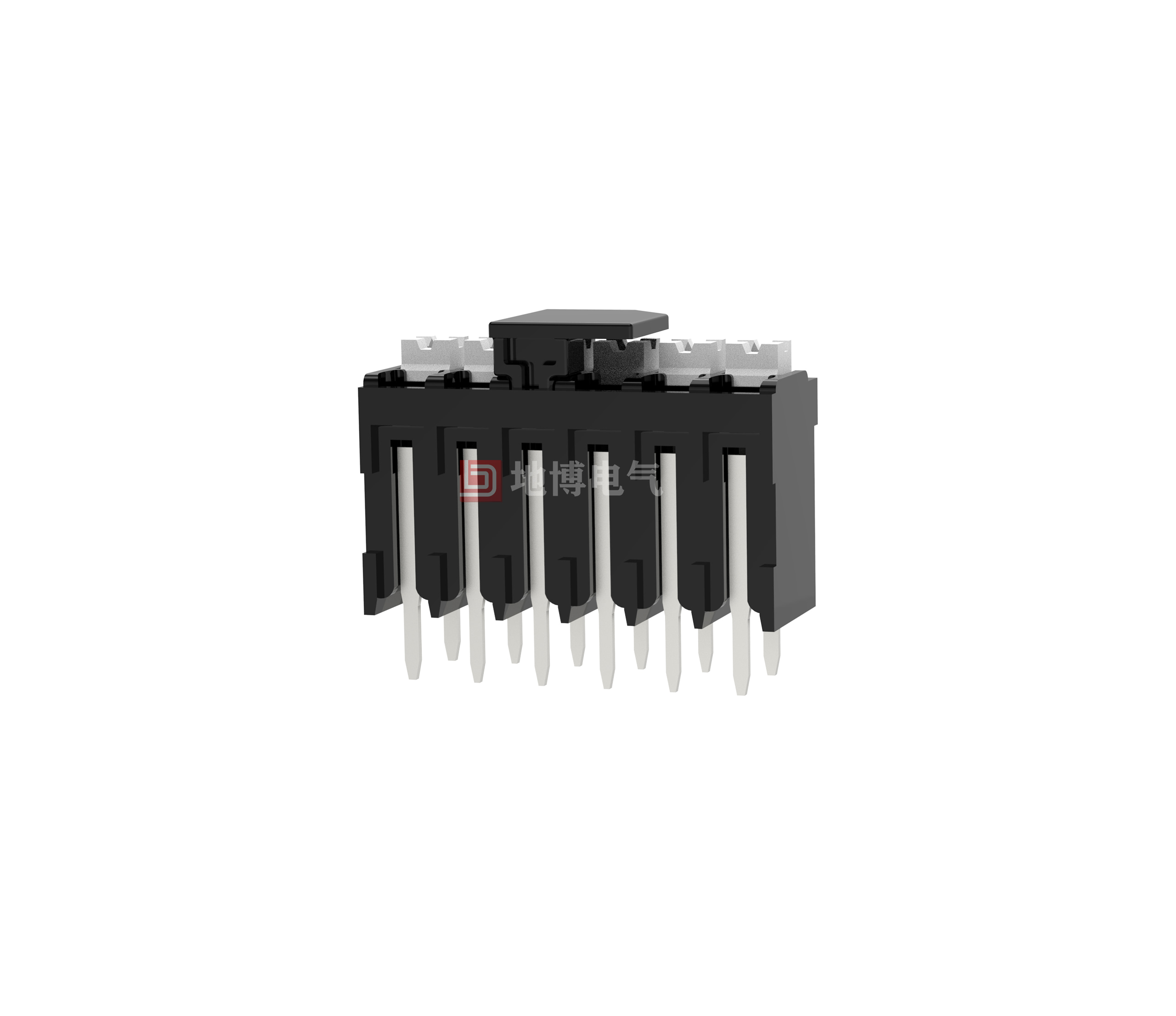

PCB Terminal DB212V-3.5 Tape

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 160 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB212V, Pin pitch: 3.5 mm, Wiring method: Straight spring connection, Mounting: SMD soldering, Wire/PCB connection direction: 90°, Color: black, Pin arrangement: straight, Number of pins per potential: 2 Color: Black, Pin Arrangement: Straight, Number of Pins per Potential: 2, Package Type: 24 mm wide tape and reel

Advantages

☑Time-saving plug-and-play connection method, no tools required
☑The set contact force ensures that the contacts remain stable for a long time
☑The color-coded joystick is easy to use intuitively
☑Designed for integration into SMT soldering process
☑Wire can be connected and disconnected from a single direction, so that it can be integrated into the front of the equipment
☑Using built-in test elements, testing can be done quickly and easily
☑Two soldering points in each position to reduce the mechanical stress on the soldering point
0
Views: 310
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material Information



    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5/2~24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.4
    PCB Hole Diameter [mm]
    ∅1.2

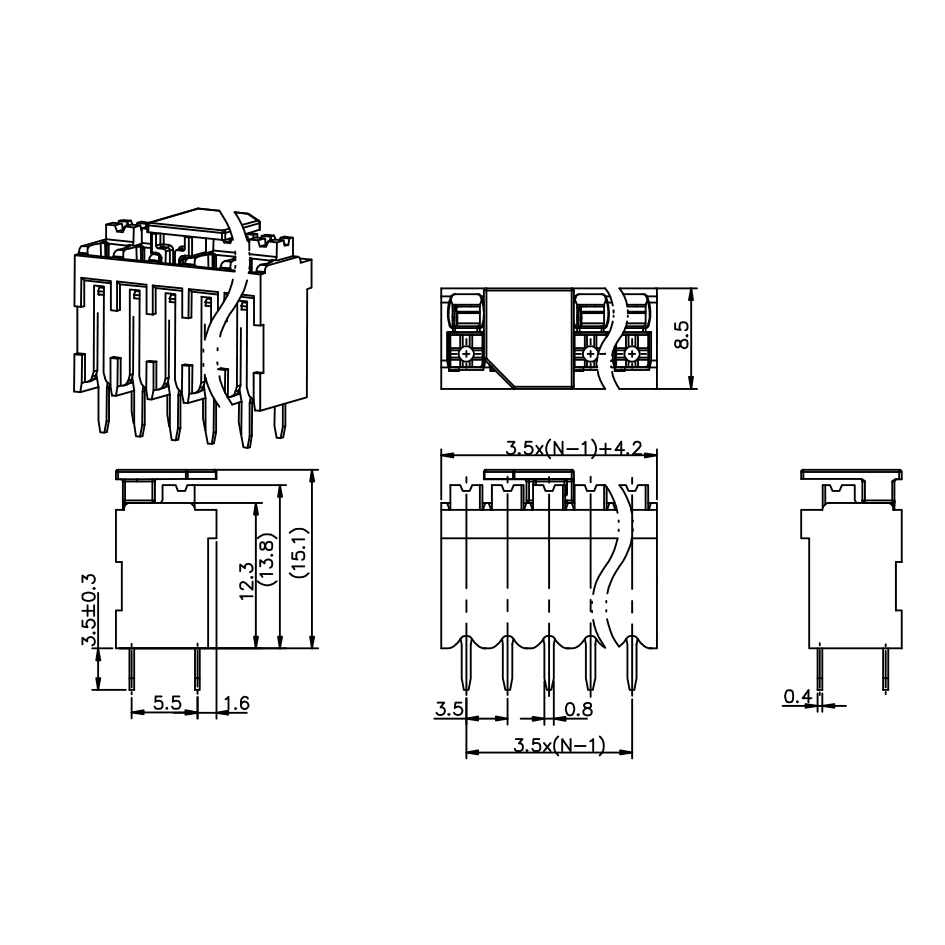

    Size Chart

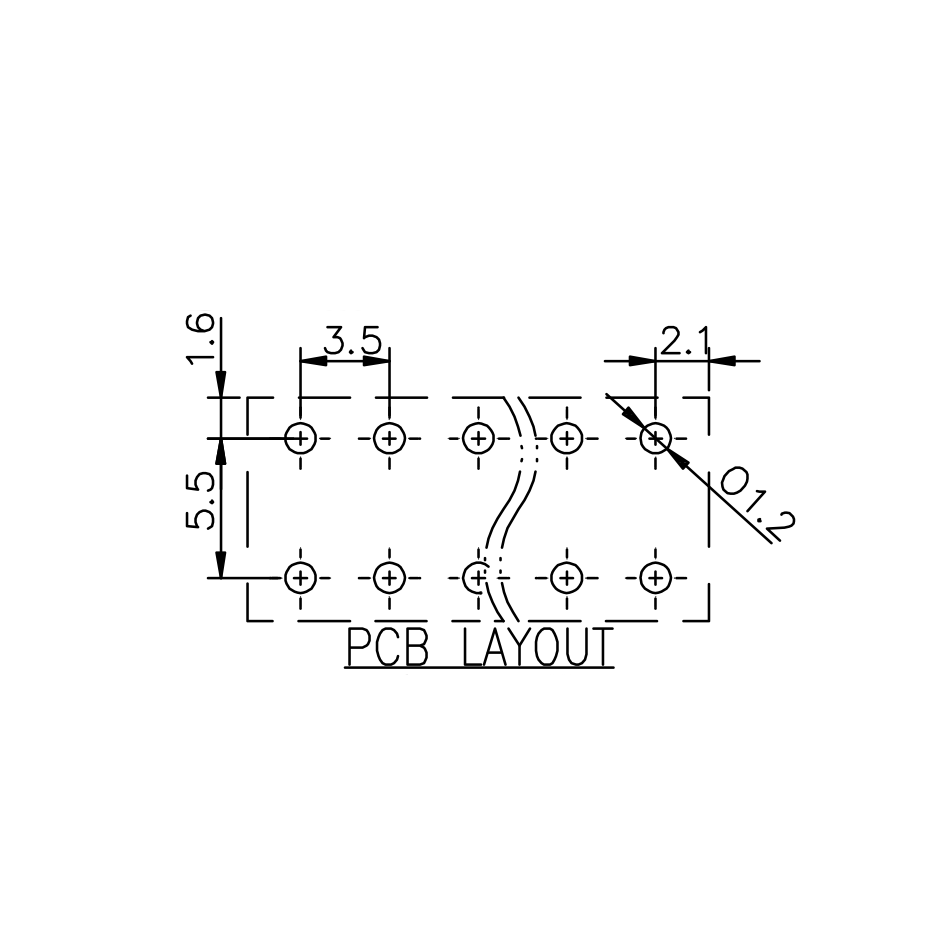

    PCB opening diagram
