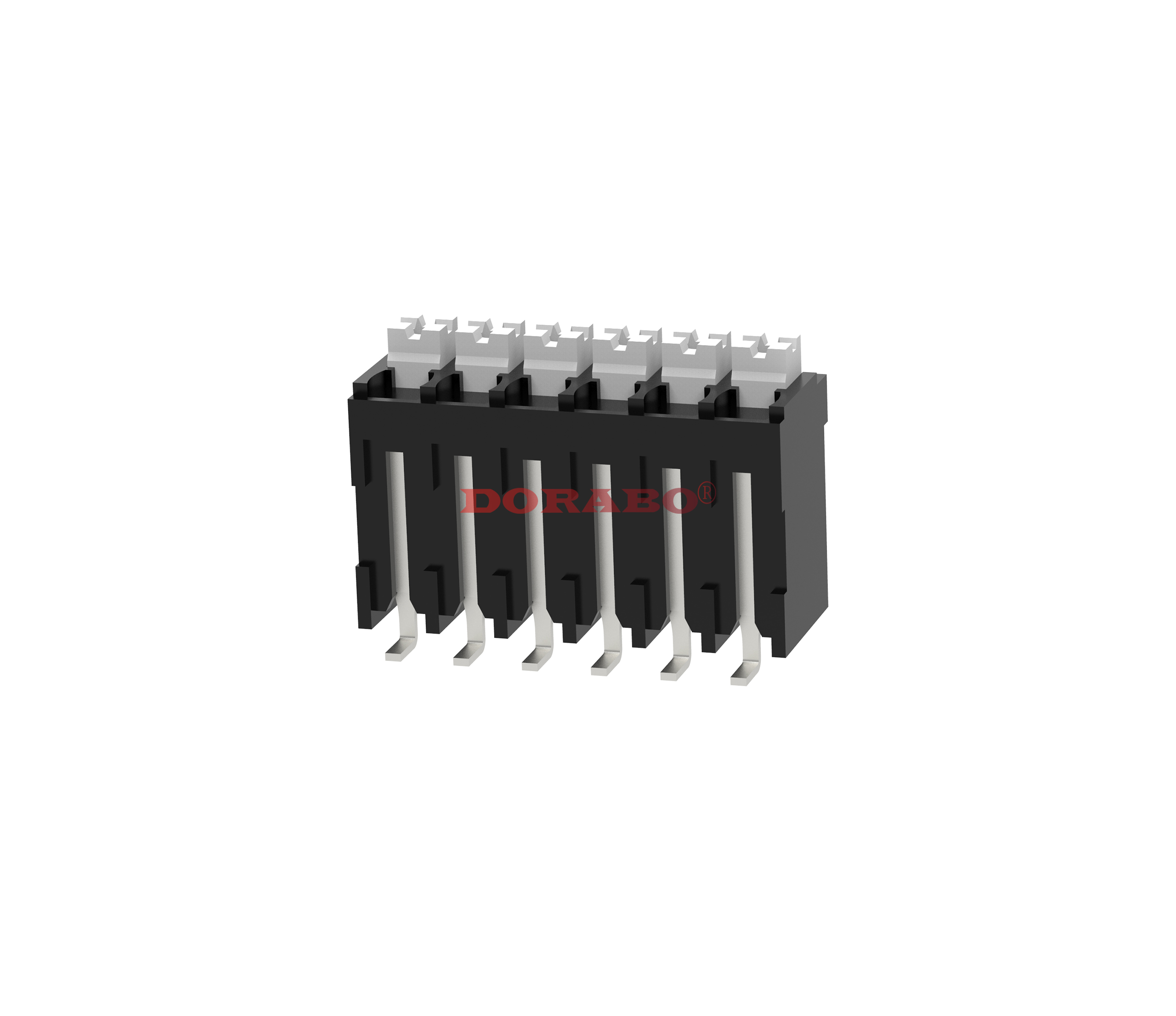

PCB terminal DB212TV-3.5

PCB terminal block, Rated current: 10 A, Rated voltage (III/2): 300 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of positions per row: 2-24, Product family: DB212TV, pitch: 3.5 mm, Connection: Push-in spring connection, Mounting: THR SMD soldering, Conductor/PCB connection direction: 90 °, color: Black, Pin arrangement: Straight, solder pins [P]: 2.6 mm, Number of solder pins per potential: 2, Packing type: Carton. Applies to CAT

Advantage

☑ Time-saving plug-in connection without tools

☑ The set contact force ensures that the contacts remain stable for a long time
☑ Color-coded joysticks make it easy to use intuitively
☑ Designed to be integrated into the SMT soldering process
☑ Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑ With the built-in test components, testing can be done quickly and easily
☑ There are two weld points in each position, which reduces the mechanical stress on the weld joints
0
Views: 199
Contact usDownload PDF View 3D Download CAD

  •

    Technical data - UL/CUL



    Rank Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    12 - 10
    Wire Range [AWG]
    24~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material Information



    Insulation Material
    LCP
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2~24
    Stripping Length [mm]
    7~8
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.4
    PCB板孔径 PCB Hole Diameter [mm]
    -

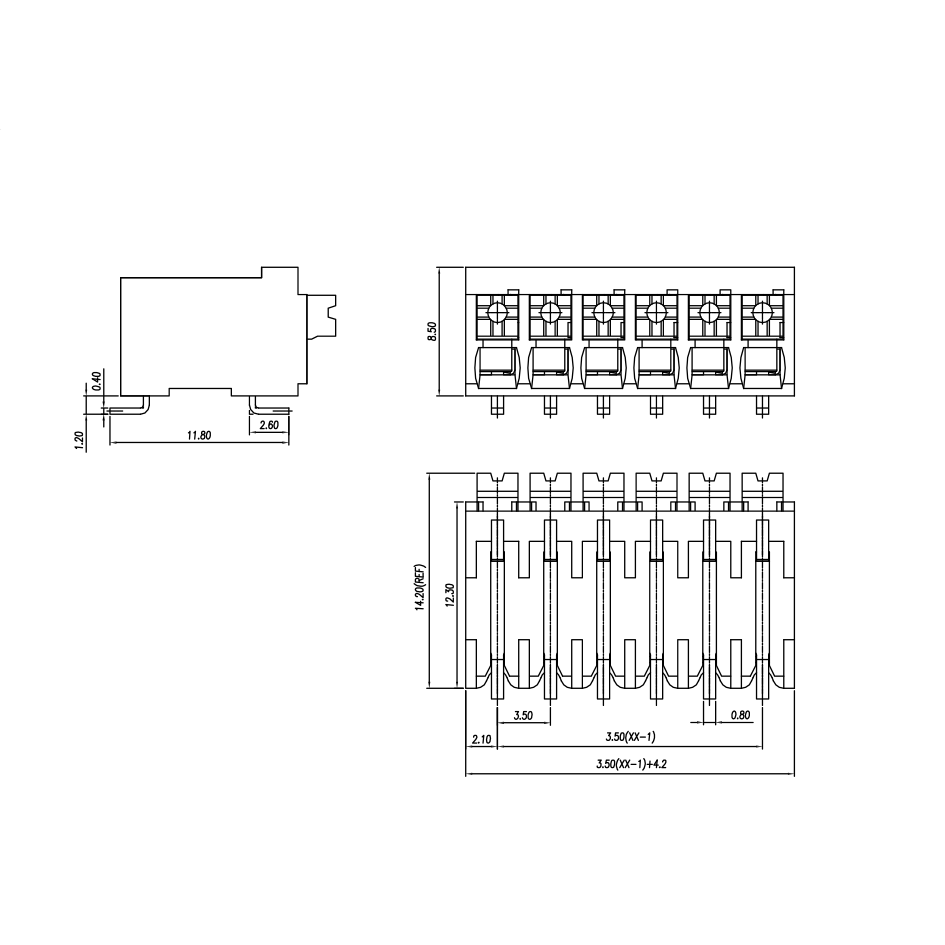

    Dimensional drawings

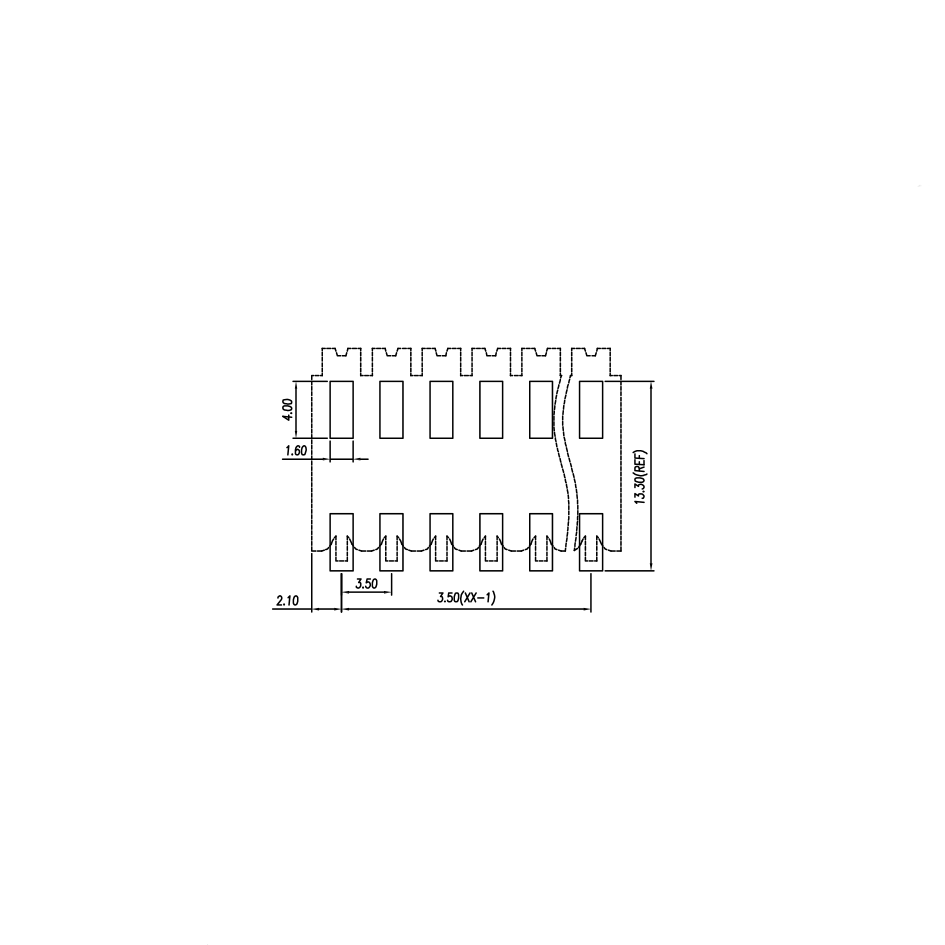

    PCB perforation diagram
