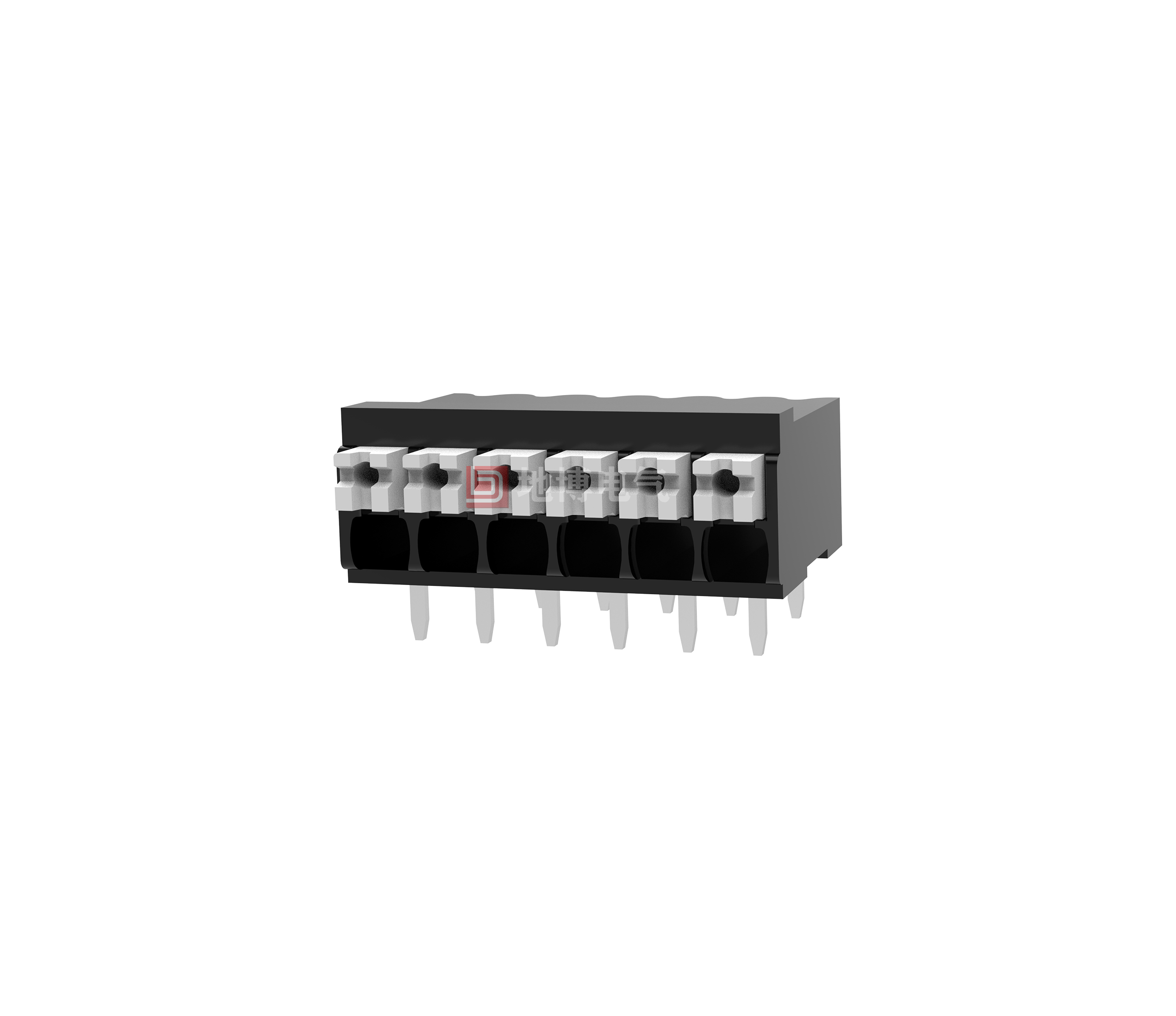

PCB terminal DB212R-3.5

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 160 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB212R, Pin pitch: 3.5 mm, Wiring method: straight spring connection, Mounting: THR soldering, Wire/PCB connection orientation: 0°, Colour: black, Pin arrangement: straight, Pin [P]: 2.6 mm, Number of pins per potential: 2, Packaging type: carton Colour: black, Pin arrangement: straight, Pin [P]: 2.6 mm, Number of pins per potential: 2, Packing type: carton. Suitable for CAT5

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑Colour coded joystick for intuitive use
☑Designed to be integrated into the SMT soldering process
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the equipment
☑Quick and easy testing with built-in test elements
☑Two soldering points per position to reduce mechanical stress on the soldering point
