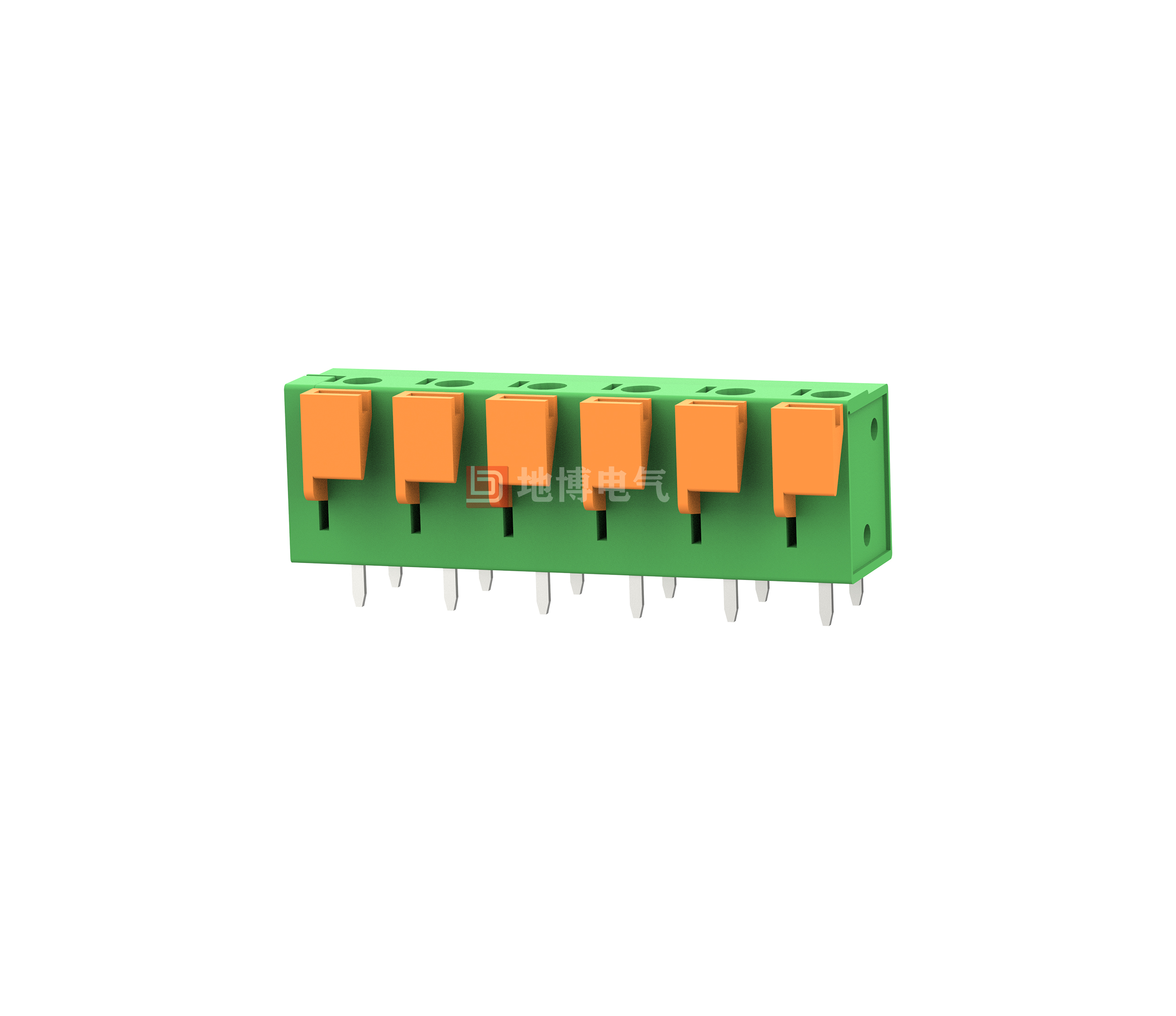

PCB terminal DB142V-7.62

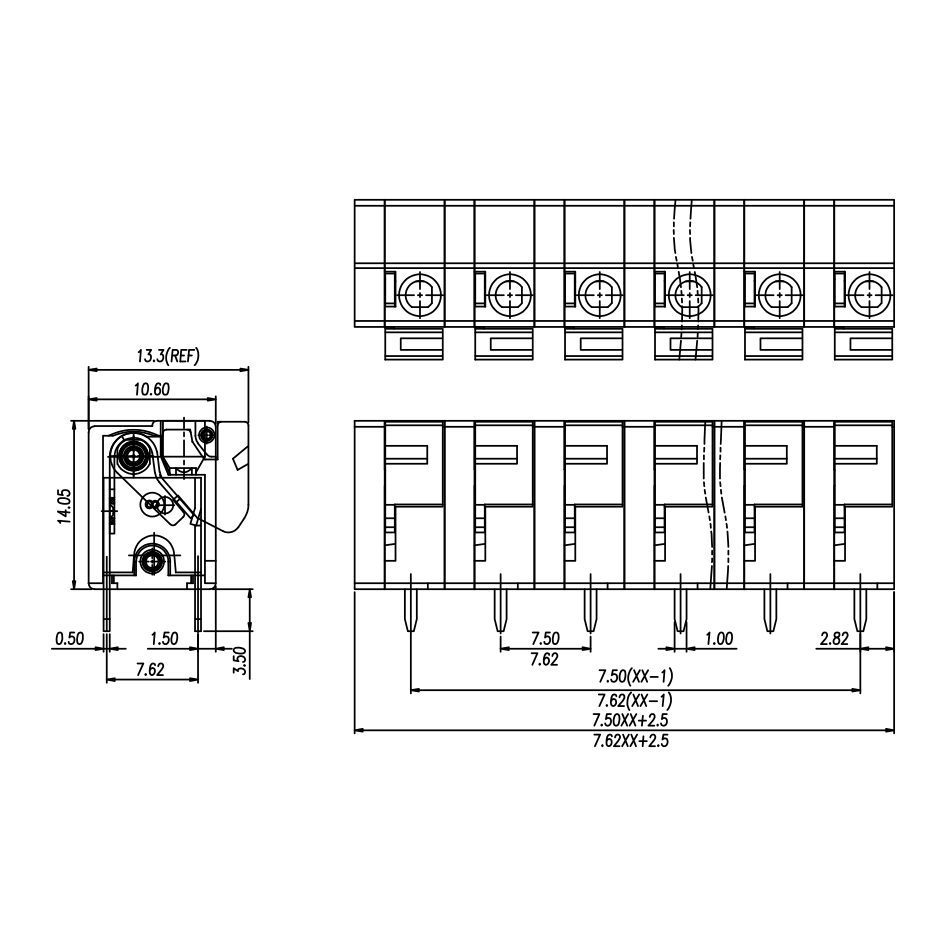

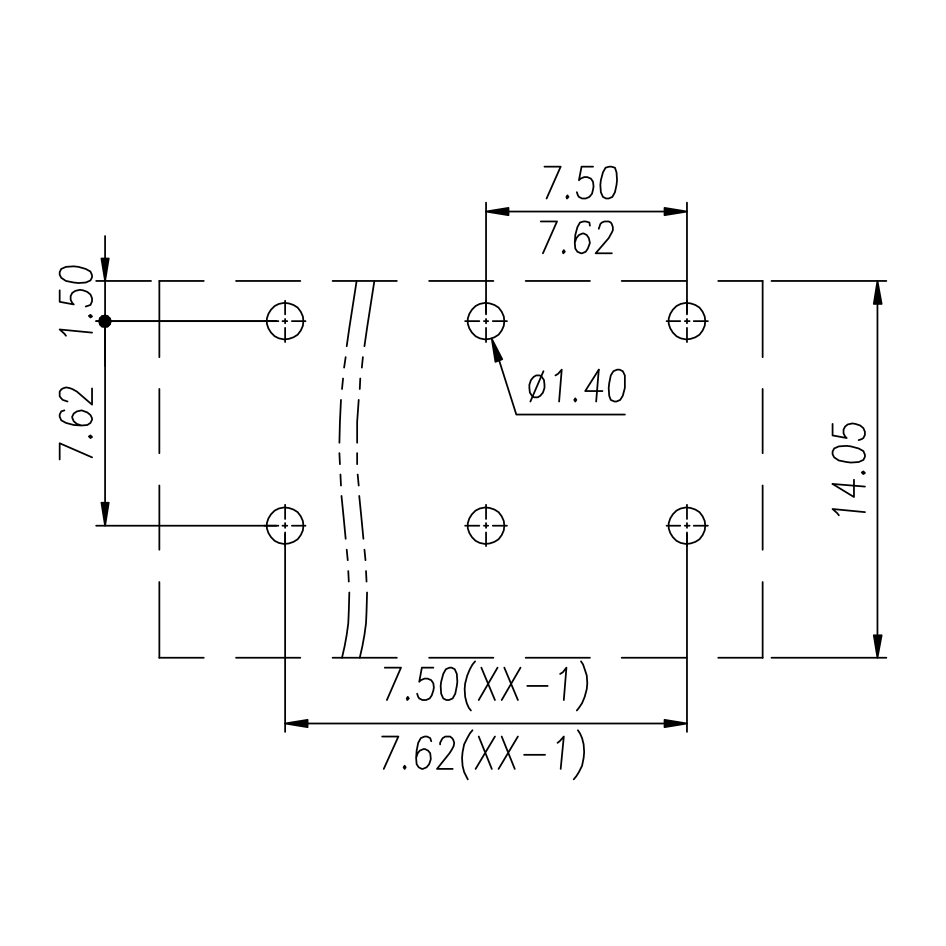

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 630 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB142V, Pin pitch: 7.62 mm, Wiring method: straight spring connection, Mounting: wave soldering, Orientation of lead/PCB connection: 90°, Colour: green, Pin arrangement: straight, Pin [P]: 3.4 mm, Number of pins per potential: 2 Colour: green, Pin arrangement: straight, Solder pin [P]: 3.4 mm, Number of pins per potential: 2, Packing type: carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑The combination of different digits is possible through the side latch
