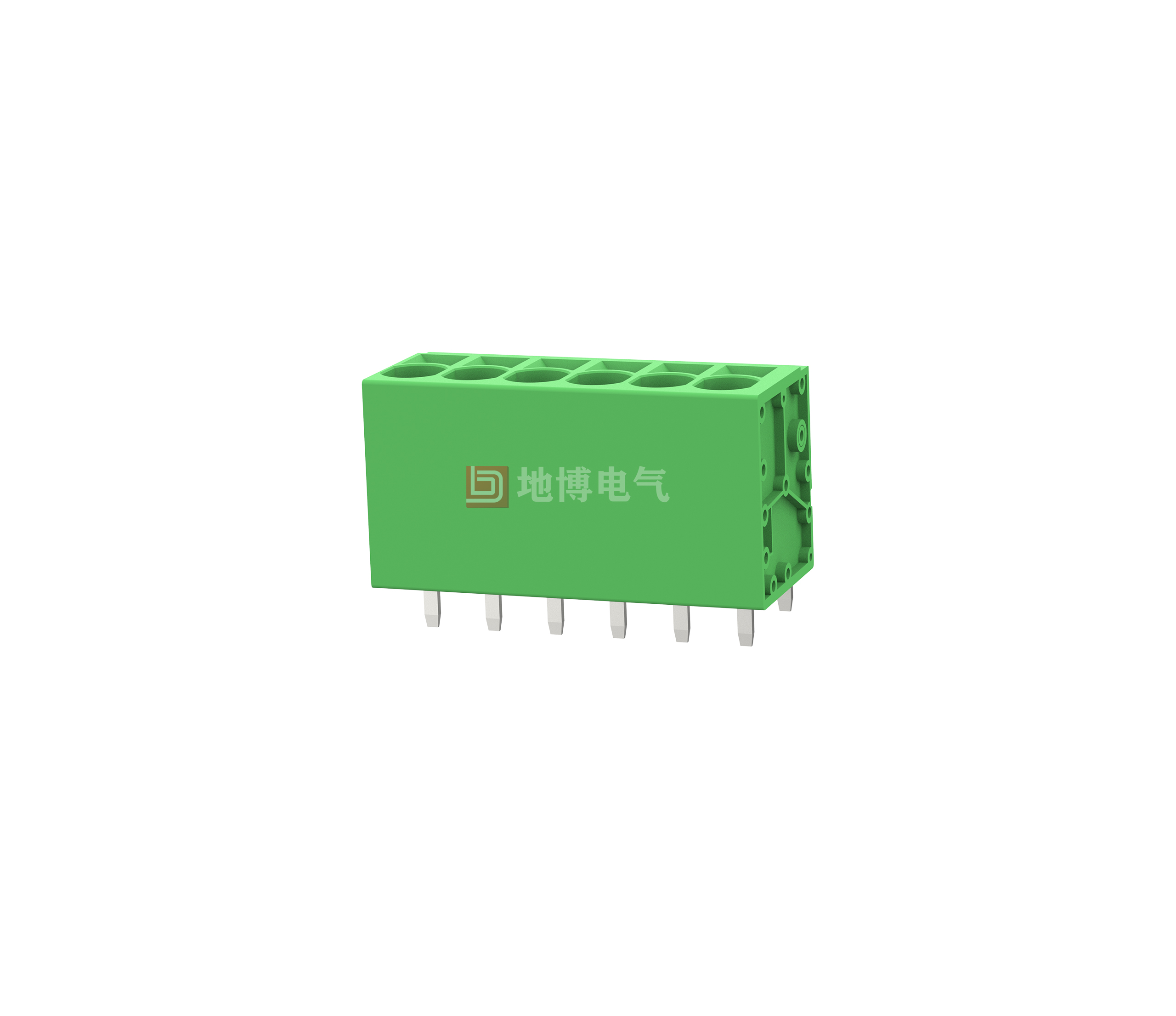

Fixed connectors, Rated current: 41 A, Rated voltage (III/2): 1000 V, Rated cross-section: 6 mm2, Number of potentials: 2-18, Number of rows: 1, Number of digits per row: 2-18, Series: DB271VA, Pin pitch: 7.5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: Green, Pin arrangement: Z-pin W, Solder pin [P]: 4.6 mm, Number of pins per potential: 2, Packing type: carton
☑ Time saving plug-in connection, no tools required
☑Set contact force ensures that the contacts remain stable over time
☑The pinch position can be opened with a set screwdriver for easy connection of the wires
☑Z-type solder pins are used and comply with the non-mandatory certification 600-V-UL
☑Vertical connection allows for multiple rows on the PCB
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||
Dimensional drawings |
PCB cut-out diagram |
