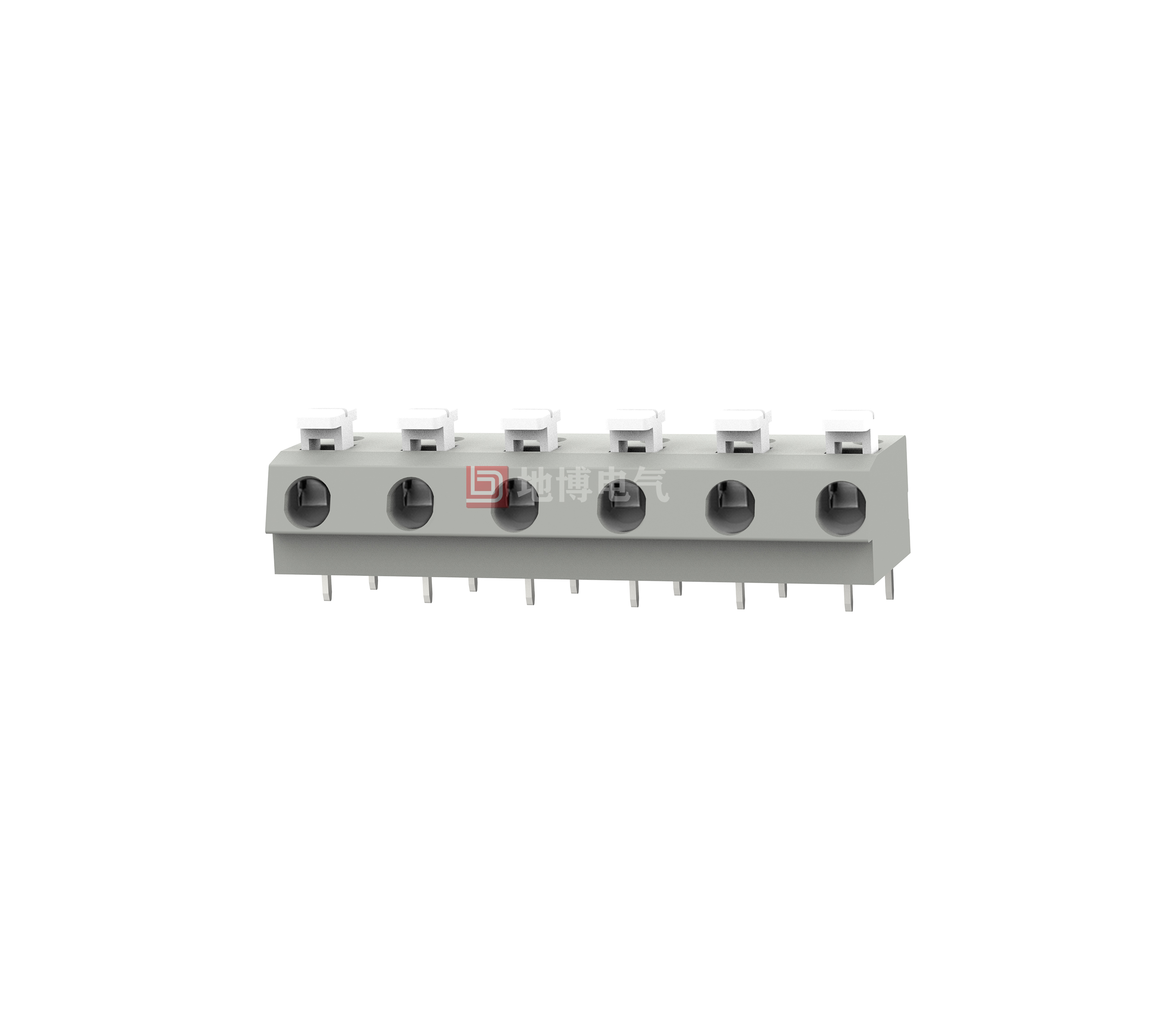

PCB terminal DB804-10.0

Fixed connectors, Rated current: 16 A, Rated voltage (III/2): 750 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-18, Number of rows: 1, Number of pins per row: 2-18, Series: DB804, Pin pitch: 10.0 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of Pins per Potential: 2, Packing Type: Carton

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑The combination of different digits is possible through the side latch

0
Views: 336
Contact usDownload PDF View 3D Download CAD
  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    12 10 10
    Wire Range [AWG]
    20-12
    Dielectric Voltage-Withstand
    1.6KV

    Technical specifications

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.25-2.5

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    10.0/2-18
    Stripping Length [mm]
    10-11
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*0.6
    PCB Hole Diameter [mm]
    Ø1.3

    Dimensional drawings

    PCB cut-out diagram
