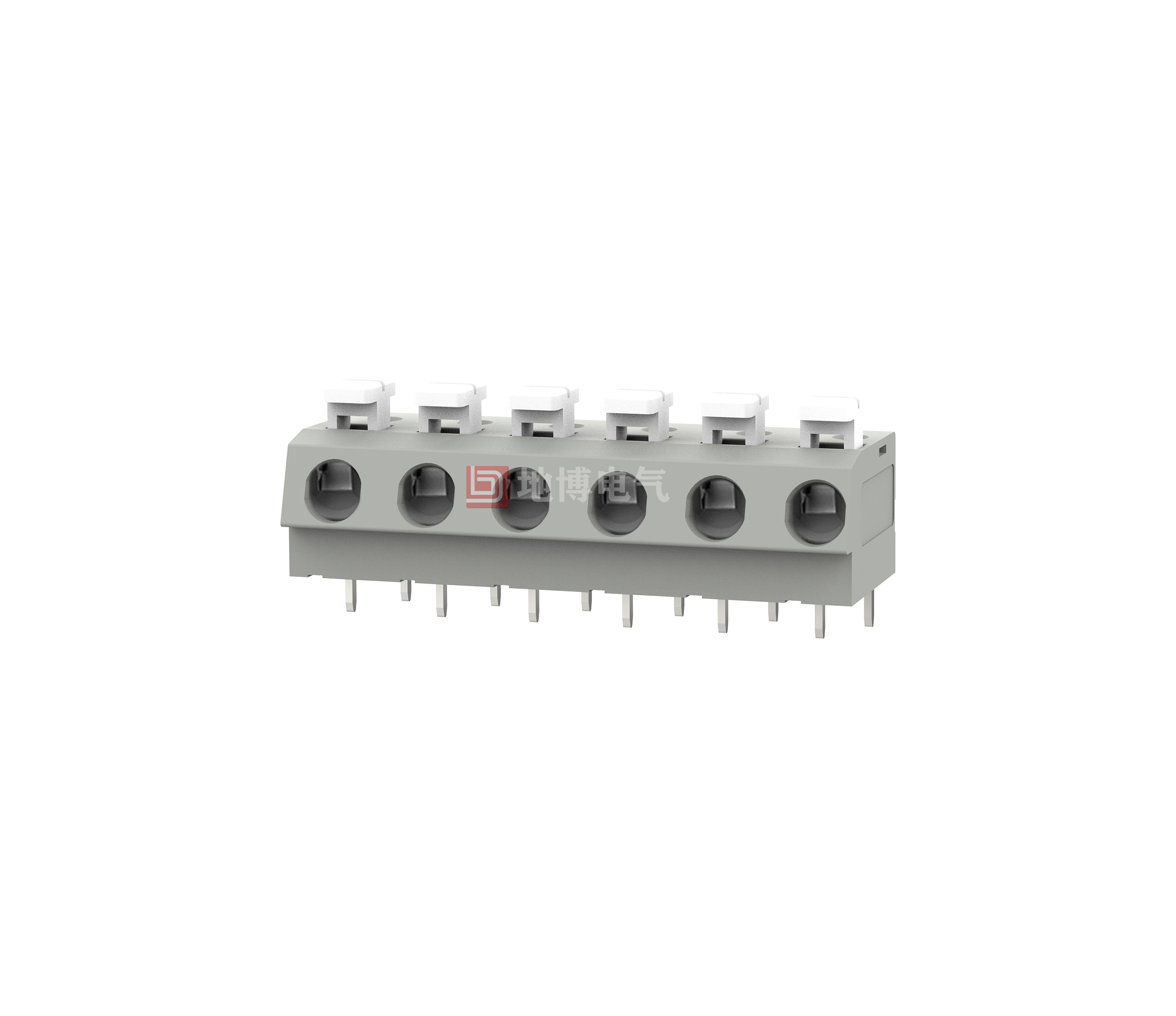

PCB terminal DB804-7.5

Fixed connectors, Rated current: 16 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-18, Number of rows: 1, Number of pins per row: 2-18, Series: DB804, Pin pitch: 7.5 mm, Wiring method: straight spring connection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑The combination of different digits is possible through the side latch
