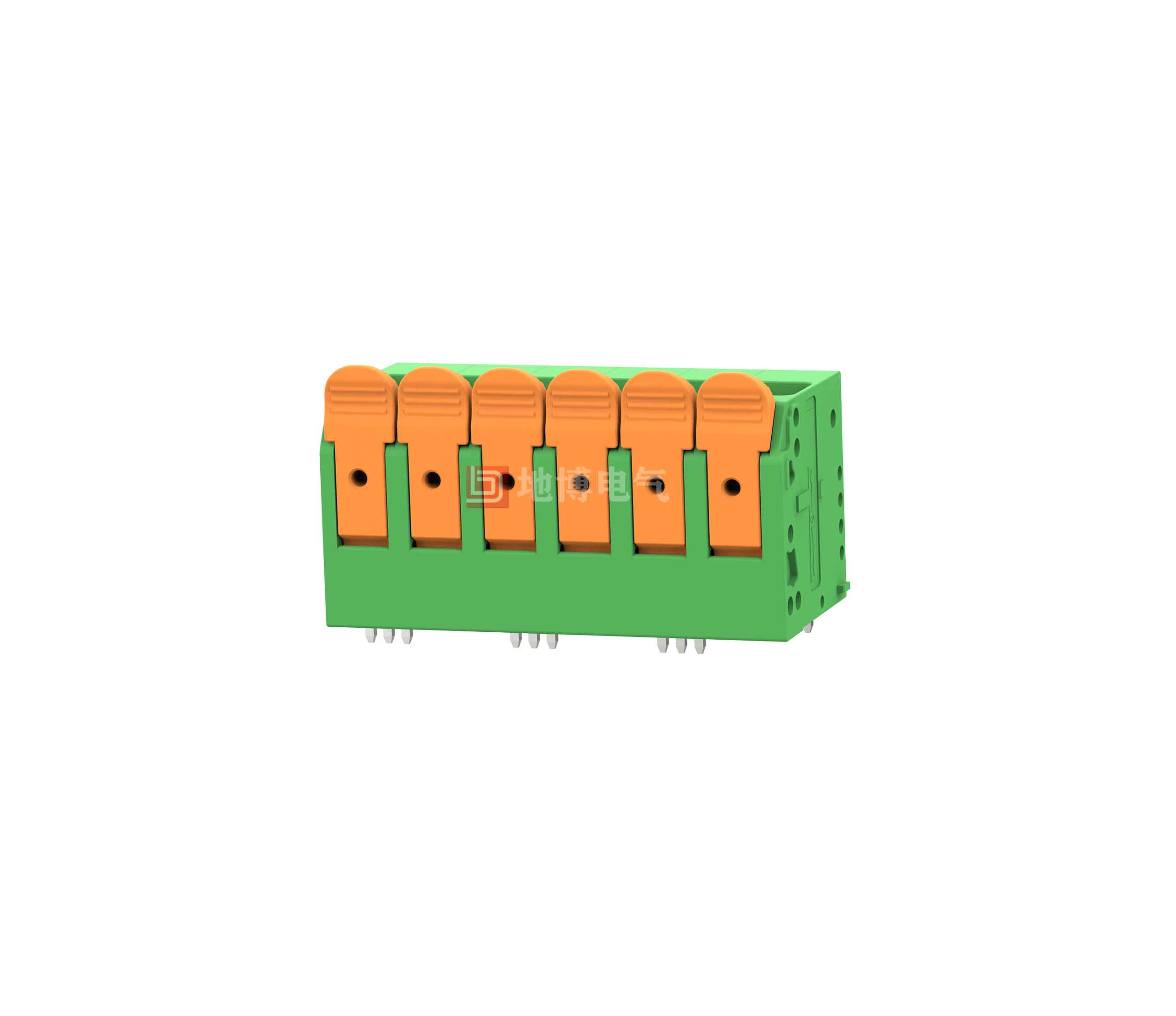

PCB terminal DB2416VB-10.0

Fixed connectors, Rated current: 76 A, Rated voltage (III/2): 1000 V, Rated cross-section: 16 mm2, Number of pins: 2-12, Number of rows: 1, Number of pins per row: 2-12, Series: DB2416VB, Pin spacing: 10 mm, Wiring method: straight connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: green Pin Arrangement: Z-Pin W, Solder Pin [P]: 3.6 mm, Packing Type: Carton

Advantages

☑ Tool-less lever saves a lot of time when connecting and releasing wires with and without sleeves
☑The lever position is clearly visible and provides reliable feedback on whether the wiring area is open or closed
☑Set contact force ensures that the contacts remain stable over time
☑Saving time by closing the lever to enable plug and play connections
☑Colour coded pushbuttons for intuitive convenience
