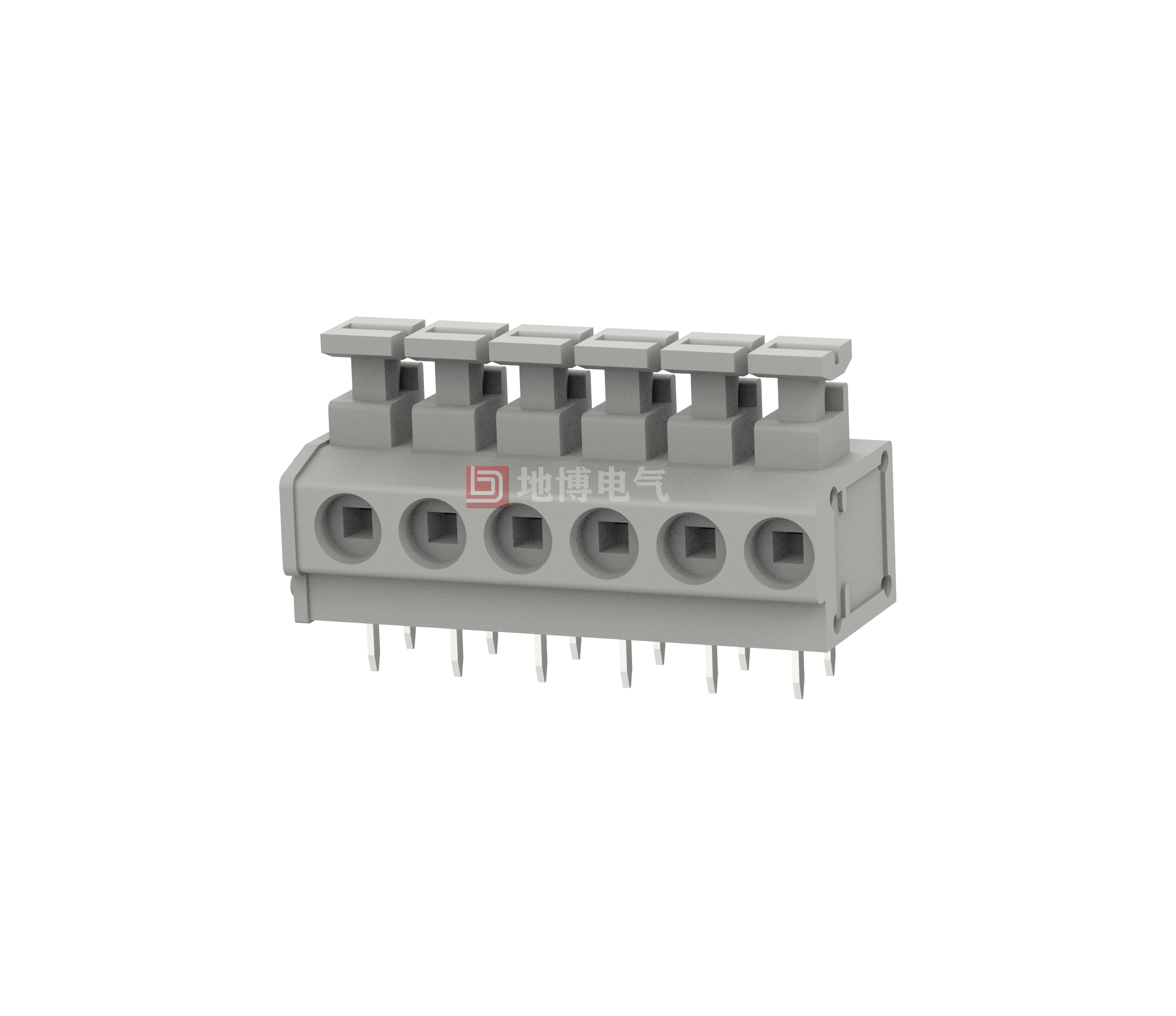

PCB terminal DB260-5.0

Fixed connectors, Rated current: 15 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB260, Pin pitch: 5.0 mm, Wiring: Straight spring connection, Mounting: Wave soldering, Wire/PCB connection orientation: 0°, Colour: green, Pins alignment: Straight, Pins [P]: 3.4 mm, Number of pins per potential: 2 Pin Arrangement: Straight, Pin [P]: 3.4 mm, Number of pins per potential: 2, Packing type: Carton

Advantages

☑ Time saving plug-in connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑The wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑Two solder pins to reduce mechanical stress on the solder points
☑Lock on the side allows the combination of different digits
☑Vertical connection allows for multiple rows on the PCB
