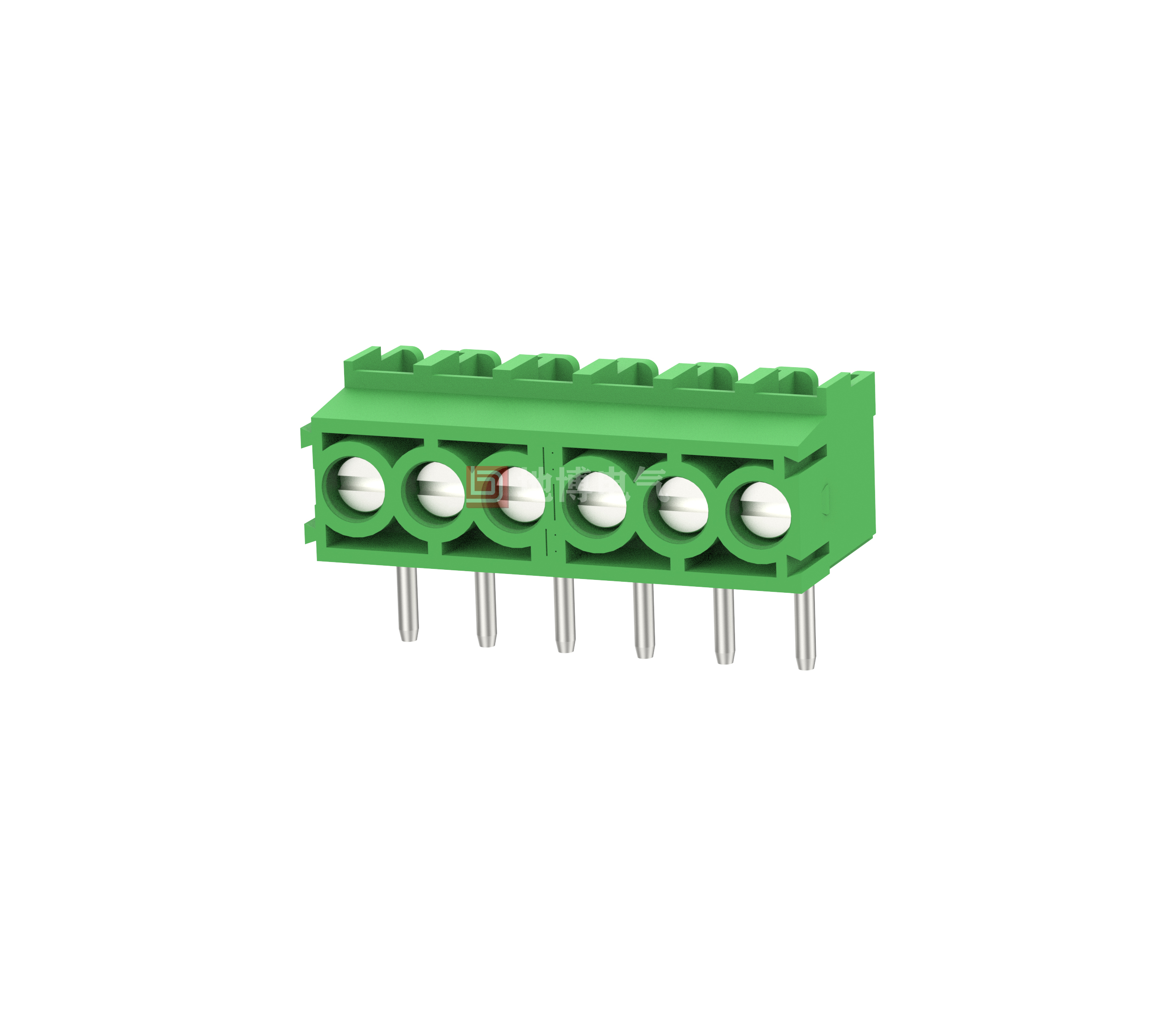

PCB terminal DB302R-3.5

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 200 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB302R, Pin pitch: 3.5 mm, Wiring: screw connection with wire protection, Mounting: wave soldering, Orientation of wire/PCB connection: 90°, Colour: green, Pin arrangement: Straight alignment, Pin [P]: 4.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑Universal connection for worldwide use
☑Maximum contact force, low temperature rise
☑Square connector with high wiring capacity
☑Allows connection of two stranded wires
☑Various bit combinations possible via side latches

0
Views: 5,227
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    22~14
    Dielectric Voltage-Withstand
    2.5KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 200 400
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø0.85
    PCB Hole Diameter [mm]
    Ø1.1

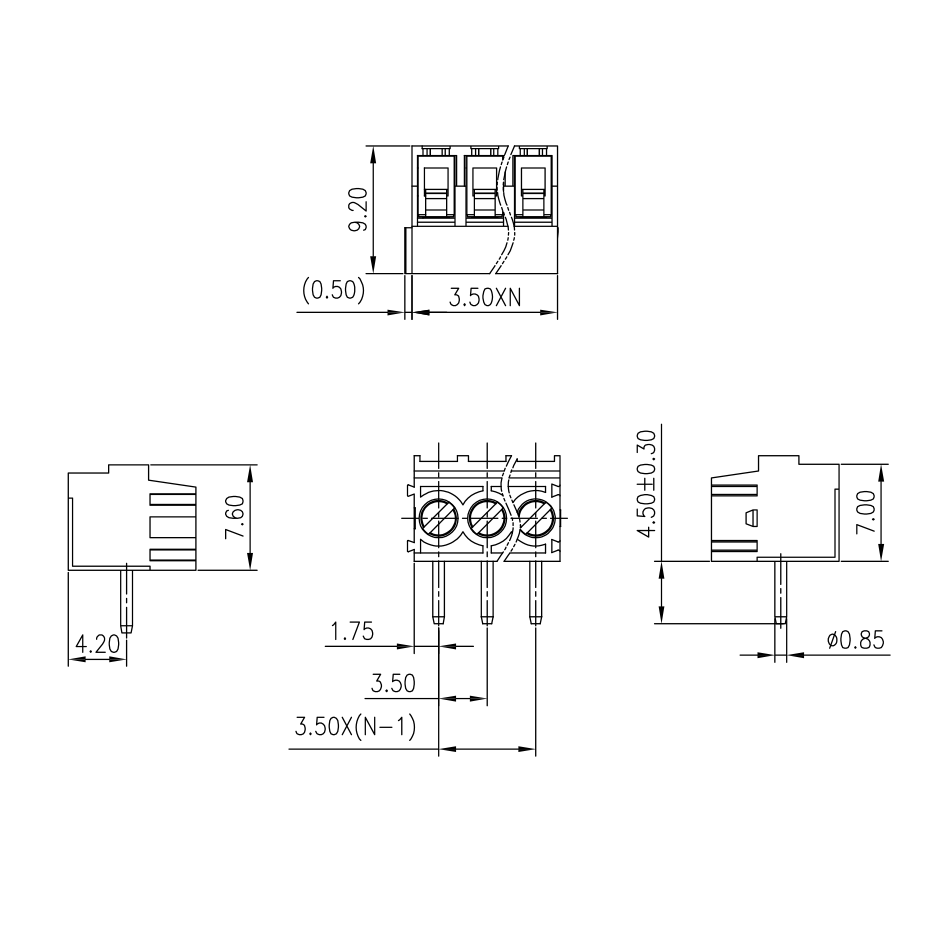

    Dimensional drawings

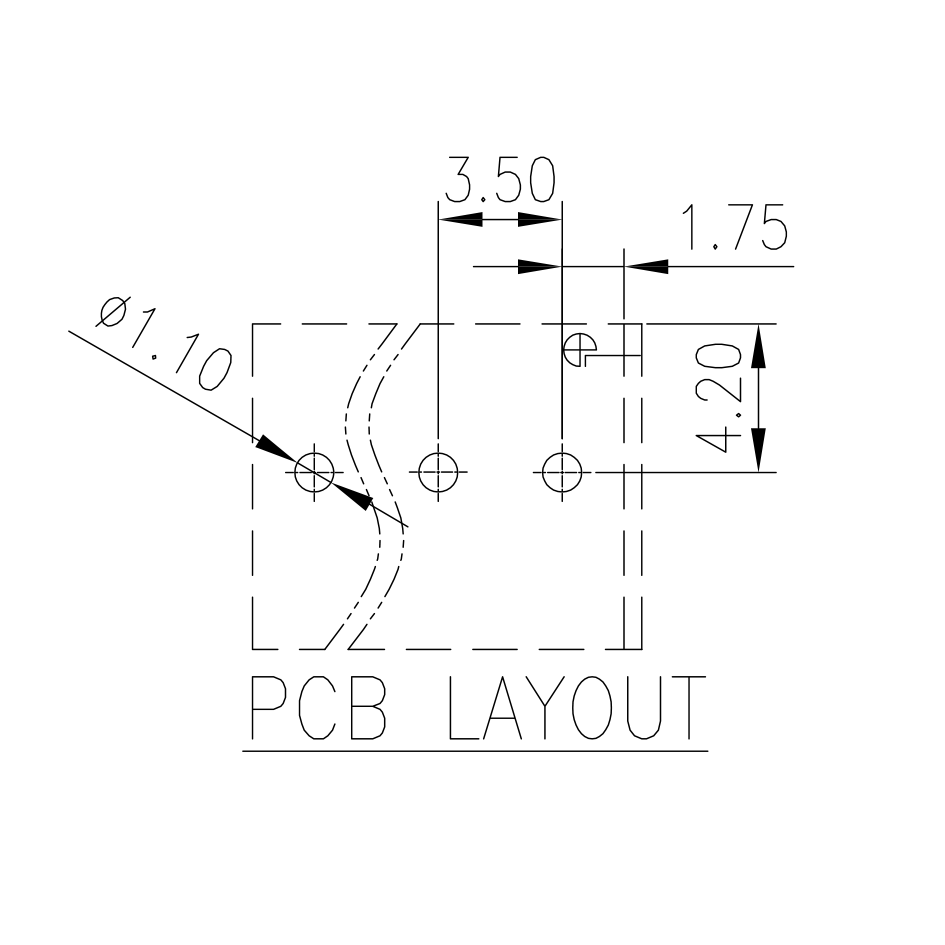

    PCB cut-out diagram
