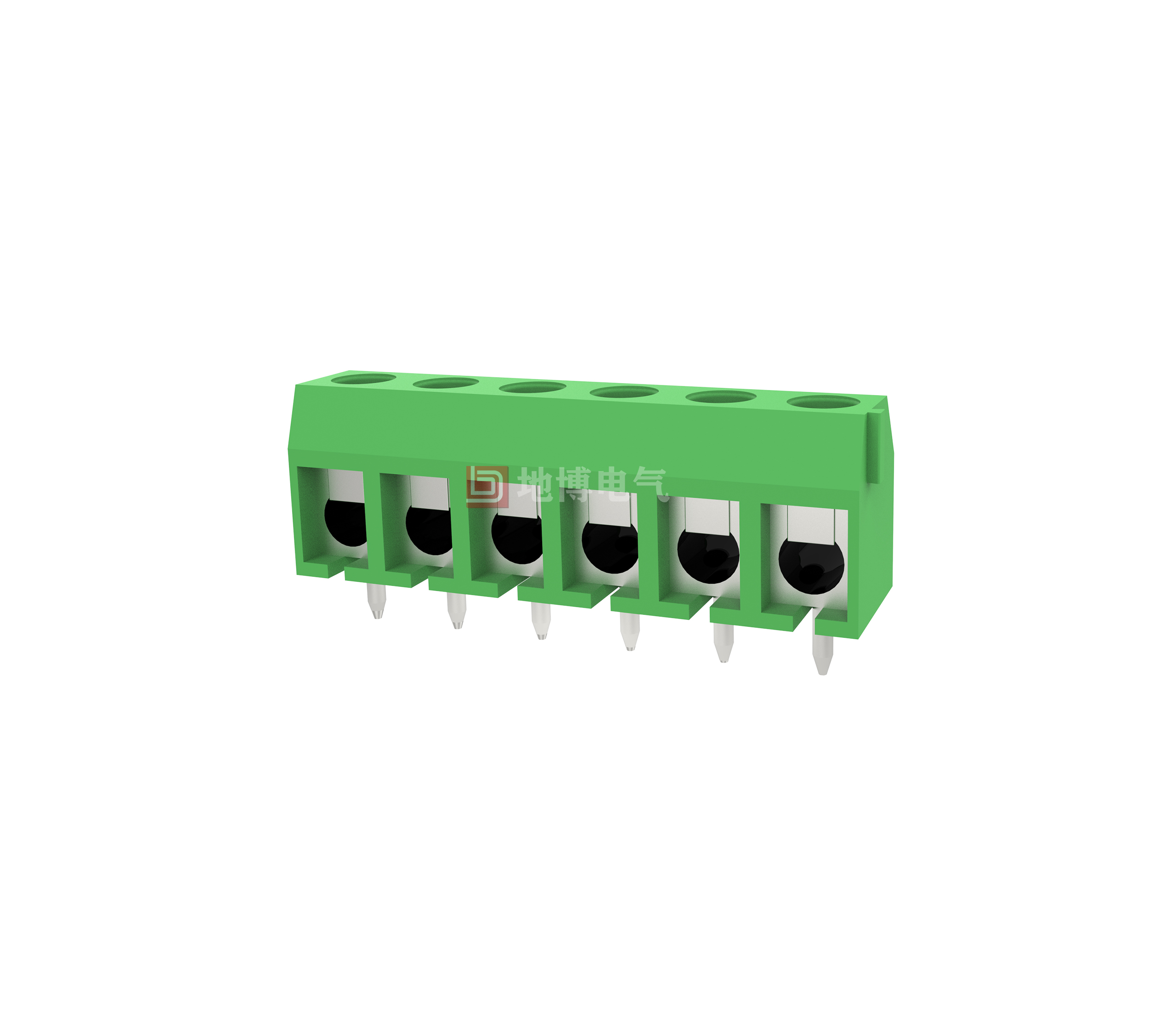

Fixed terminal blocks, nominal operating current: 17.5A, rated voltage (III/2) 250V, nominal cross-section: 1.5mm², number of potentials: 2-24, number of rows: 1, number of positions per row: 2-24, product series: DB301, pin pitch: 5 mm, wiring: screw connection with wire protection, mounting: wave soldering, orientation of wire/PCB connection: 0°, colour : Blue, Pin arrangement: Straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packaging type: Carton. When using cold crimp tips, the maximum voltage of 250 V is only reached if the overvoltage type/contamination class II/2 is met.
| Use Group |
|
||||
|---|---|---|---|---|---|
| Rate Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Wire Range [AWG] |
|
||||
| Dielectric Voltage-Withstand |
|
||||
| Overvoltage Category |
|
||||
|---|---|---|---|---|---|
| Contamination Class |
|
||||
| Rated Voltage [V] |
|
||||
| Rated Current [A] |
|
||||
| Impulse withstand voltage [KV] |
|
||||
| Conductor cross section [mm²] |
|
||||
| Insulation Material |
|
||
|---|---|---|---|
| Flame relardant rating |
|
||
| Conductor Material |
|
||
| Plating of conductor surface |
|
||
| Pitch/Poles [mm]/[P] |
|
||
|---|---|---|---|
| Stripping Length [mm] |
|
||
| Screw/Torque(Max)[N.m] |
|
||
| Operating temperature [℃] |
|
||
| Soldering temperature |
|
||
| Pin dimensions [mm] |
|
||
| PCB Hole Diameter [mm] |
|
||

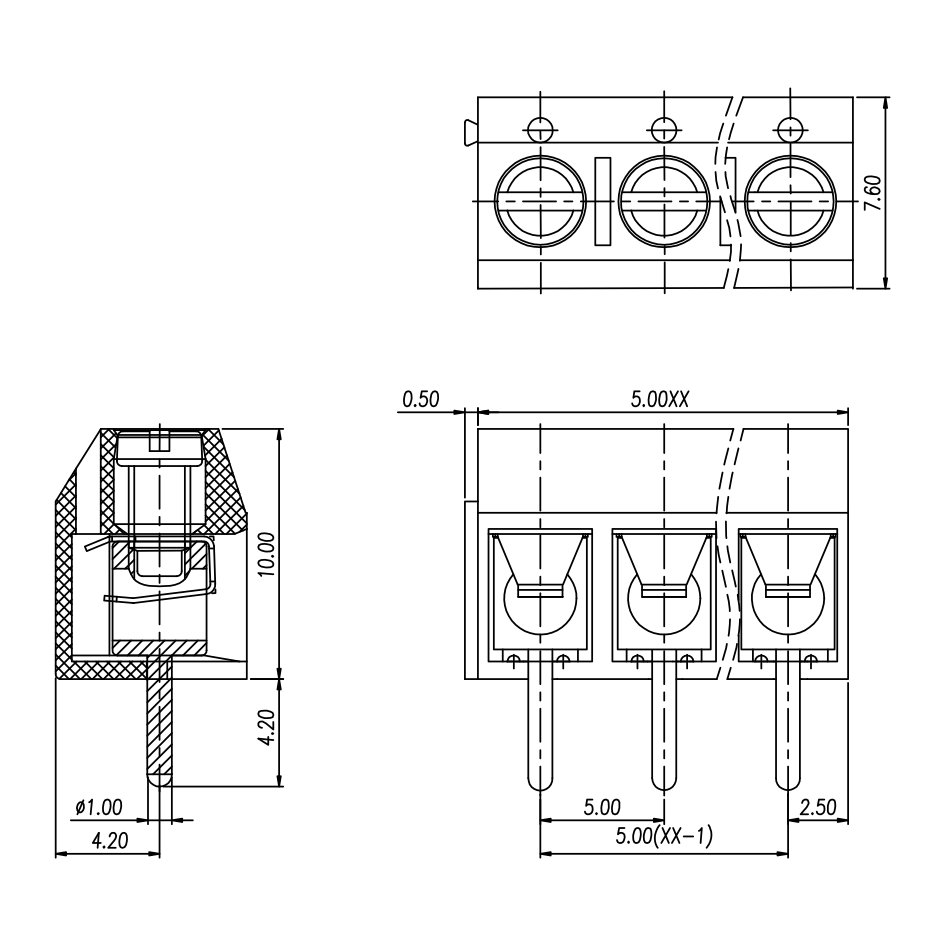

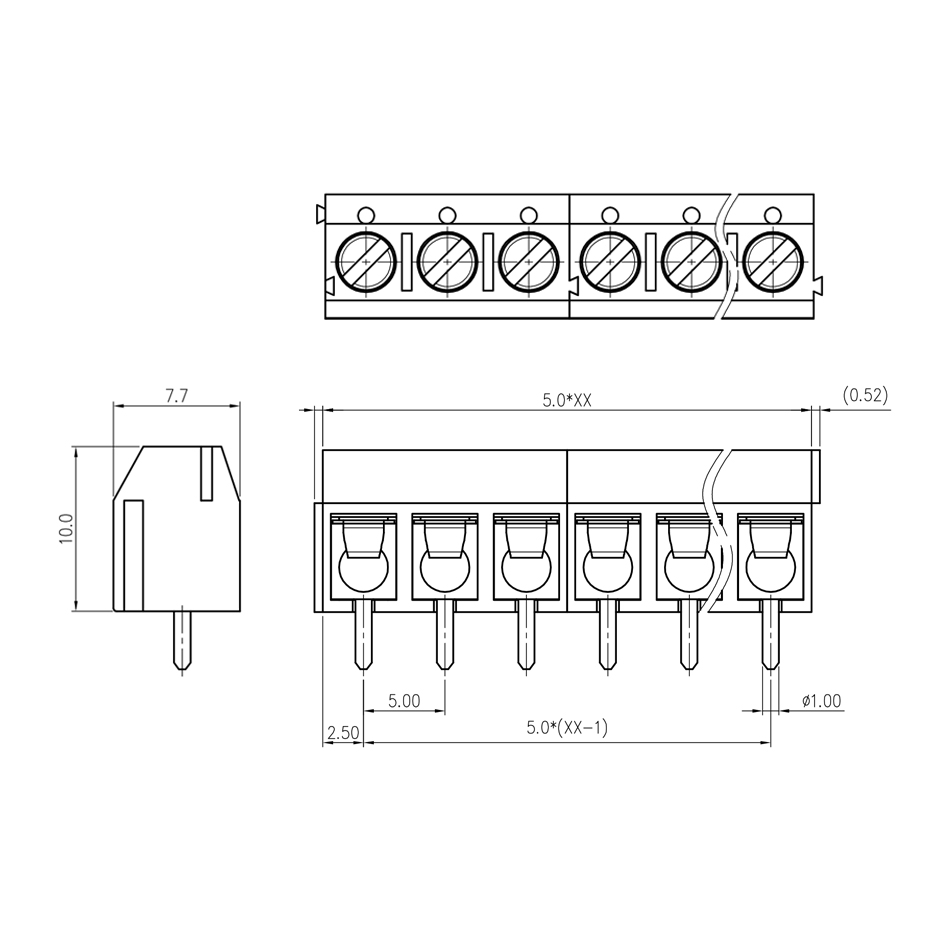

Dimensional drawings
|

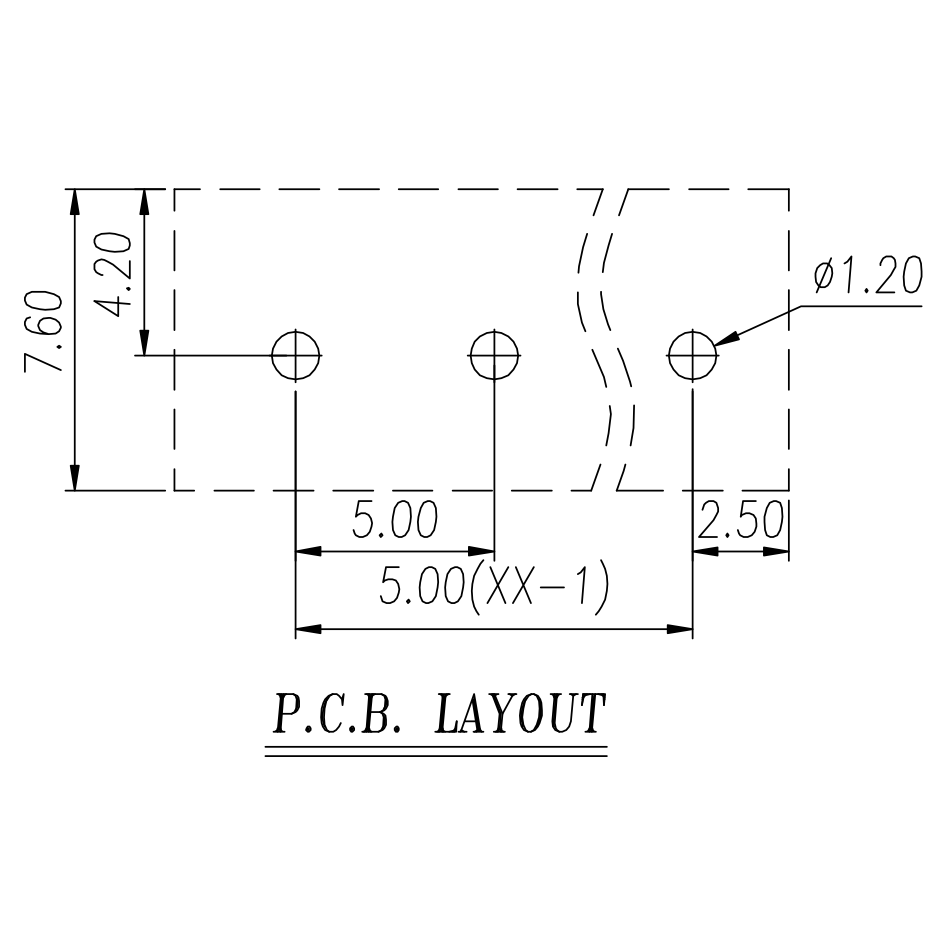

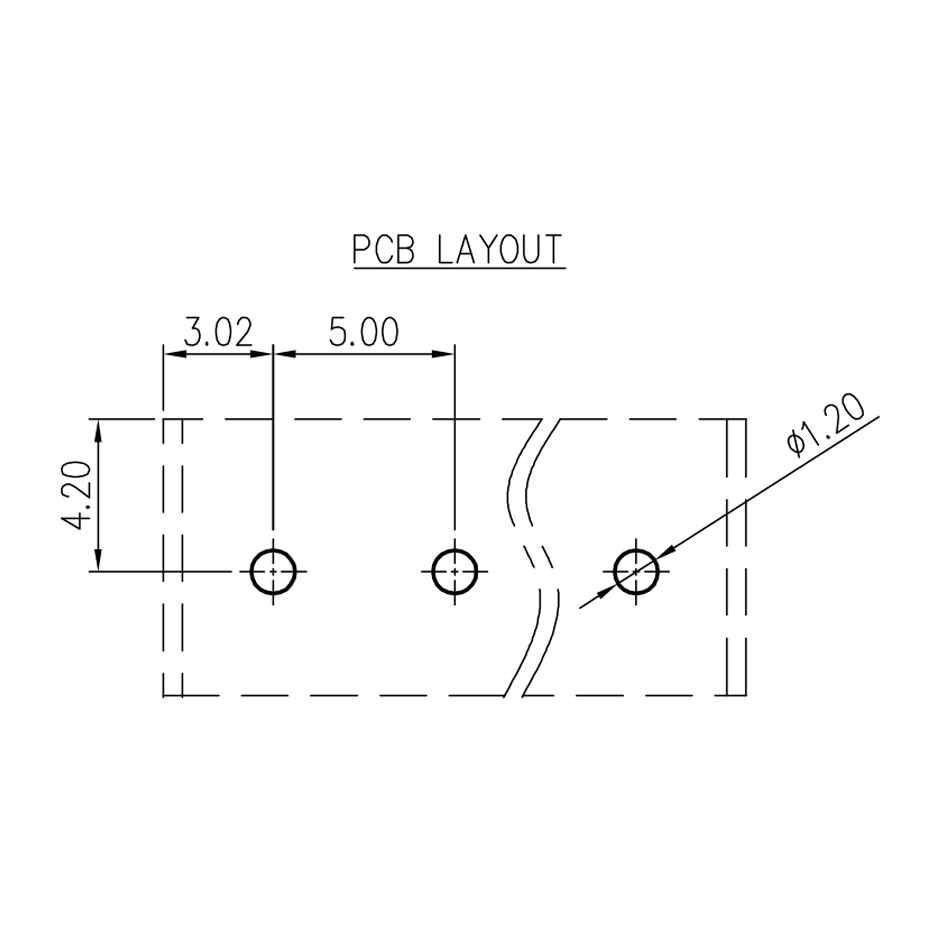

PCB cut-out diagram
|
