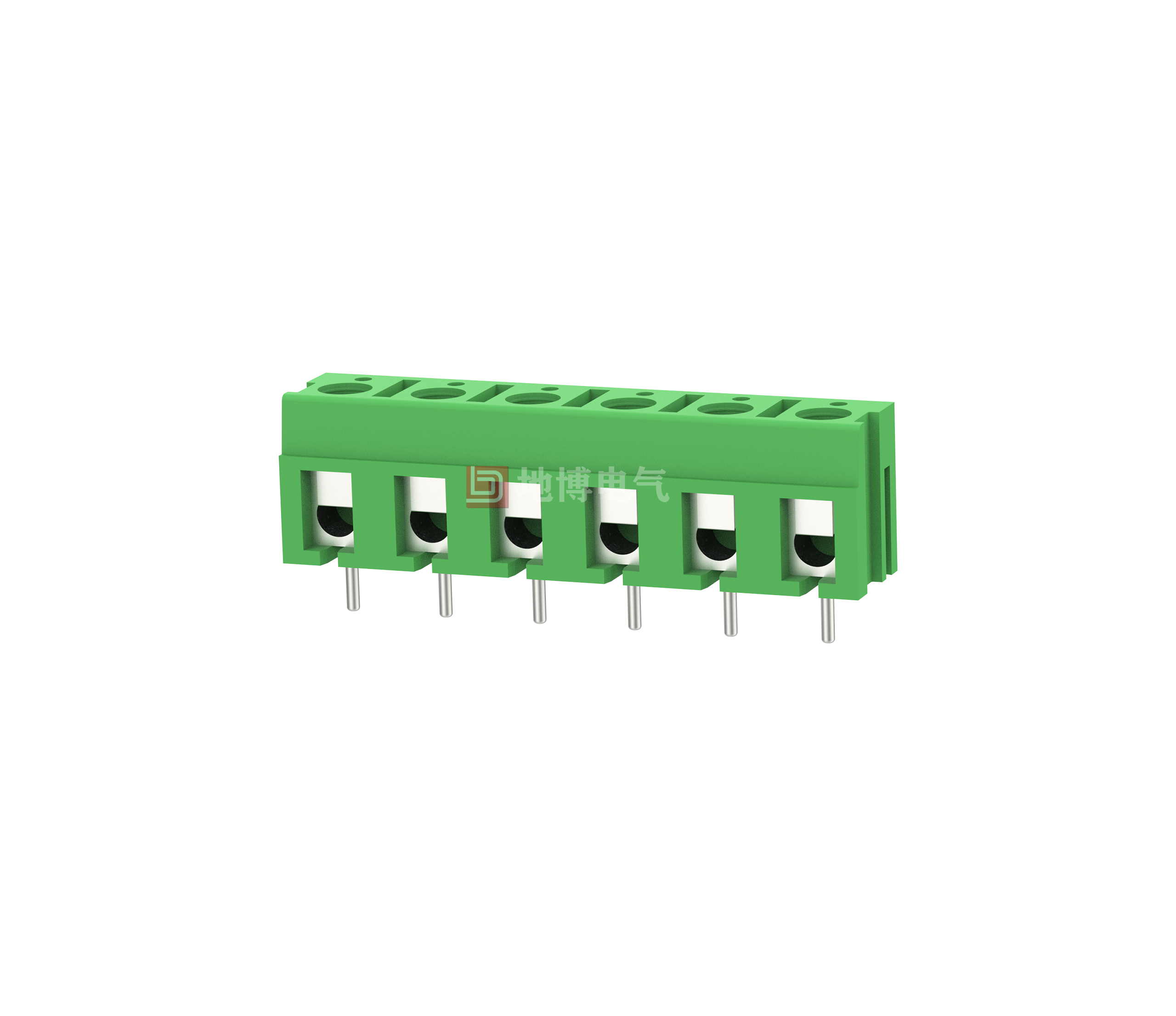

PCB terminals DB300V-7.5

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 250 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB300V, Pin pitch: 7.5 mm, Wiring: screw connection with wire protection, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pin arrangement: Straight alignment, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force, low temperature rise
☑ Circular connectors for stable wiring
☑ Allows the connection of two stranded wires
☑ The latch on the side allows the combination of different digits, ensuring a high degree of flexibility in equipment design
0
Views: 10,515
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    250 - 250
    Rated Current [A]
    16 - 10
    Wire Range [AWG]
    22~14
    Dielectric Voltage-Withstand
    1.5KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~2.5



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.5/2~24
    Stripping Length [mm]
    5~6
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    Ø1.0
     PCB Hole Diameter [mm]
    Ø1.2

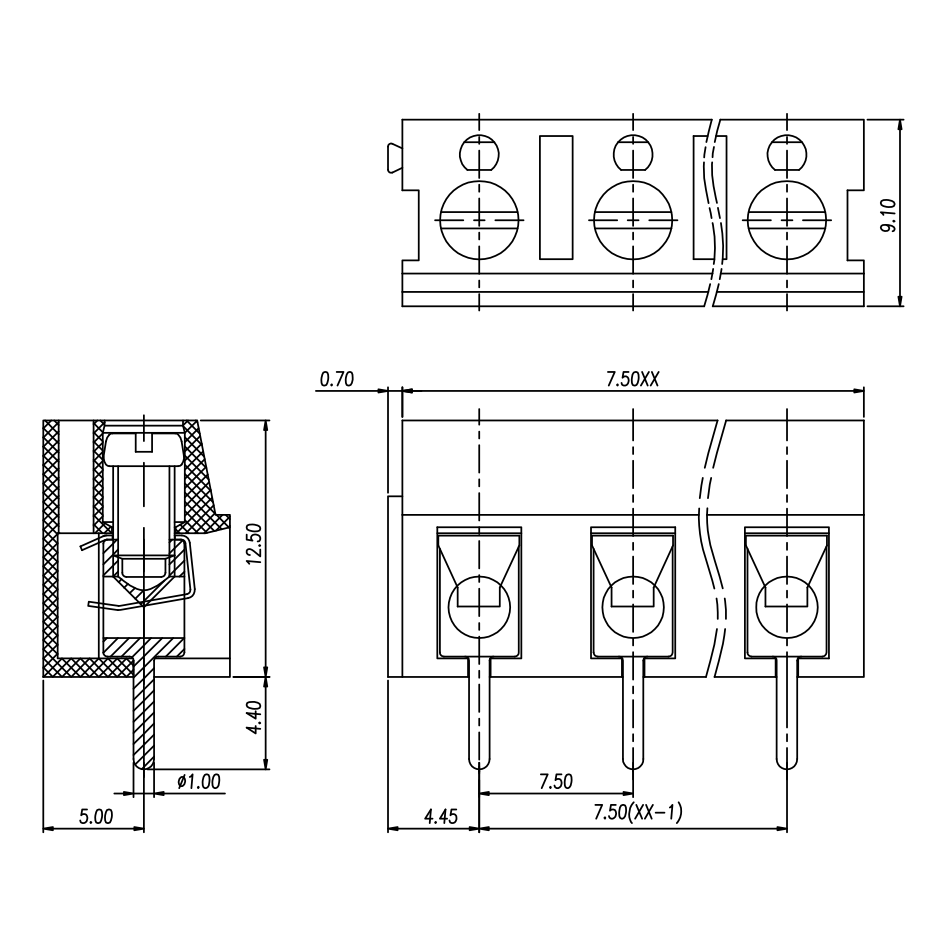

    Dimensional drawings

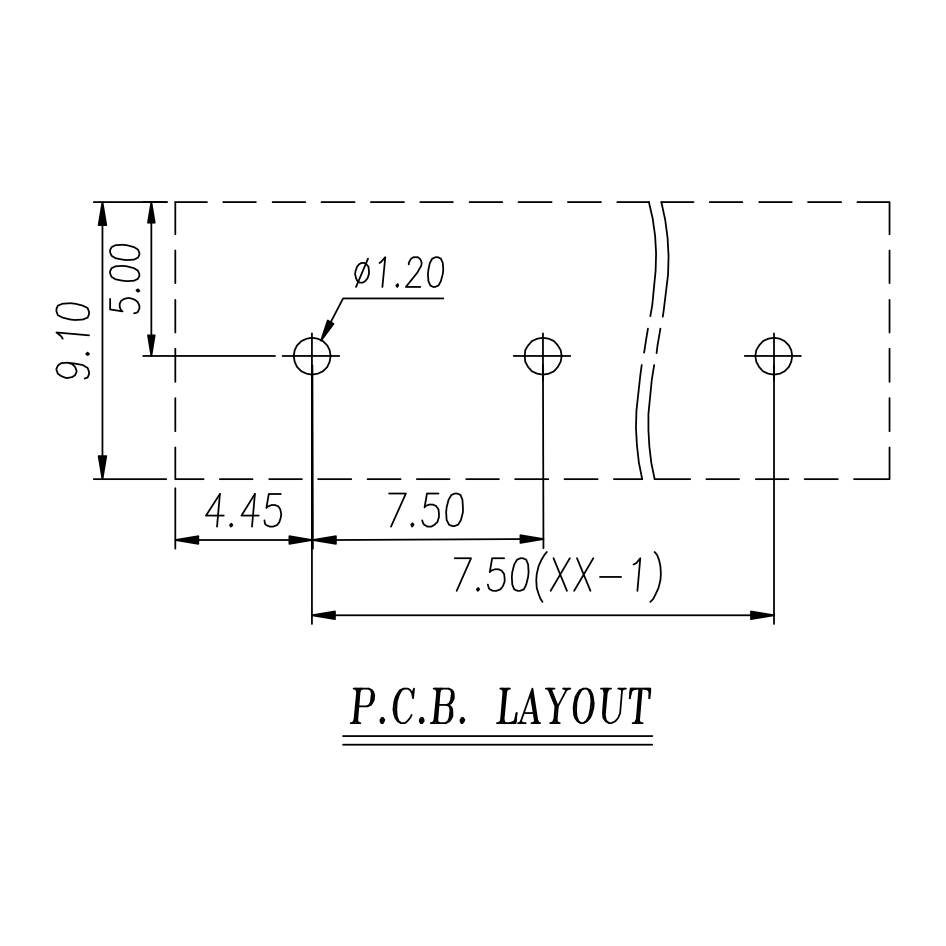

    PCB cut-out diagram
