Home / Product / Rail terminal block / GUV2.5-202-PE

GUV2.5-202-PE

0
Views: 5,660
Contact usDownload PDF View 3D Download CAD

  • Technical data-UL/CUL



     Wire gauge range
    26-12AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
     Impulse withstand voltage
    8KV



    Conductor cross section



     Soild
    0.2-4mm²
    Conductor cross section flexible
    0.2-2.5mm²
    Conductor cross section flexible with ferrule
    0.2-2.5mm²



    Material data



     Insulating material
    PA66
     Flammability rating according to UL94   V0
     Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Length/Height/Thickness
    68.2mm/45.9mm/5.2mm
     Stripping length
    8-10mm
    Certification
    /

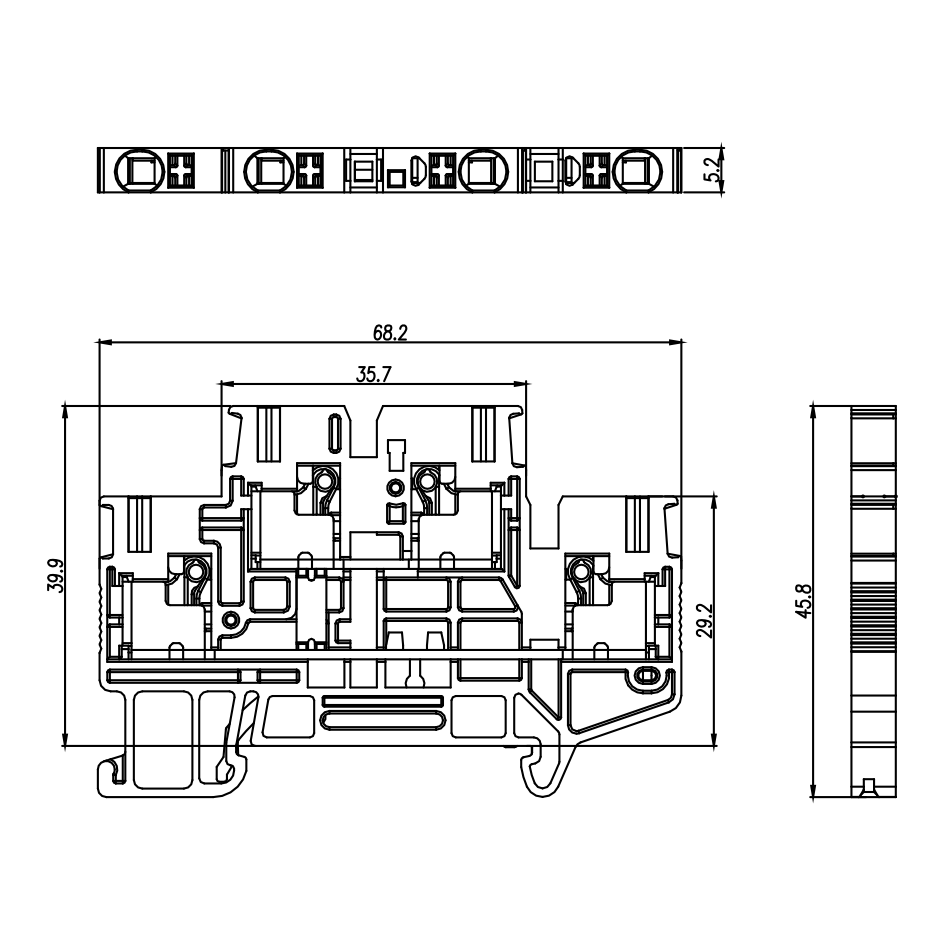

    Dimensional drawing
