GUV1.5-202

0
Views: 629
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



     Use group
    B C D
     Rated voltage
    300V 300V 600V
    Rated current
    15A 15A 5A
    Wire gauge range
    26-14AWG



    Technical data-IEC



     Overvoltage category
    III
    Pollution degree
    3
    Rated voltage
    500V
    Rated current
    16A
    Impulse withstand voltage
    6KV



    Conductor cross section



     Soild
    0.2-1.5mm²
    Conductor cross section flexible
    0.2-1.5mm²
    Conductor cross section flexible with ferrule
    0.2-1mm²



    Material data



    Insulating material
    PA66
    Flammability rating according to UL94 V0
    Contact material
    Copper alloy
    Surface characteristics Tin-plated



    Other data



     Length/Height/Thickness
    65.6mm/41.1mm/3.5mm
     Stripping length
    8-10mm
    Certification
    /

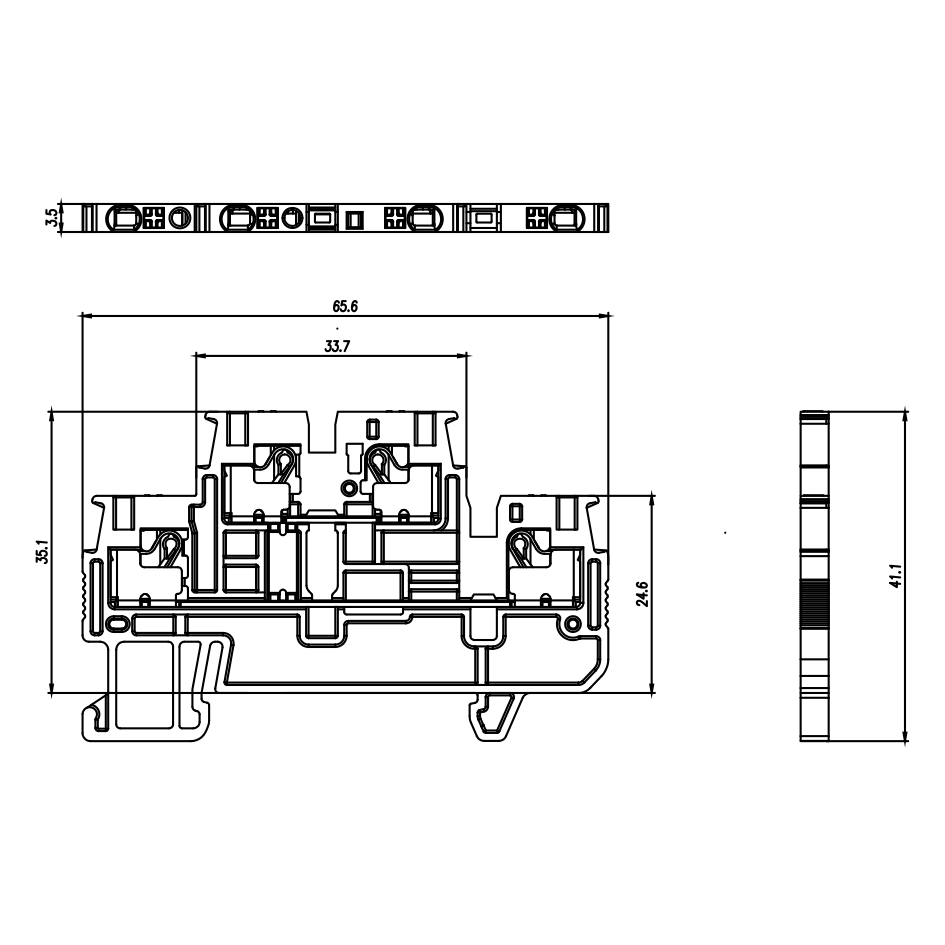

    Dimensional drawing
