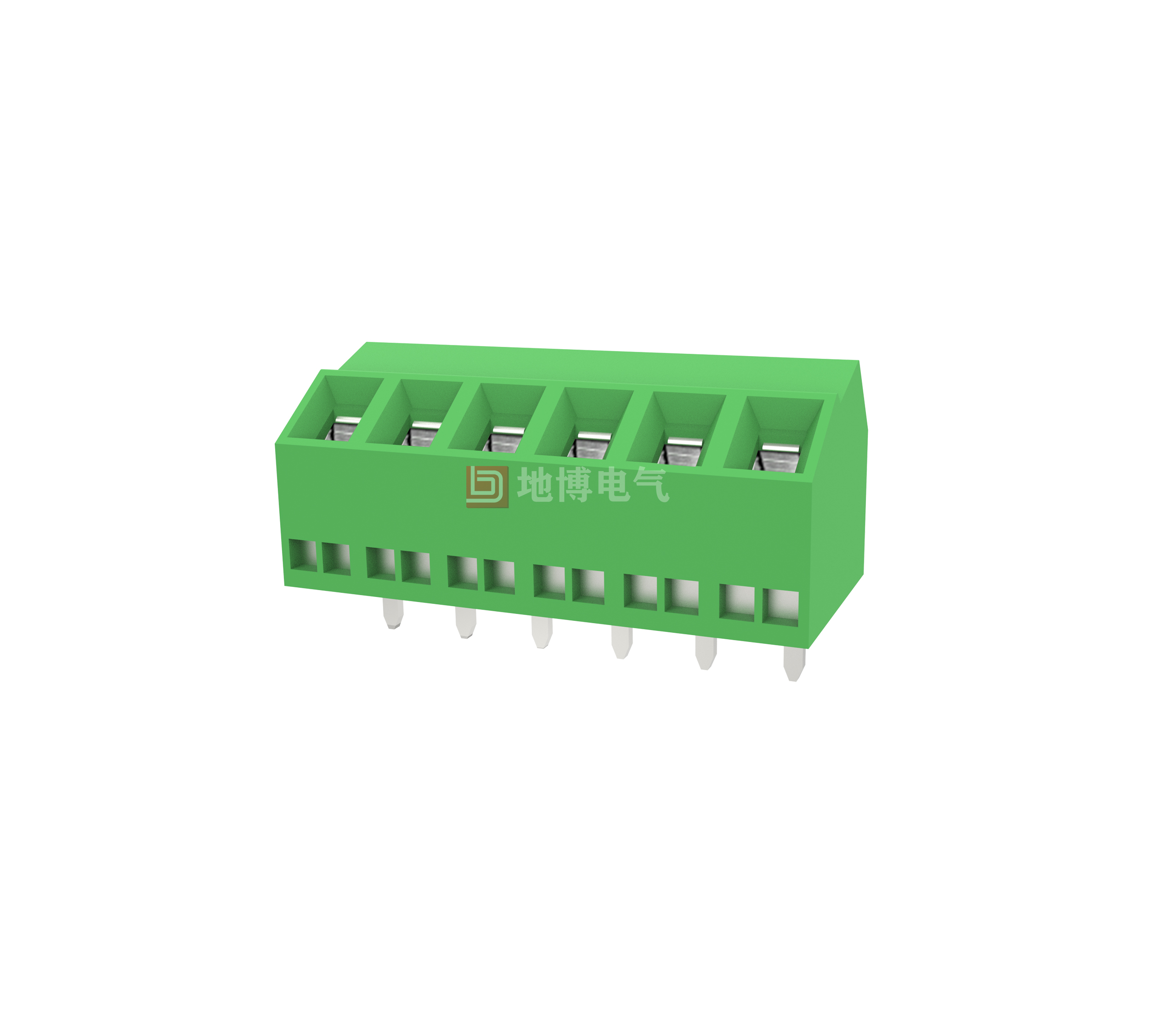

PCB terminal DB127S-3.5

Fixed connectors, Nominal operating current: 10 A, Rated voltage (III/2): 200 V, Nominal cross-section: 1 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB127S, Pin pitch: 3.5 mm, Wiring: Screw connection with crimp, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection Orientation: 35°, Colour: green, Pin arrangement: straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Bend connection allows for multiple rows on the PCB
☑ Extremely small design for each wire cross-section
0
Views: 2,035
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    26~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 200 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.2~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2~24
    Stripping Length [mm]
    5
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.5*0.8
    PCB Hole Diameter [mm]
    Ø1.1



    Dimensional drawings





    PCB cut-out diagram
