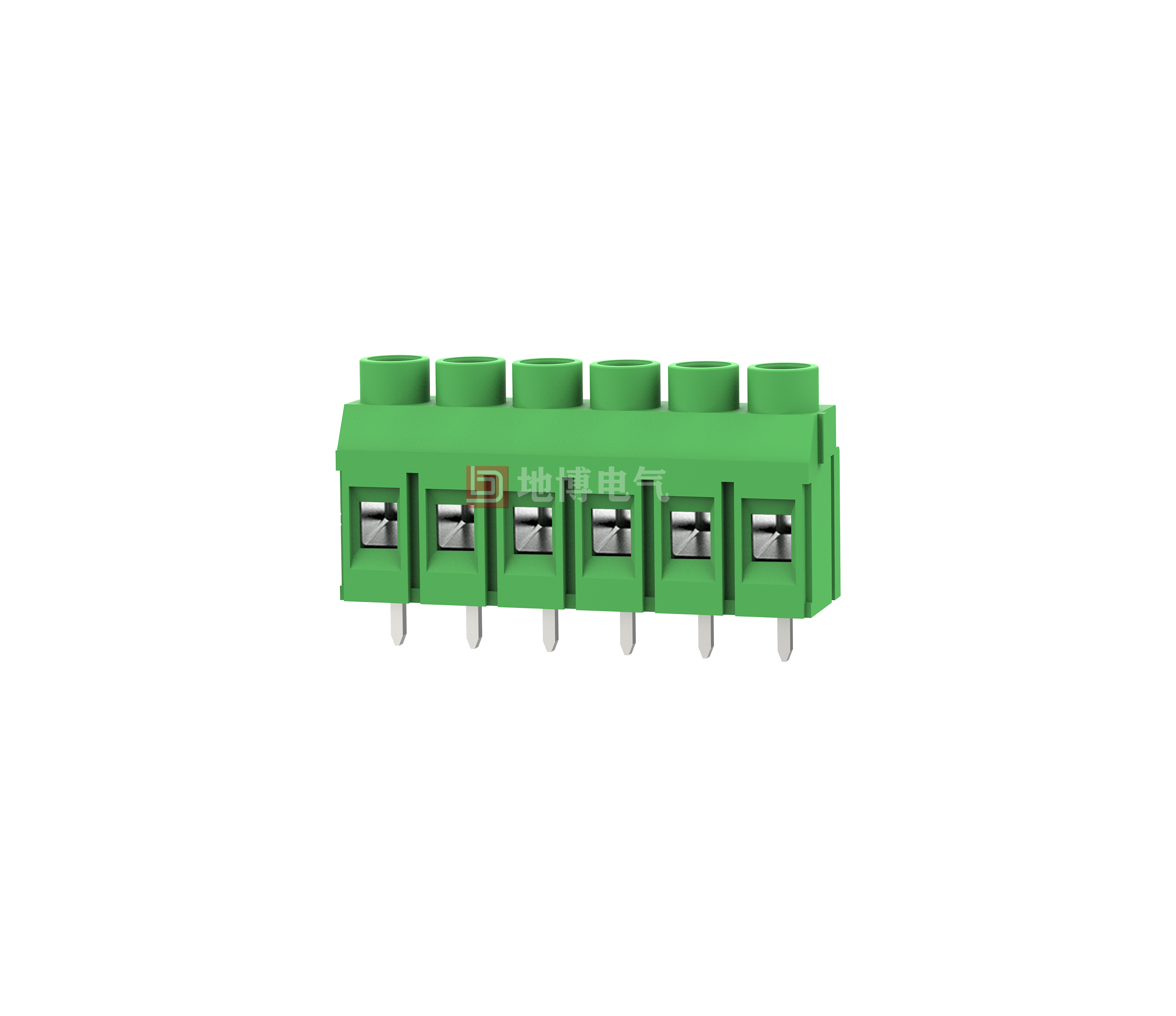

PCB terminal DB910-7.5

Fixed connectors, Nominal operating current: 32 A, Rated voltage (III/2): 630 V, Nominal cross-section: 4 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB910, Pin pitch: 7.5 mm, Wiring method: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pins alignment: straight, Pins [P]: 4.5 mm, Number of pins per potential: 1, Packaging type: Carton Pin arrangement: Straight, Solder pin [P]: 4.5 mm, Number of pins per potential: 1, Packing type: Carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Different digits can be combined by means of side latches
0
Views: 29,478
Contact usDownload PDF View 3D Download CAD

  • Technical data

    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    30 - 10
    Wire Range [AWG]
    26~10
    Dielectric Voltage-Withstand
    1.6KV

    Technical data

    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    450 630 1000
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~4.0

    Materials

    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated

    General parameters

    Pitch/Poles [mm]/[P]
    7.5/2~24
    Stripping Length [mm]
    7
     Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    260℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB Hole Diameter [mm]
    Ø1.5

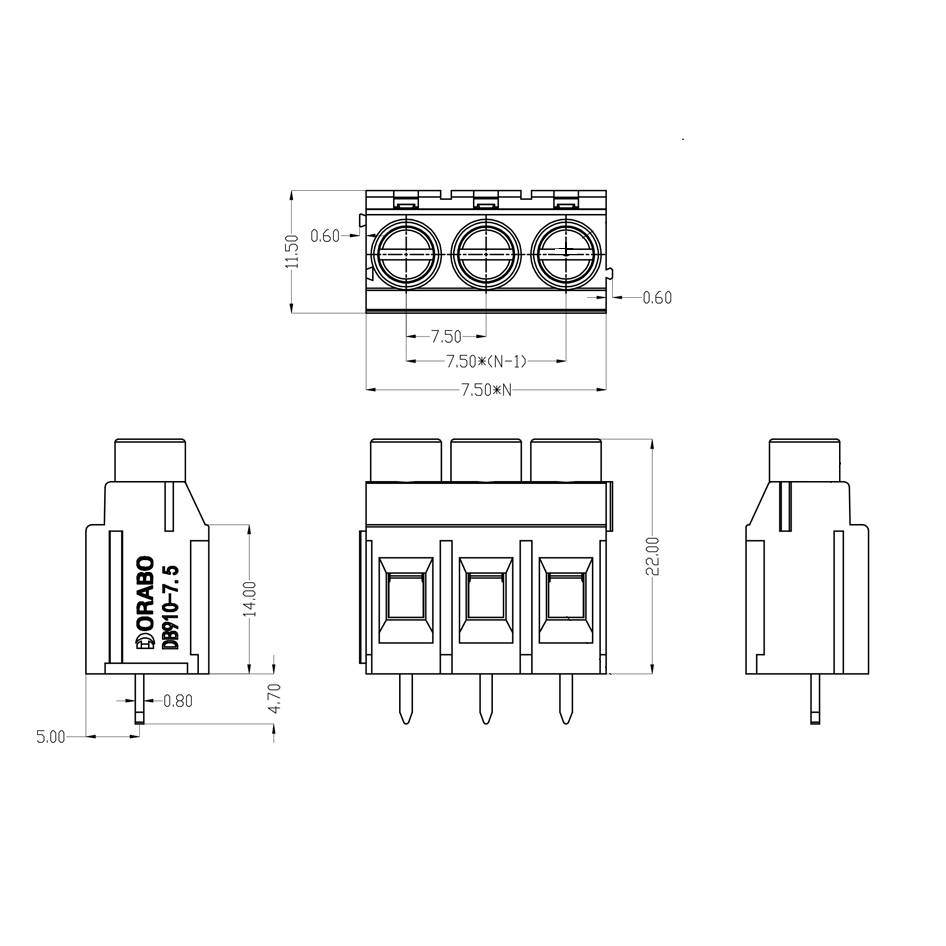

    Dimensional drawings

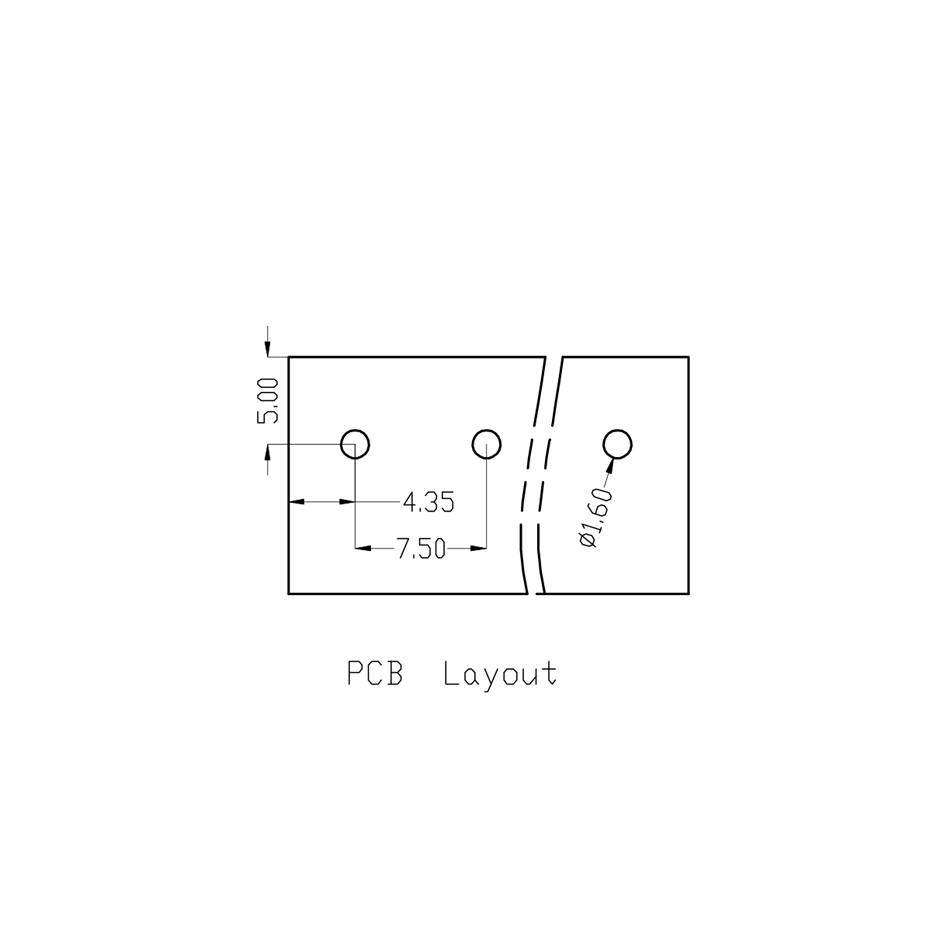

    PCB cut-out diagram
