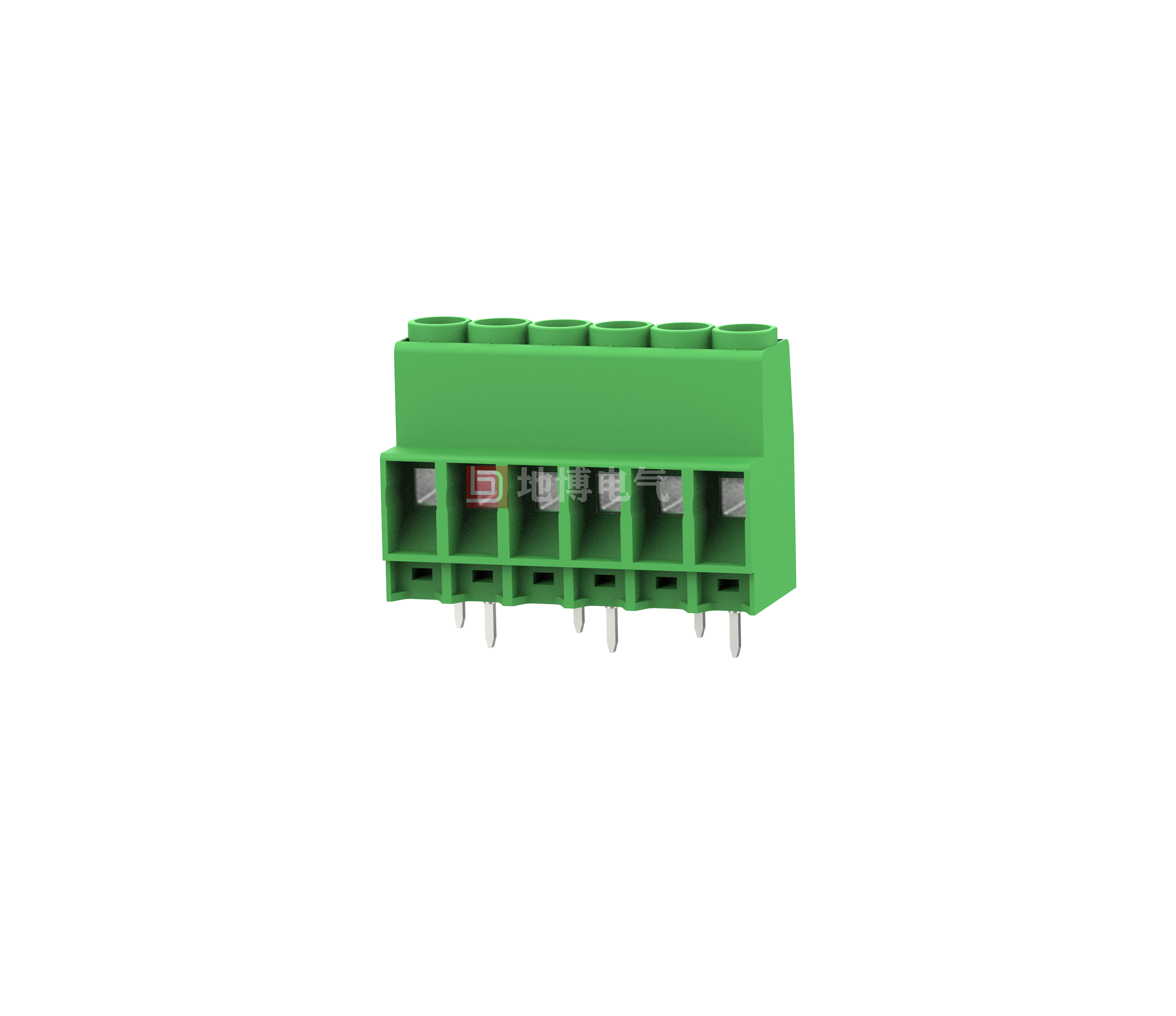

PCB terminal DB930A-6.35

Fixed connectors, Rated current: 41 A, Rated voltage (III/2): 1000 V, Rated cross-section: 4 mm2, Number of potentials: 2-18, Number of rows: 1, Number of digits per row: 2-18, Series: DB930A, Pin pitch: 6.35 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: green Pin Arrangement: Z-Pin W, Solder Pins [P]: 5 mm, Number of pins per potential: 1, Packing Type: Carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Use of Z-pin solder pins, complies with non-mandatory certification 600-V-UL
0
Views: 2,312
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    30 30 10
    Wire Range [AWG]
    30~10
    Dielectric Voltage-Withstand
    2.2KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    800 1000 1000
    Rated Current [A]
    41 41 41
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.2~6.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    6.35/2~16
    Stripping Length [mm]
    8-9
    Screw/Torque(Max)[N.m]
    M3.5/0.8
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.6

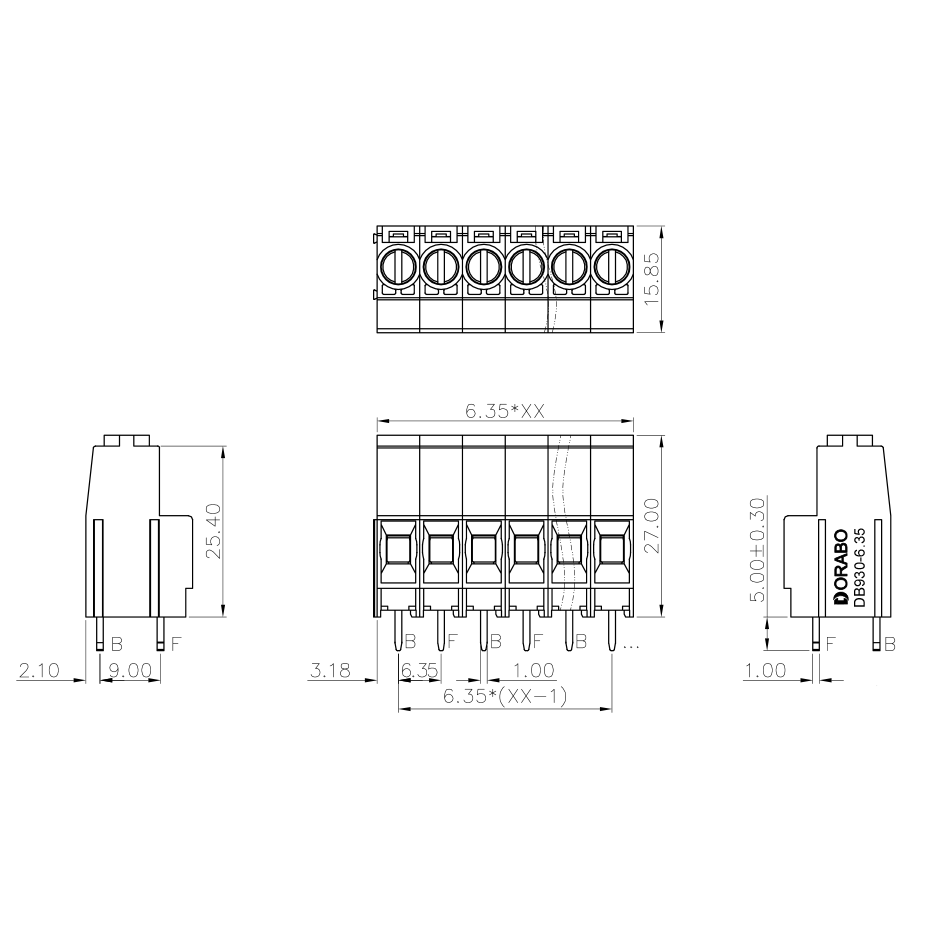

    Dimensional drawings

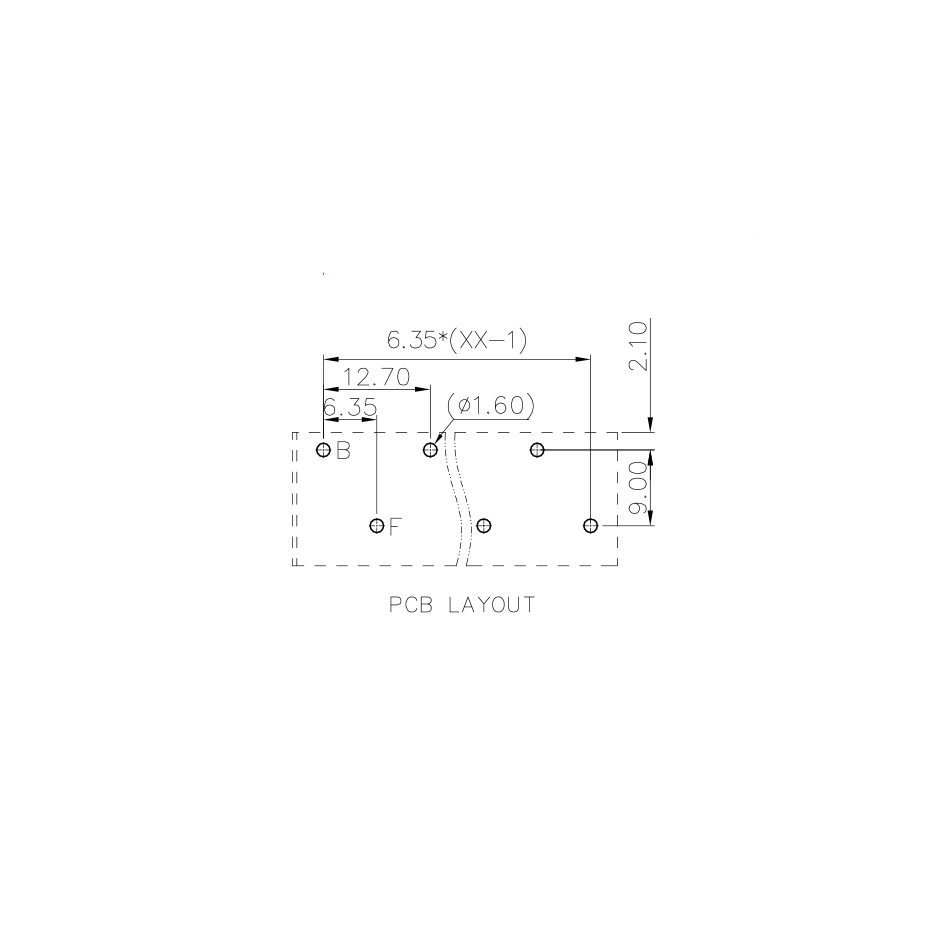

    PCB cut-out diagram
