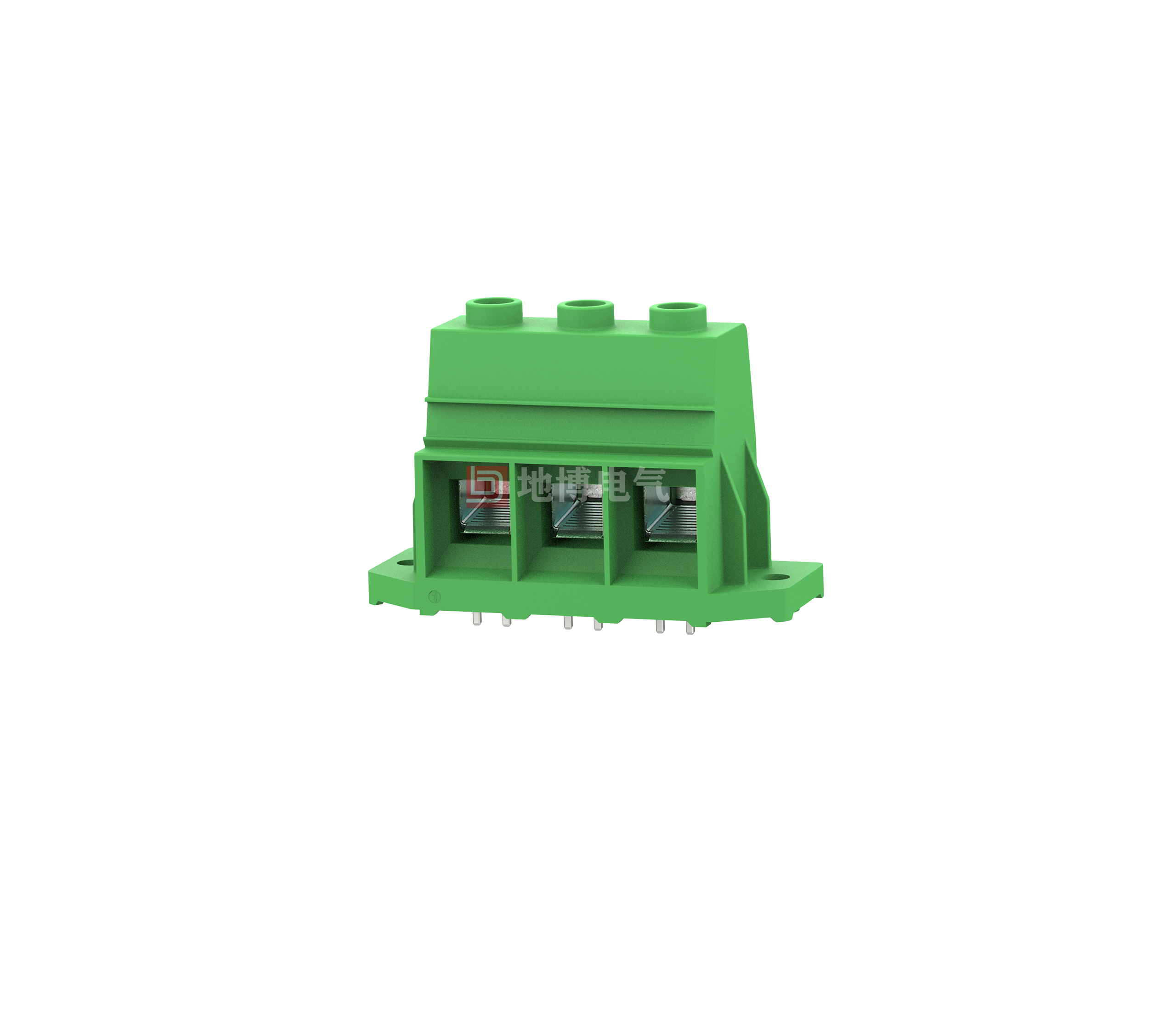

PCB terminal DB138M-17.5

Fixed connectors, Rated current: 192 A, Rated voltage (III/2): 1000 V, Rated cross-section: 70 mm2, Number of potentials: 2-12, Number of rows: 1, Number of digits per row: 2-12, Series: DB138M, Pin pitch: 17.5 mm, Wiring: Screw connection with tab, Screw head size: T30 Torx®, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: Green, Pin arrangement: Straight, Pin [P]: 4 mm, Number of pins per potential: 4, Packing type: Carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Quick and easy testing using built-in test elements
☑ Mounting flange reduces mechanical stress on solder joints
☑ Built in protection rails to prevent misinsertion of wires under elastic deformation tubes
0
Views: 18,110
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    160 160 10
    Wire Range [AWG]
    16~2
    Dielectric Voltage-Withstand
    2.2KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    192 192 192
    Impulse withstand voltage [KV]
    8 8 6
    Conductor cross section [mm²]
    1.5~50



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    17.5/1~12
    Stripping Length [mm]
    19~21
    Screw/Torque(Max)[N.m]
    M6.0/5.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.5*1.5
    PCB Hole Diameter [mm]
    Ø2.4

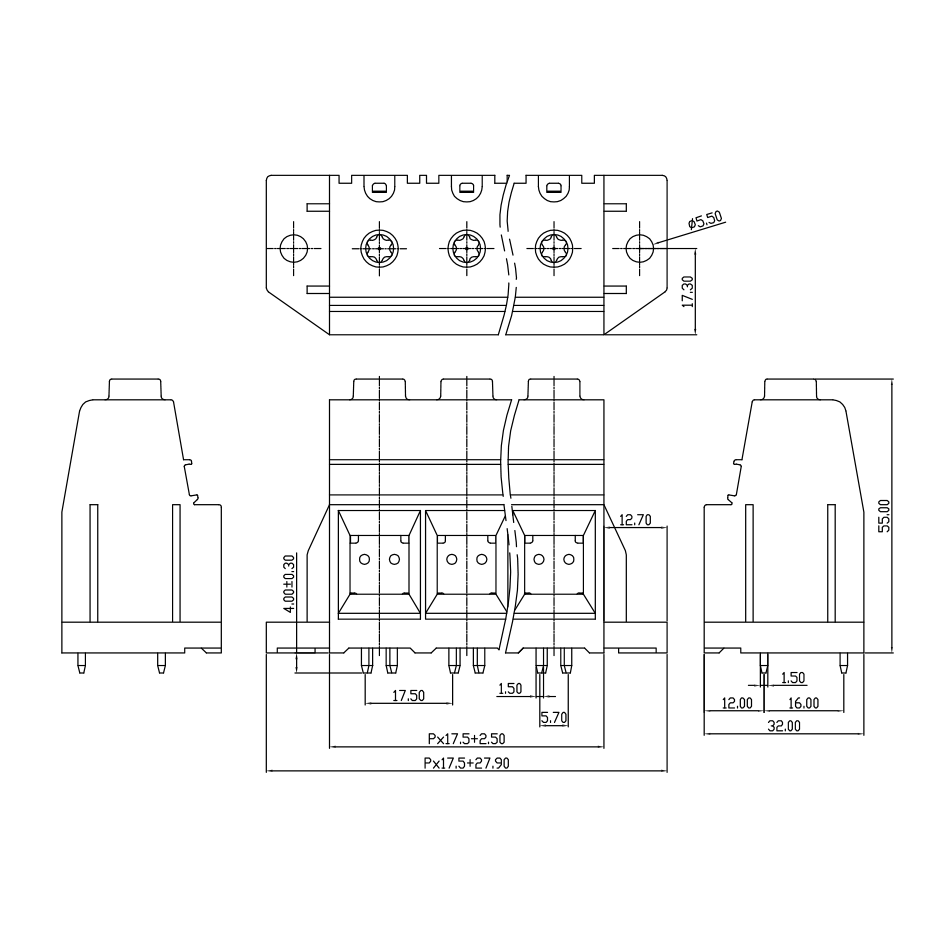

    Dimensional drawings

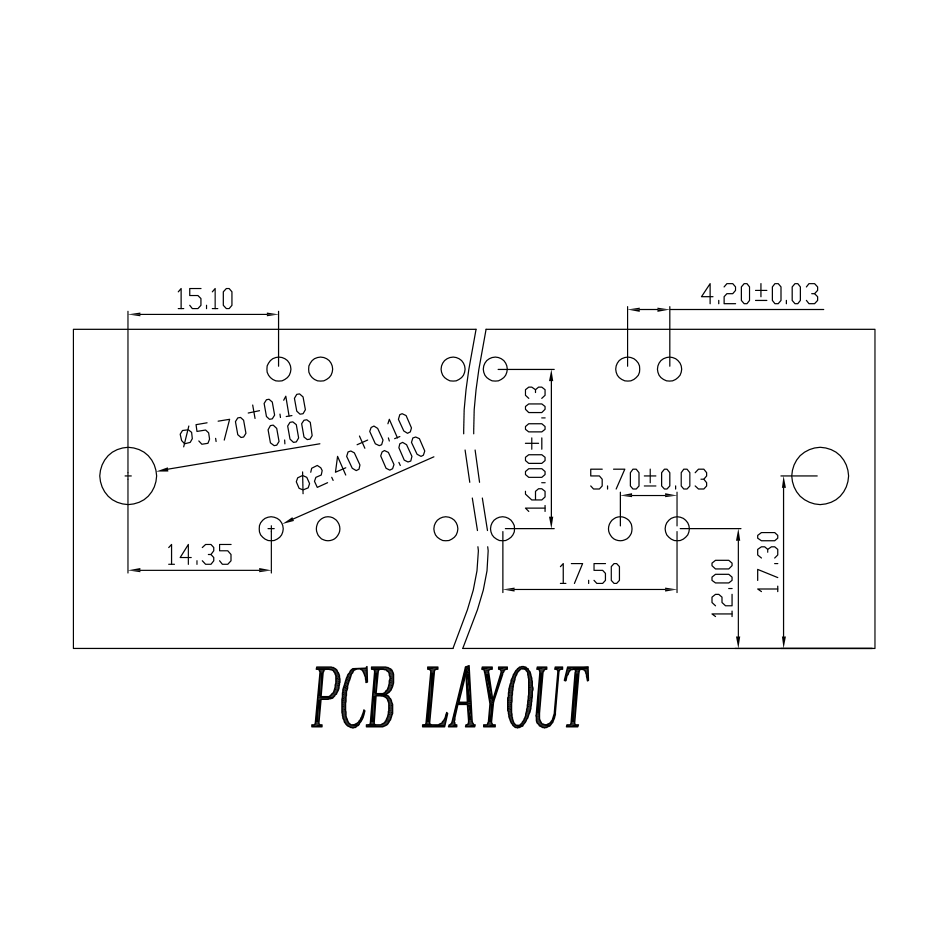

    PCB cut-out diagram
