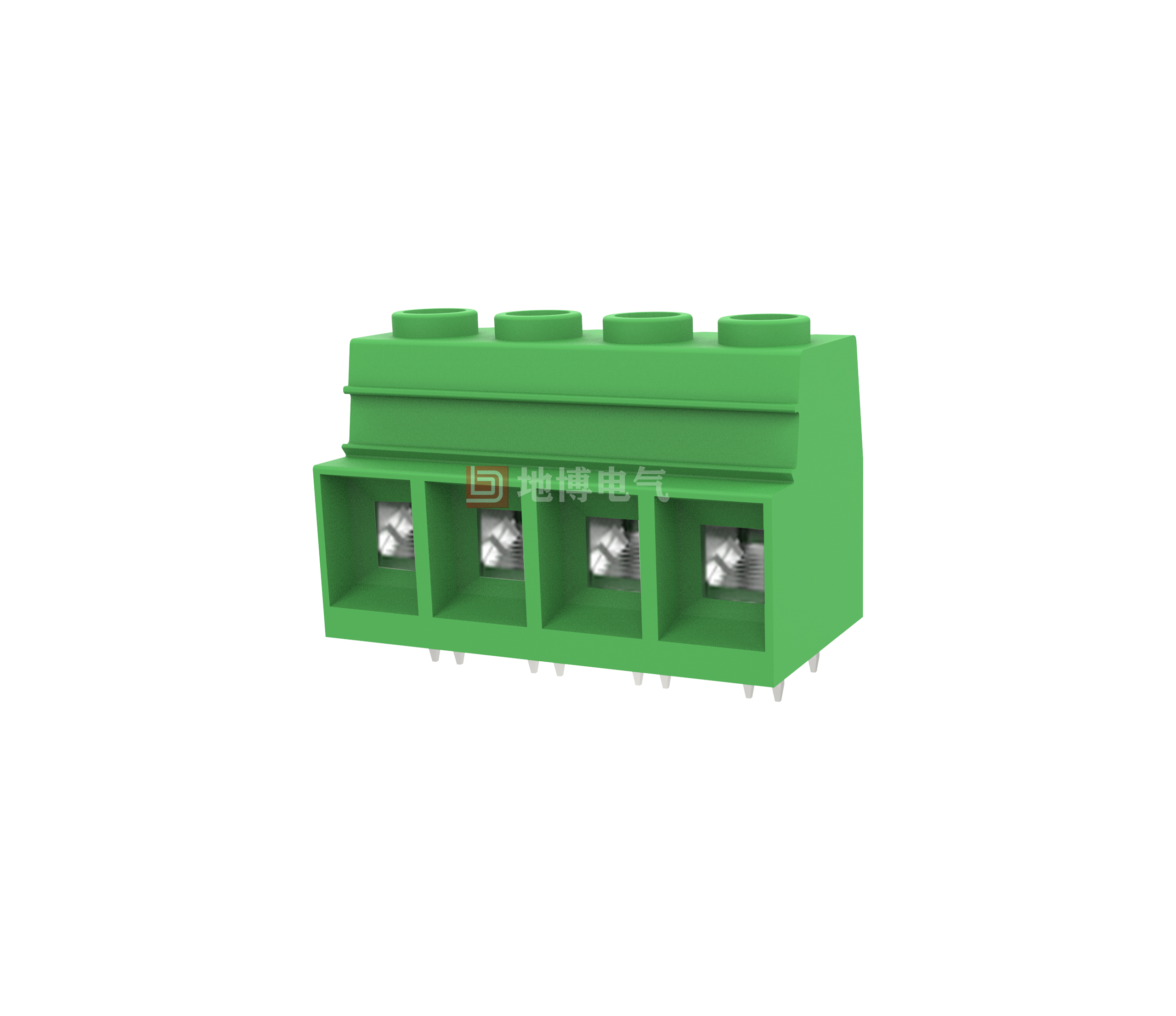

PCB terminals DB137-15.0

Fixed connectors, Nominal operating current: 125 A, Rated voltage (III/2): 1000 V, Nominal cross-section: 35 mm2, Number of potentials: 1-12, Number of rows: 1, Number of digits per row: 1-12, Series: DB137-, Pin pitch: 15 mm, Wiring: Screw connection with crimp, Screw head size: Z2L Slotted Pozidriv, Mounting: Wave soldering, Wire/PCB connection orientation: 0°, Colour: green Pin arrangement: straight, Solder pin [P]: 4.5 mm, Number of pins per potential: 4, Packing type: carton. Avoid applying constant mechanical loads on the terminals

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Quick and easy testing using built-in test elements
☑ Built in protection rails to prevent misinsertion of wires under elastic deformation tubes
0
Views: 18,204
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    115 115 5
    Wire Range [AWG]
    20~2
    Dielectric Voltage-Withstand
    2.2KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    1000 1000 1000
    Rated Current [A]
    125 125 125
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.5~35



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    15.0/1~12
    Stripping Length [mm]
    17~18
    Screw/Torque(Max)[N.m]
    M5.0/2.0
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.2*1.2
    PCB Hole Diameter [mm]
    Ø2.0

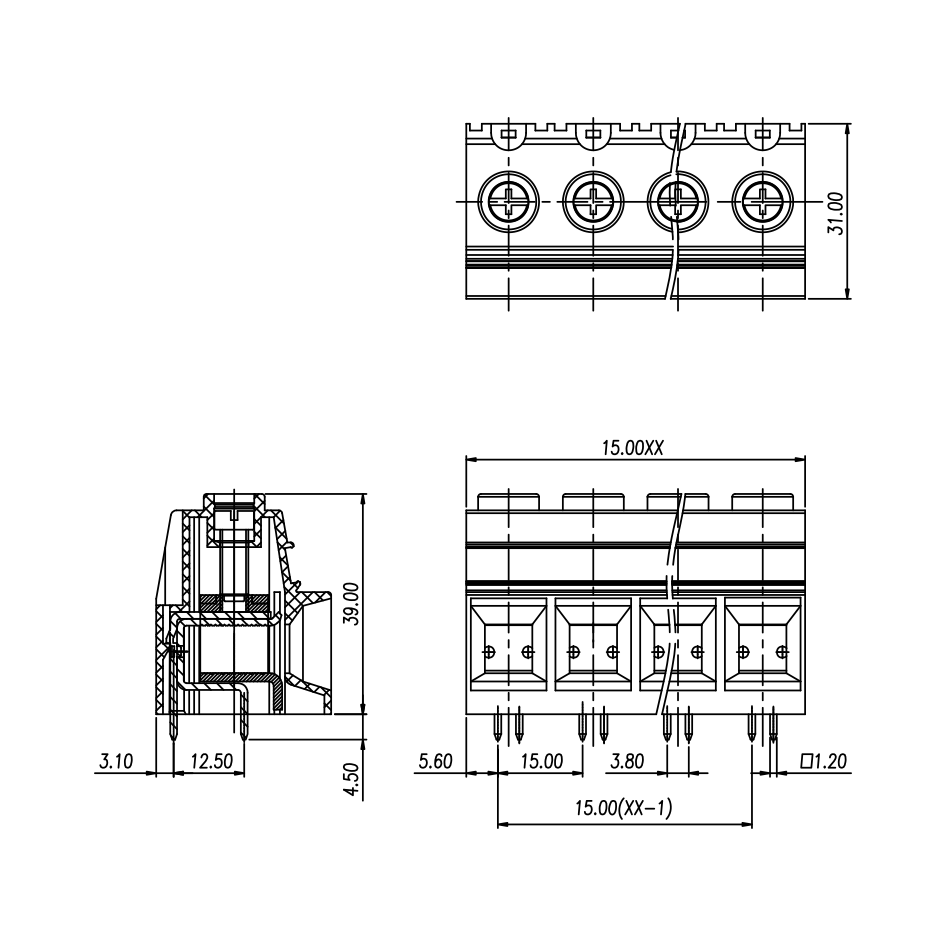

    Dimensional drawings

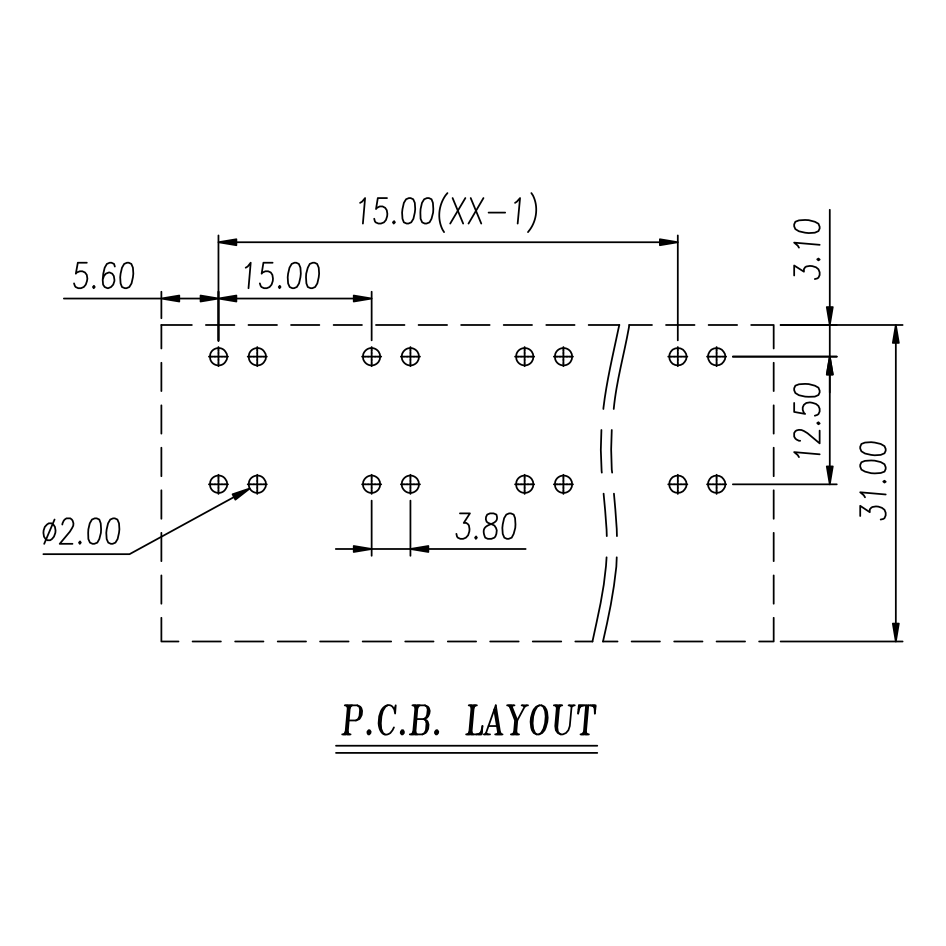

    PCB cut-out diagram
