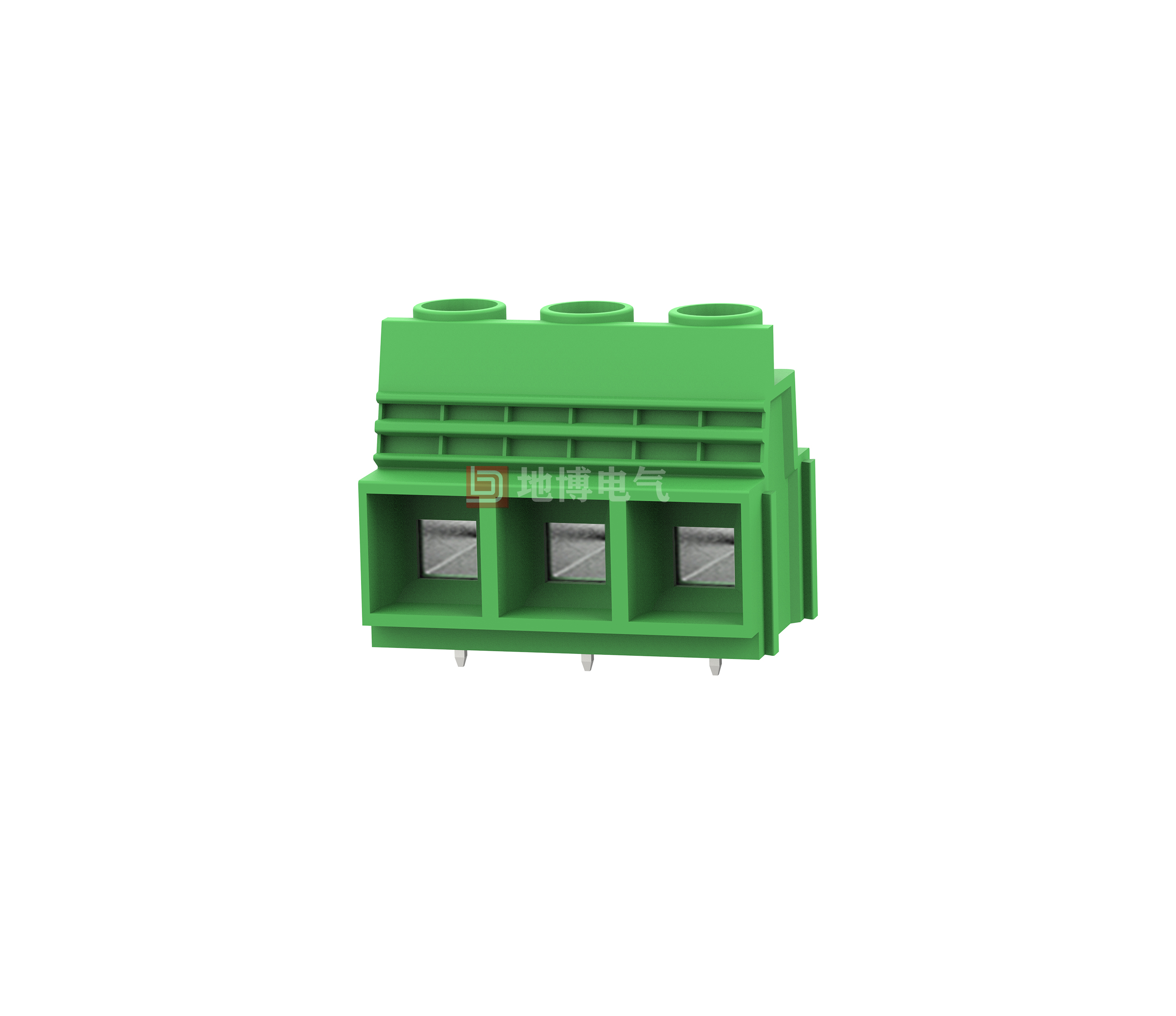

PCB terminal DB116A-12.7

Fixed connectors, Nominal operating current: 65 A, Rated voltage (III/2): 600 V, Nominal cross-section: 16 mm2, Number of potentials: 2-16, Number of rows: 1, Number of pins per row: 2-16, Series: DB116A, Pin pitch: 10.16 mm, Wiring method: screw connection with crimp, Screw head size: cross-slot, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: Green, Pin arrangement: double row linear, Solder pin [P]: 5 mm, Number of pins per potential: 2, Packing type: carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force, low temperature rise
☑ Allows connection of two stranded wires
☑ Quick and easy testing with built-in test elements
☑ Various digits can be combined by means of side latches
☑ Built in protective guide to prevent misinsertion of wires under the elastic deformation tube
0
Views: 2,216
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    600 600 600
    Rated Current [A]
    65 65 5
    Wire Range [AWG]
    20~6
    Dielectric Voltage-Withstand
    2.2KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    100 1000 1000
    Rated Current [A]
    57 57 57
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    2.5~16



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    12.7/2~16
    Stripping Length [mm]
    11~12
    Screw/Torque(Max)[N.m]
    M4/1.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.7

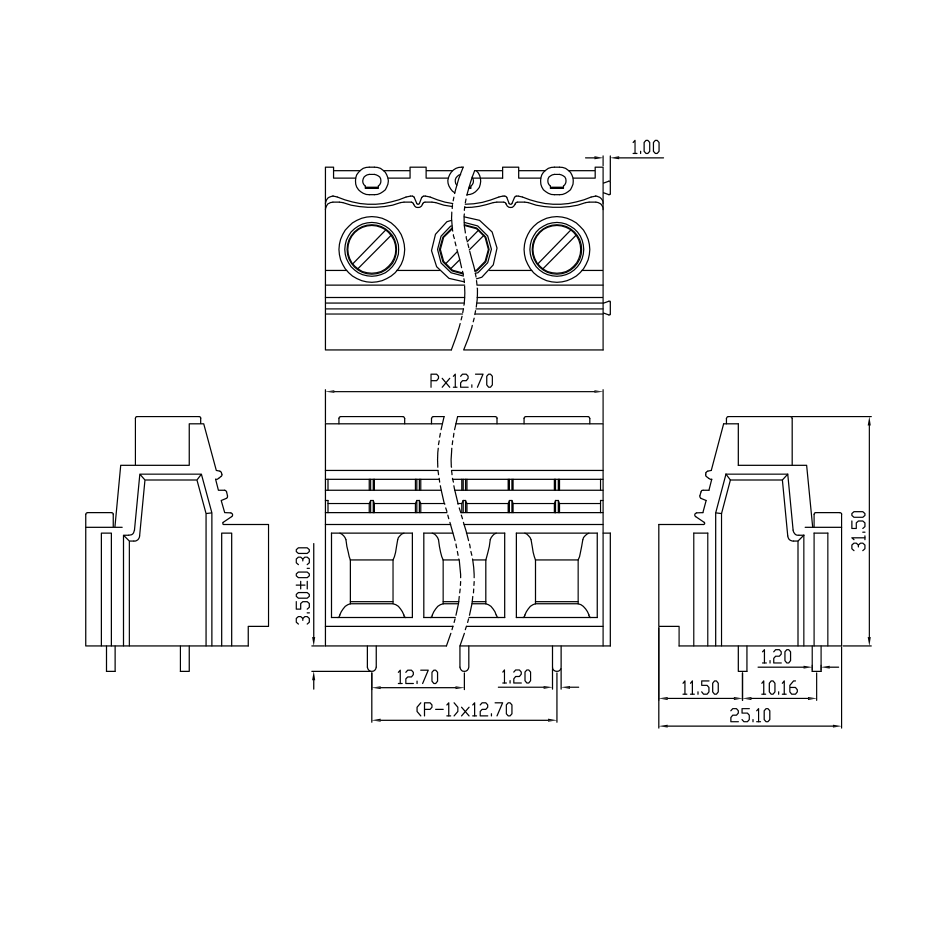

    Dimensional drawings

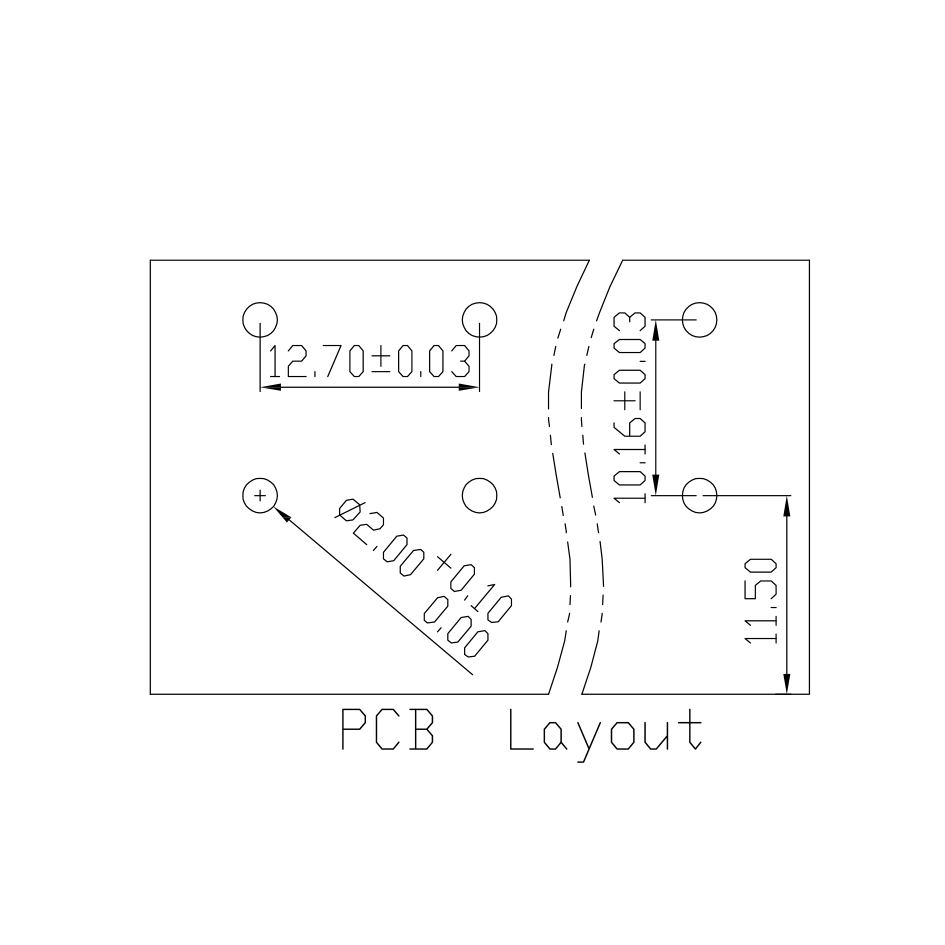

    PCB cut-out diagram
