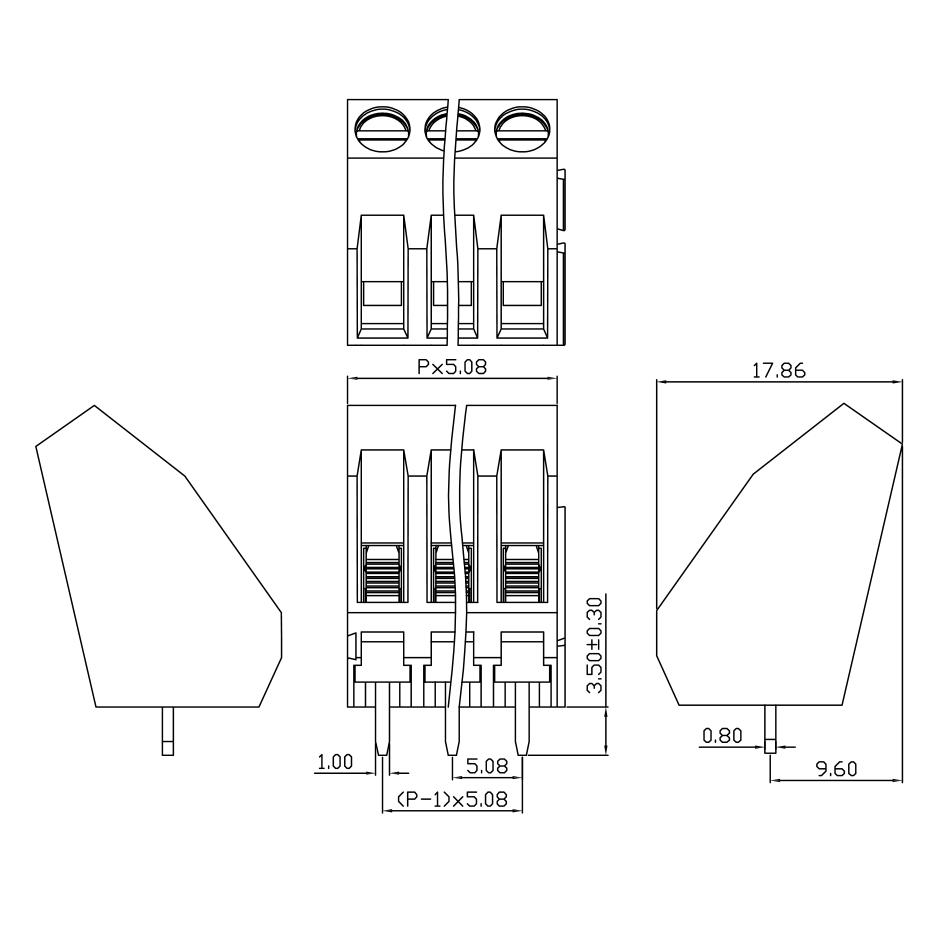

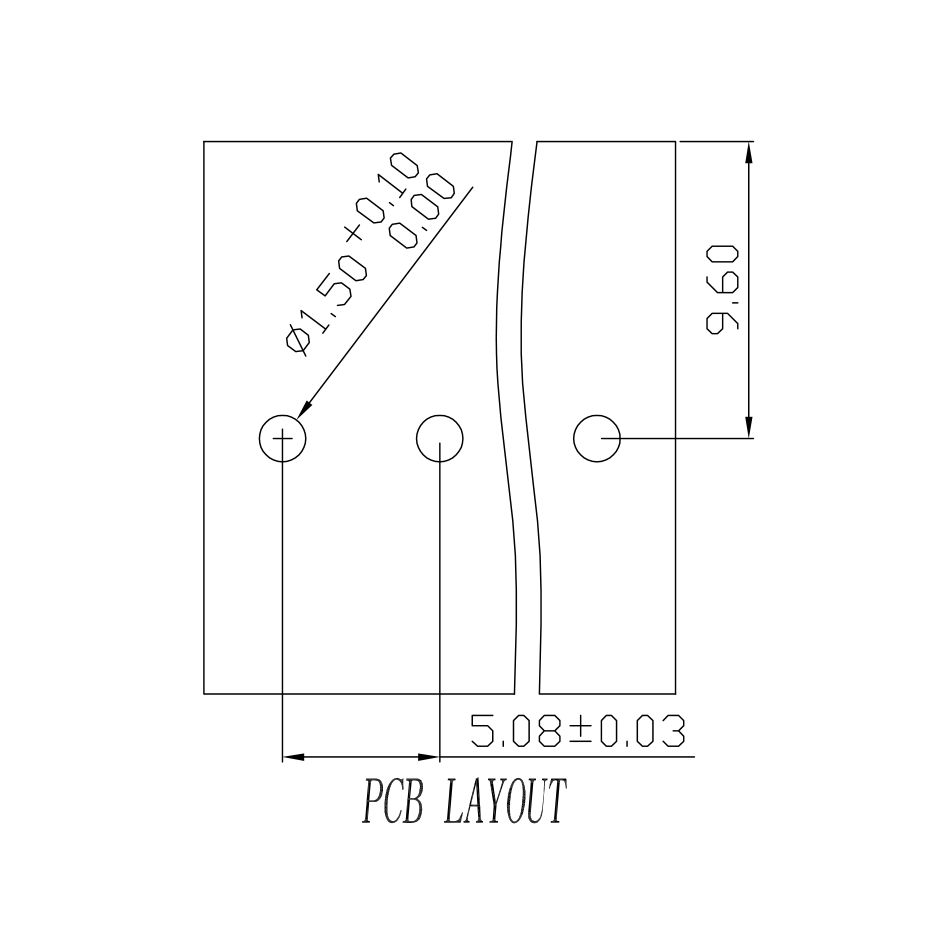

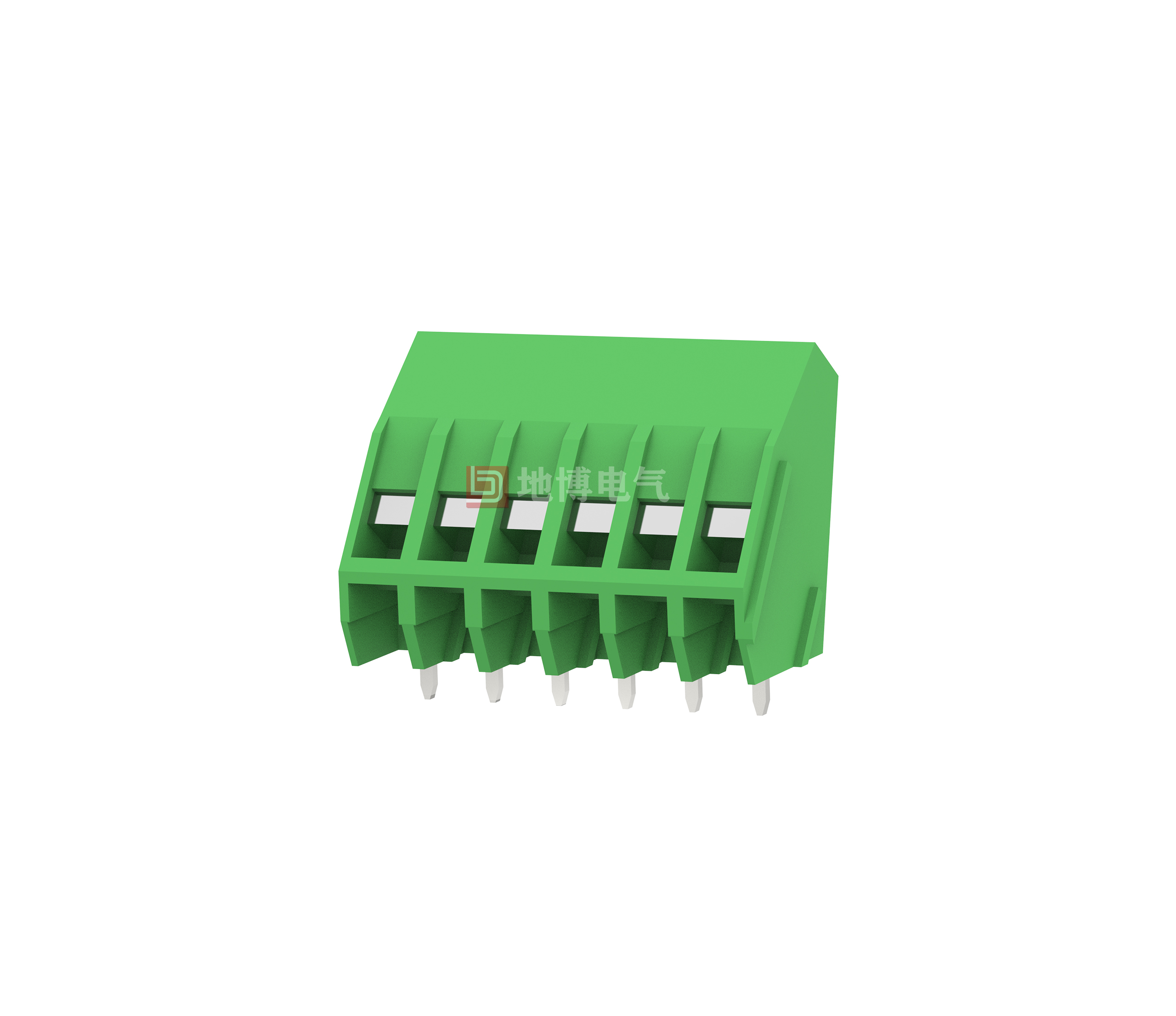

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB104, Pin pitch: 5.08 mm, Wiring method: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection direction: 55°, Colour: green, Pins Arrangement: Straight, Pins [P]: 4.5 mm, Number of pins per potential: 1, Packing type: Carton. The product can be composed of connectors of different bit numbers!
Advantages
☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Bend connection allows for multiple row layout on PCB
☑ Built in protection rails to prevent misinsertion of wires under flexible deformation tubes
☑ Lock on the side allows the combination of different bits
