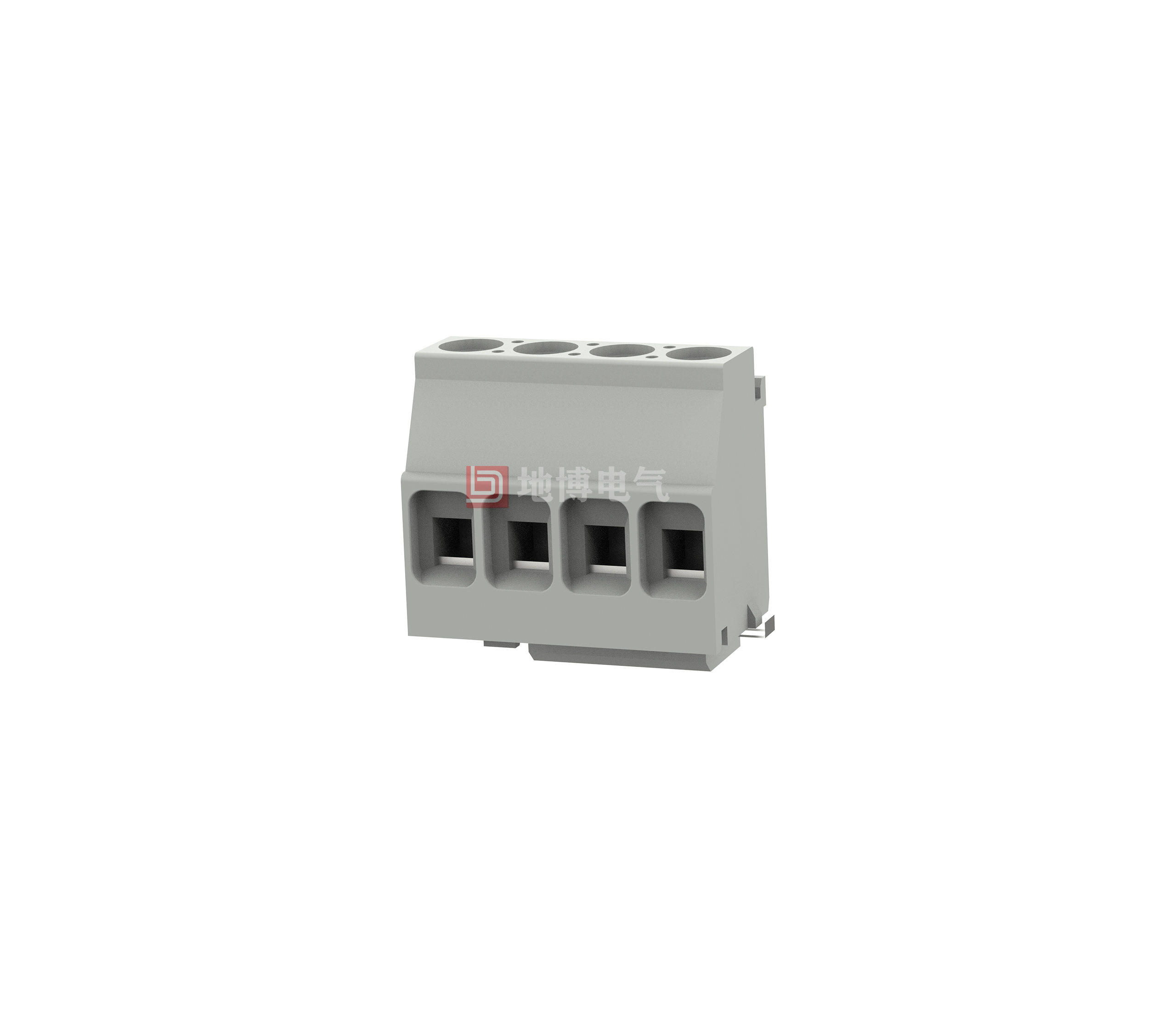

PCB terminals DB130LF-5.0

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 4, Number of rows: 1, Number of digits per row: 4, Series: DB130LF, Pin pitch: 5 mm, Wiring: screw connection with crimp, Mounting: wave soldering, Wire/PCB connection direction: 0°, Colour: light grey, Pin arrangement: Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton. Housing with horizontal pins

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Bend connection allows for multiple row layout on PCB
☑ Built in protection rails to prevent misinsertion of wires under flexible deformation tubes
☑ Lock on the side allows the combination of different bits
0
Views: 2,371
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    26-12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    20 20 20
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.2-2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2-24
    Stripping Length [mm]
    10-11
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.9*1.0
    PCB Hole Diameter [mm]
    Ø1.6

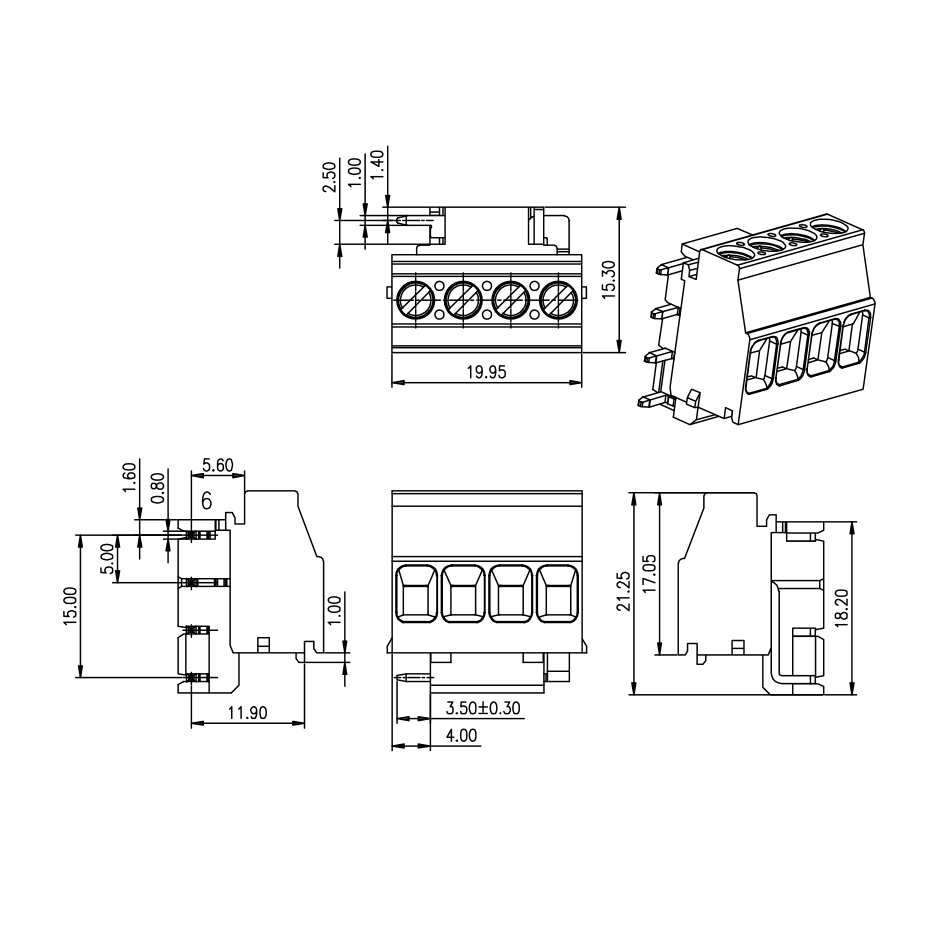

    Dimensional drawings

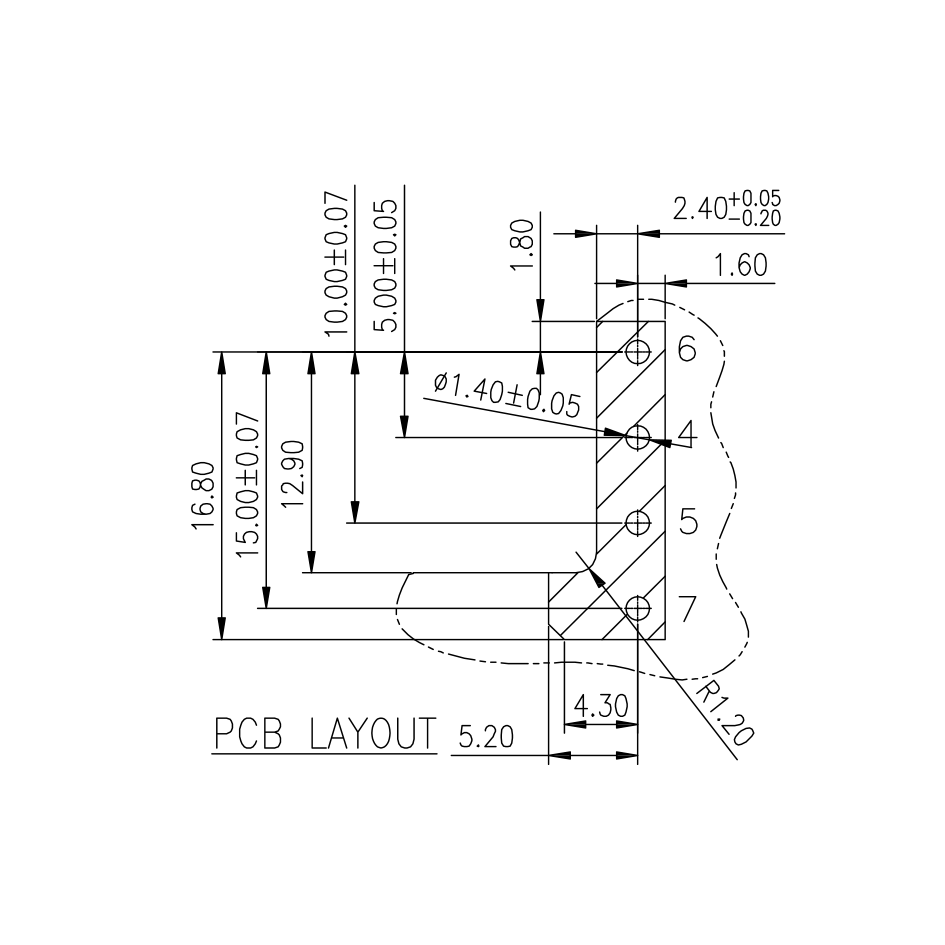

    PCB cut-out diagram
