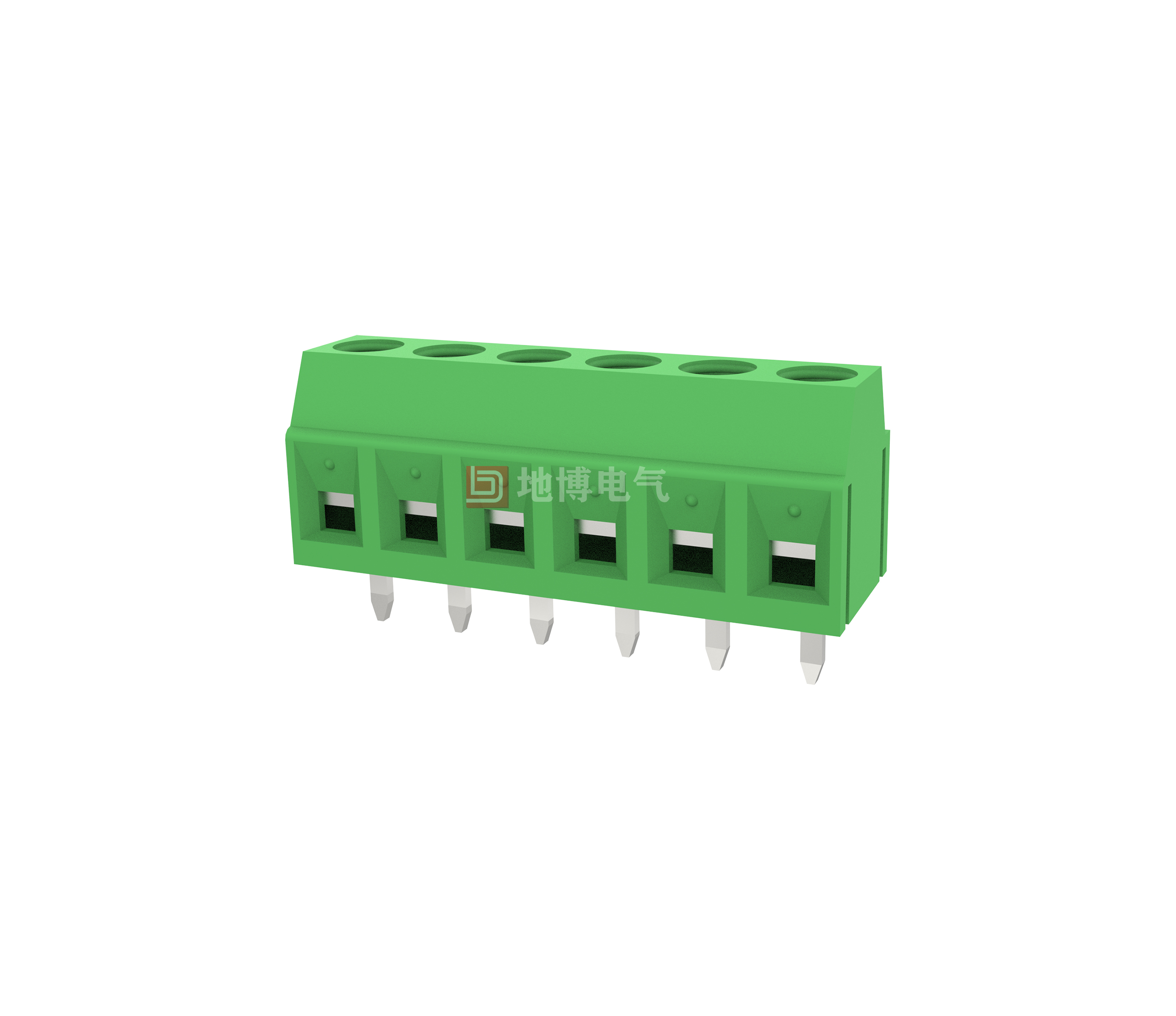

PCB terminal DB125-3.81

Fixed connectors, Nominal operating current: 13.5 A, Rated voltage (III/2): 200 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB125, Pin pitch: 3.81 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection direction: 0°, Colour: green, Pins alignment: straight, Solder pins [P]: 3.5 mm, Number of pins per potential: 1 Pin Arrangement: Straight, Solder Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: Carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Very small design for each wire cross-section



0
Views: 3,002
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    10 - 10
    Wire Range [AWG]
    28~16
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 200 400
    Rated Current [A]
    13.5 13.5 13.5
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    0.5~1.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    3.81/2~24
    Stripping Length [mm]
    4~5
    Screw/Torque(Max)[N.m]
    M2/0.2
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.5*0.9
    PCB Hole Diameter [mm]
    Ø1.3

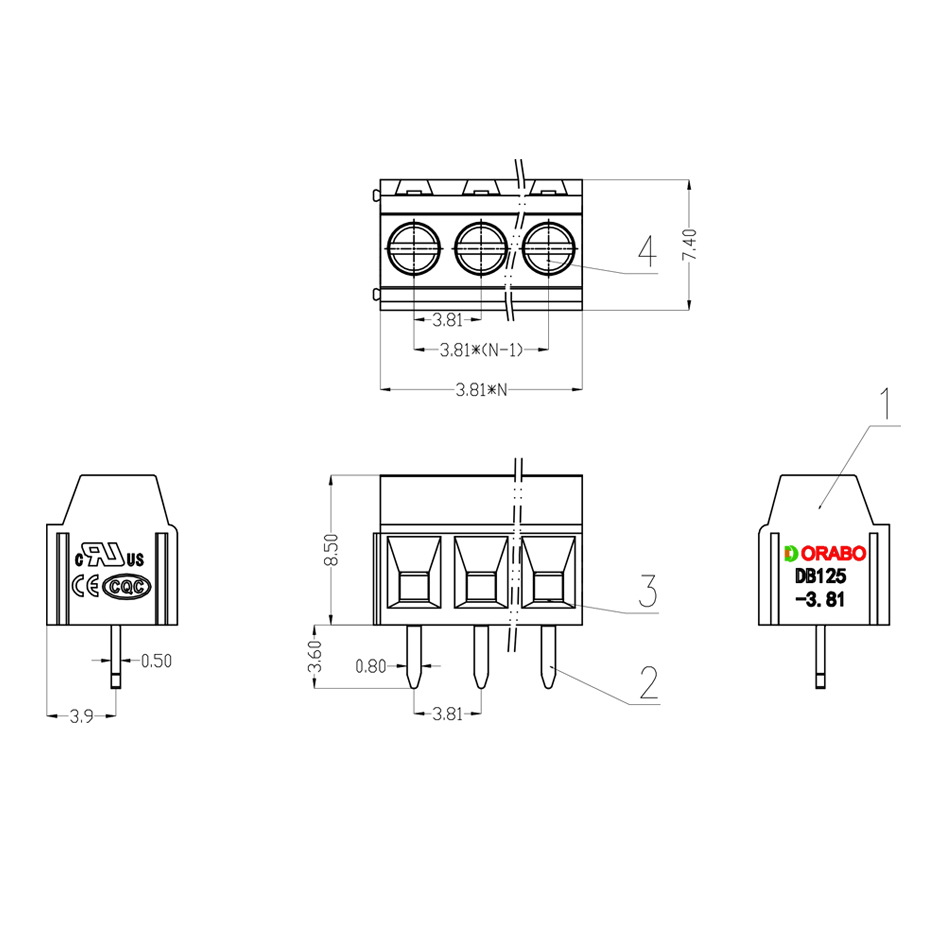

    Dimensional drawings

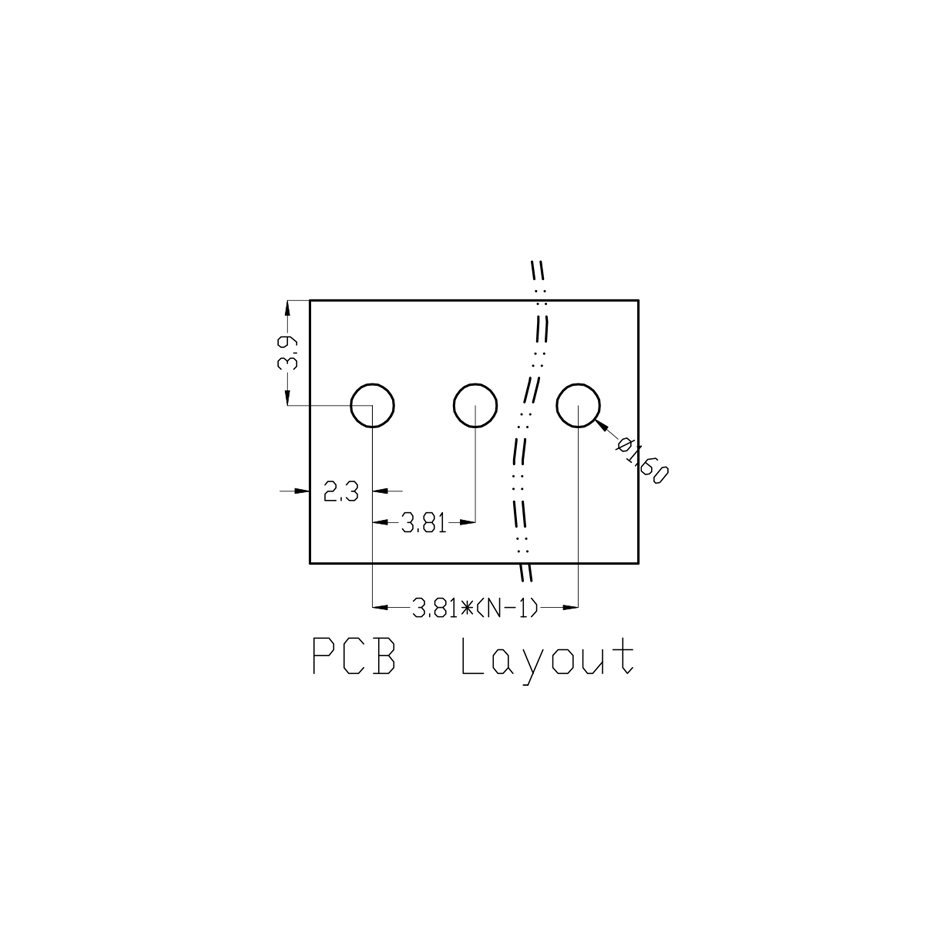

    PCB cut-out diagram
