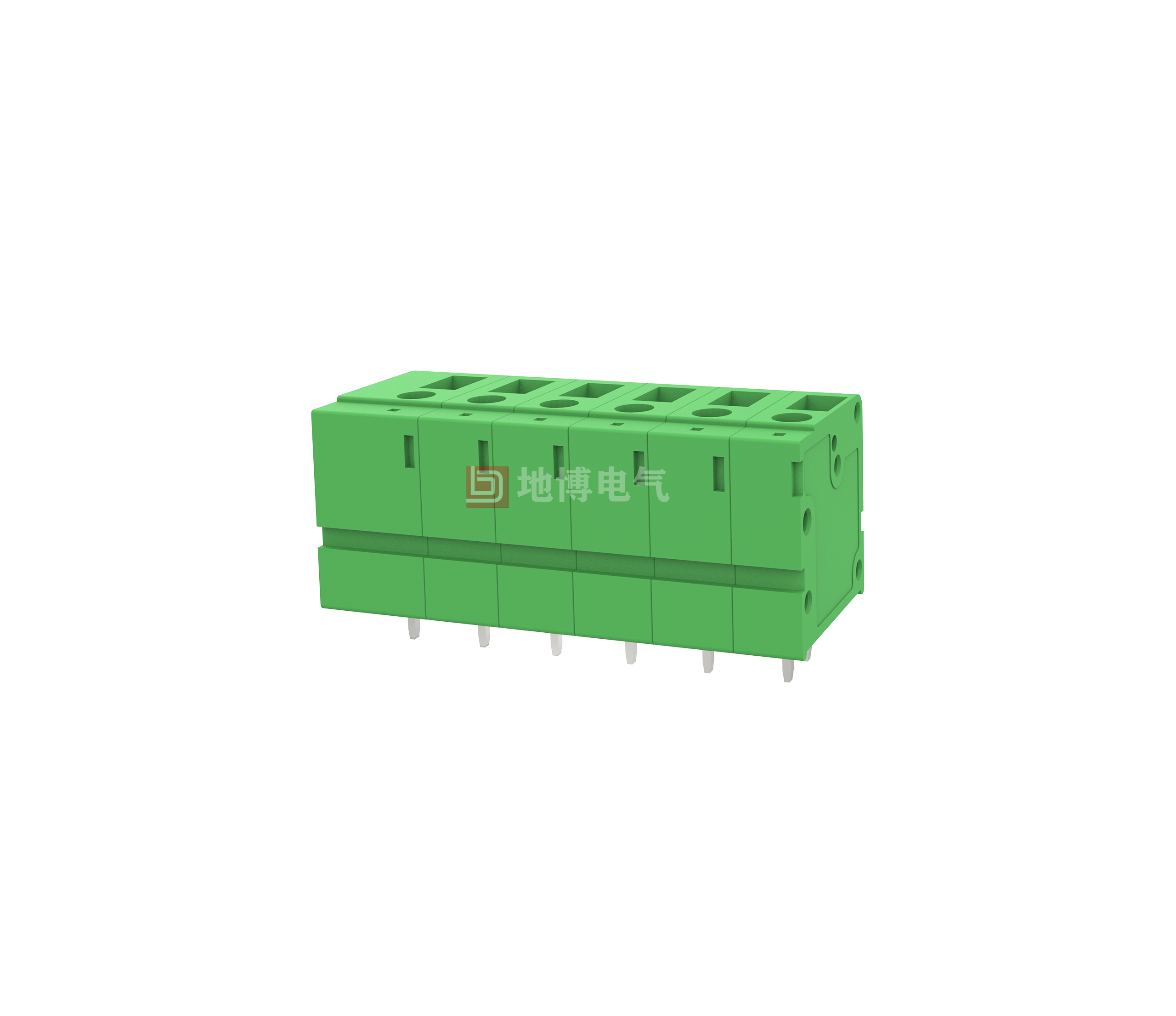

PCB terminal DB105V-7.5

Fixed connectors, Rated current: 24 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 1-30, Number of rows: 1, Number of pins per row: 1-30, Series: DB105V, Pin pitch: 7.5 mm, Wiring method: front screw connection, Mounting: wave soldering, Wire/PCB connection direction: 90°, Colour: green, Pin arrangement: straight, Solder pins [P]: 3.5 mm, Number of pins per potential: 2, Packing type: carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows the connection of two stranded wires
☑ Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the device
☑ Two solder pins to reduce mechanical stress on the solder points
☑ The latch on the side allows the combination of different bits
0
Views: 2,312
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    20 - 10
    Wire Range [AWG]
    26~12
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    450 630 1000
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    0.5~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    7.5/1~30
    Stripping Length [mm]
    12~13
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4



    Dimensional drawings





    PCB cut-out diagram
