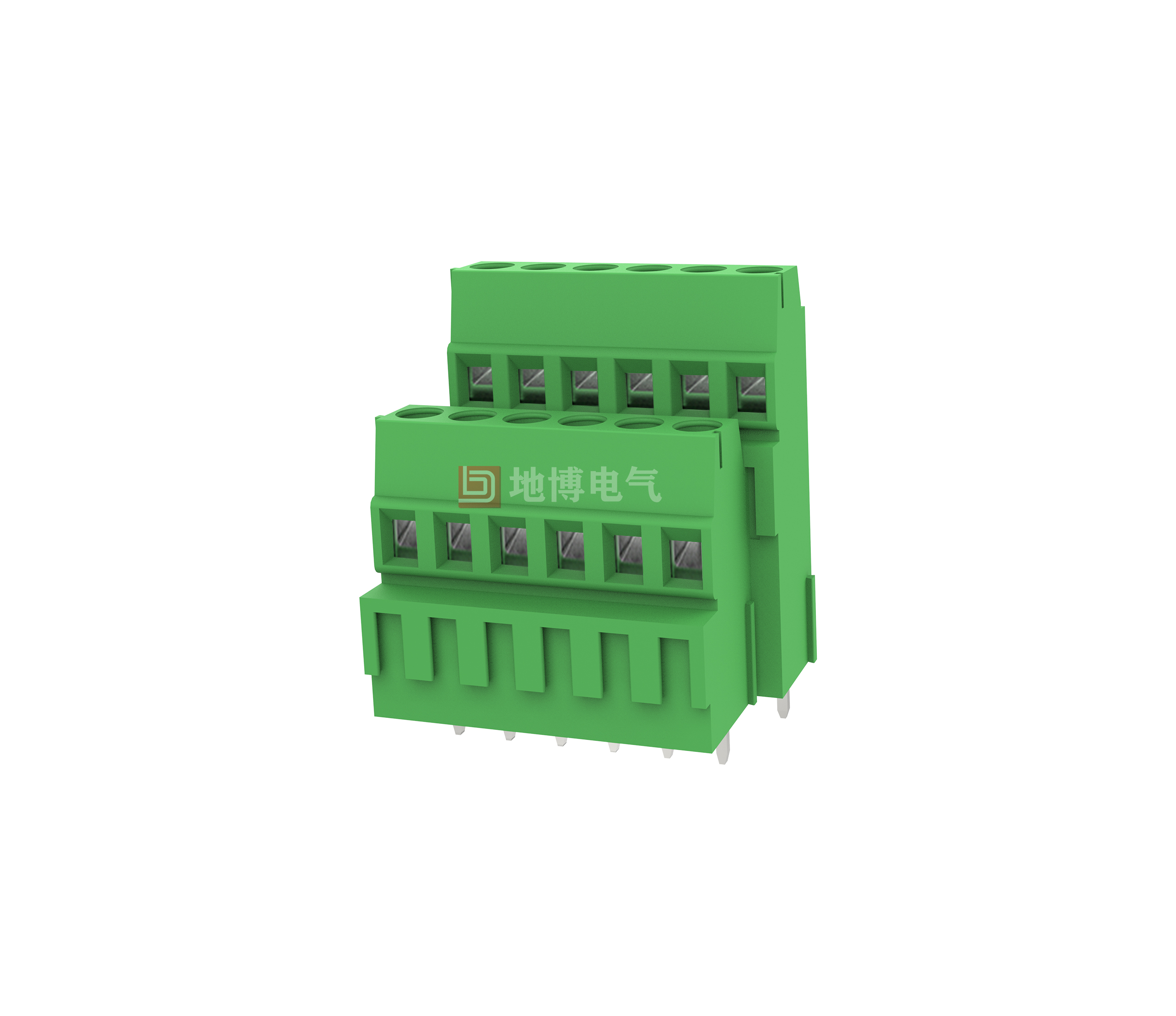

PCB terminals DB128BB-5.08

Fixed connectors, Rated current: 17.5 A, Rated voltage (III/2): 400 V, Rated cross-section: 2.5 mm2, Number of potentials: 4-48, Number of rows: 2, Number of bits per row: 2-24, Series: DB128BB, Pin pitch: 5.08 mm, Wiring method: Screw connection with crimp, Screw head size: L slotted, Mounting: Wave soldering, Lead/wire PCB connection direction: 0°, Colour: green, Pin arrangement: straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑Maximum contact force with low temperature rise
☑Allows connection of two stranded wires
☑High profile, allows connection of conductors in sealed PCBs
☑Multi-layer wire connection for high contact density
☑Various bit combinations possible via side latches
0
Views: 591
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    30~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    24 24 24
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~2.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2*2-2*24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M2.5/0.4
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*09
    PCB Hole Diameter [mm]
    Ø1.5

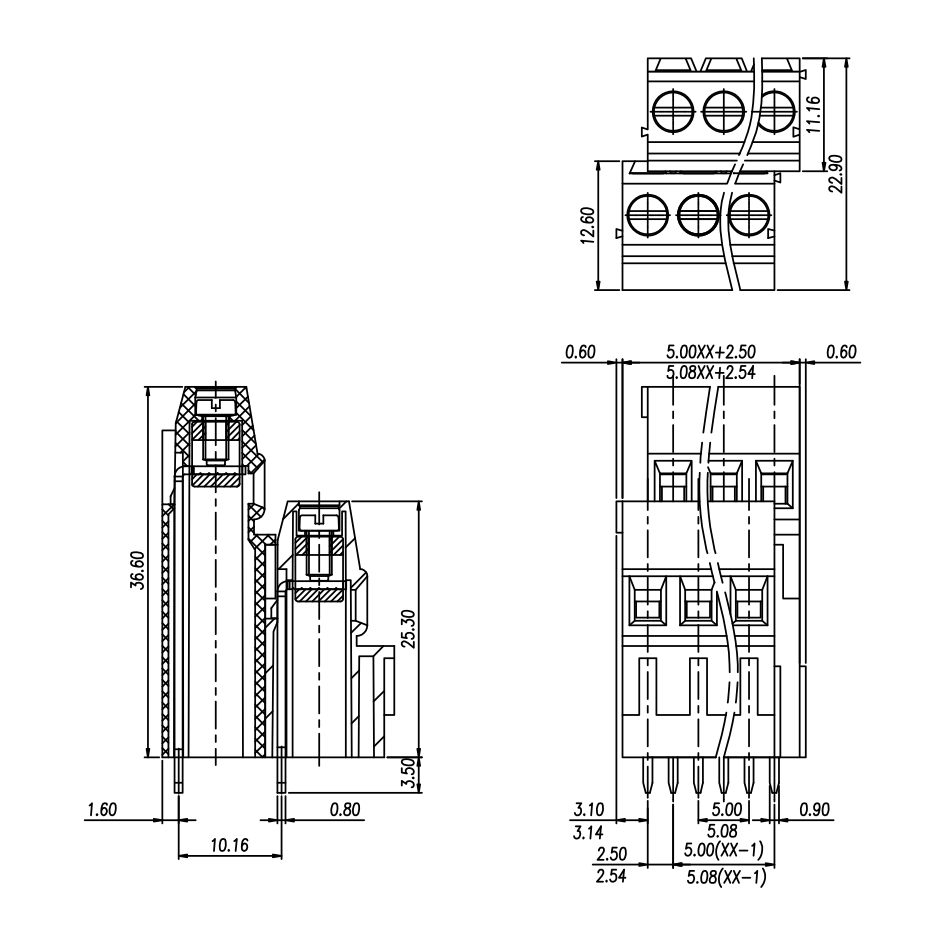

    Dimensional drawings

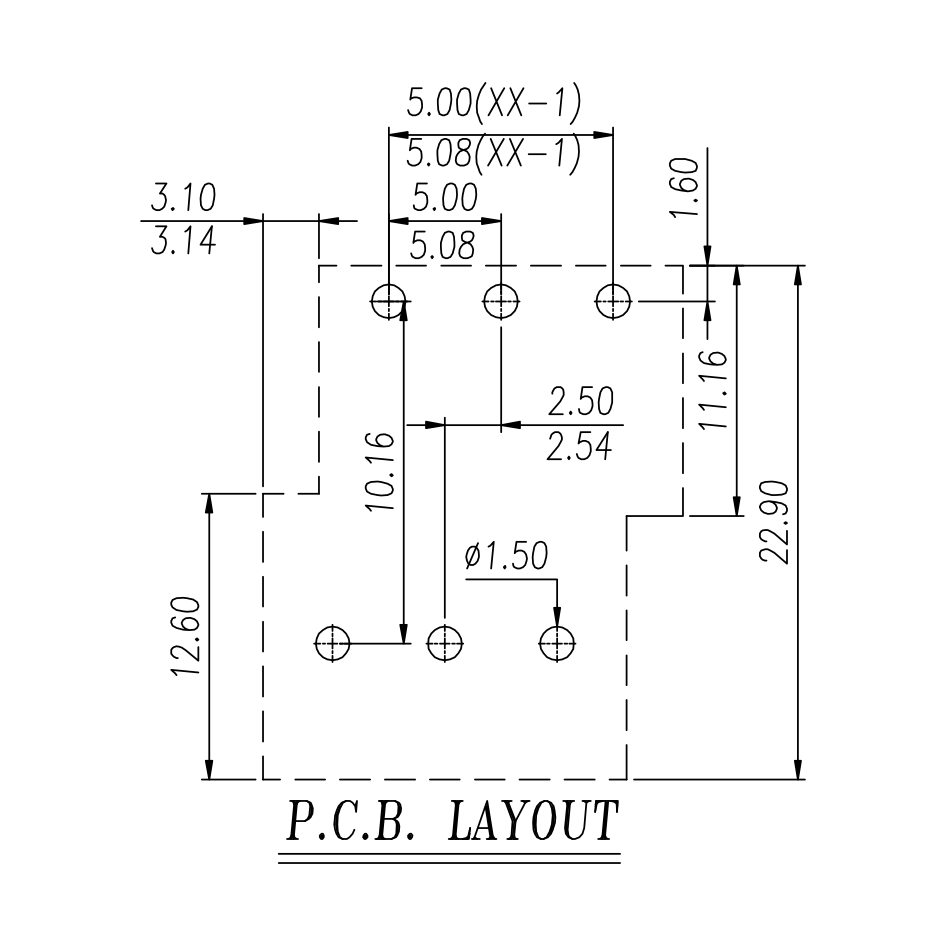

    PCB cut-out diagram
