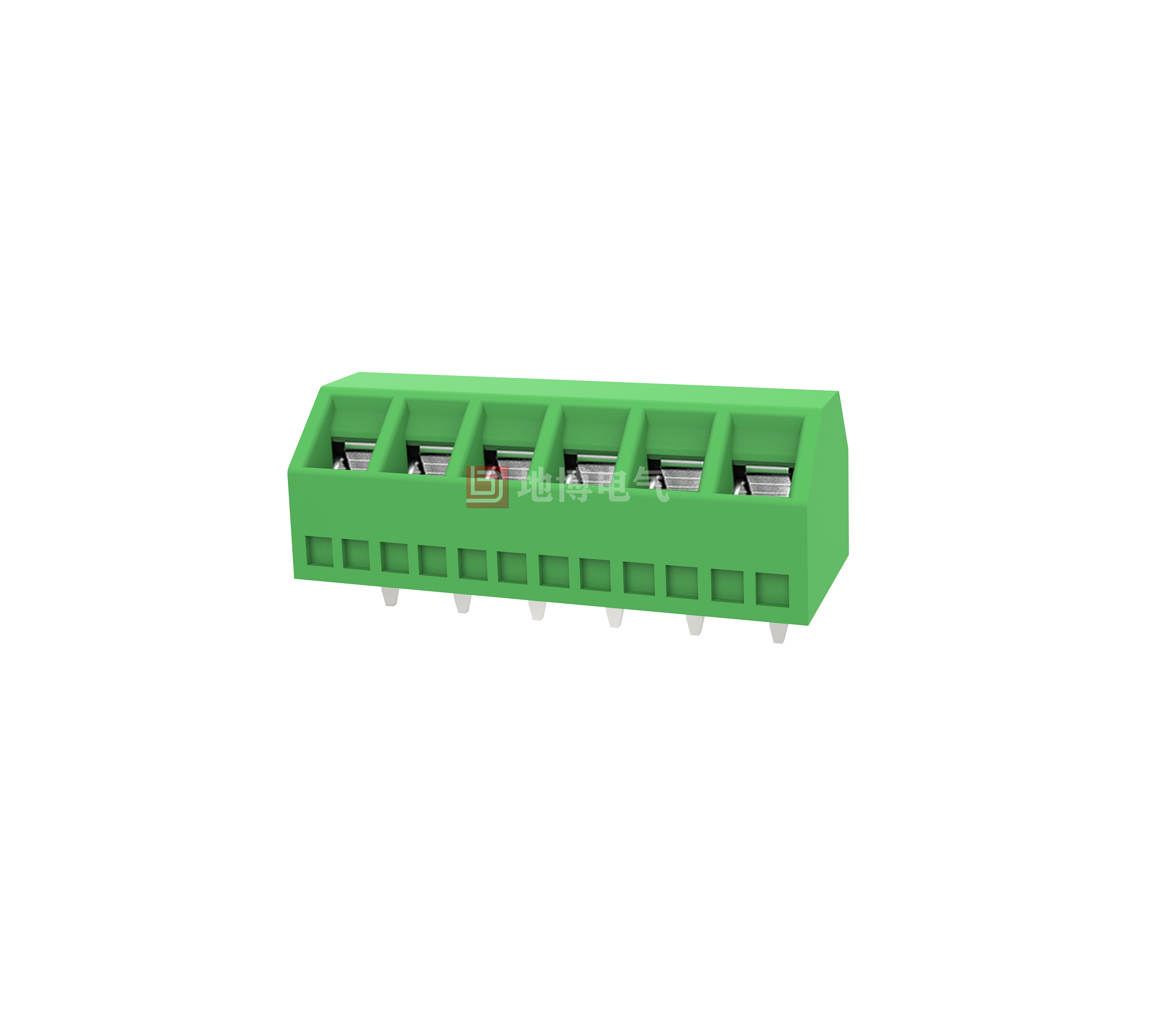

PCB terminal DB127S-5.0

Fixed connectors, Rated current: 13.5 A, Rated voltage (III/2): 400 V, Rated cross-section: 1.5 mm2, Number of potentials: 2-24, Number of rows: 1, Number of pins per row: 2-24, Series: DB127S, Pin pitch: 5.0 mm, Wiring method: Screw connection with crimp, Screw head size: L slotted, Mounting: Wave soldering, Wires/PCB Connection direction: 45°, Colour: green, Pin arrangement: straight, Pin [P]: 3.5 mm, Number of pins per potential: 1, Packing type: carton

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Bend connection allows for multiple rows on the PCB
☑ Extremely small design for each wire cross-section
0
Views: 718
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    26~14
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 400 630
    Rated Current [A]
    17.5 17.5 17.5
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    0.5~1.5



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    M3/0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.5*1.0
    PCB Hole Diameter [mm]
    Ø1.4

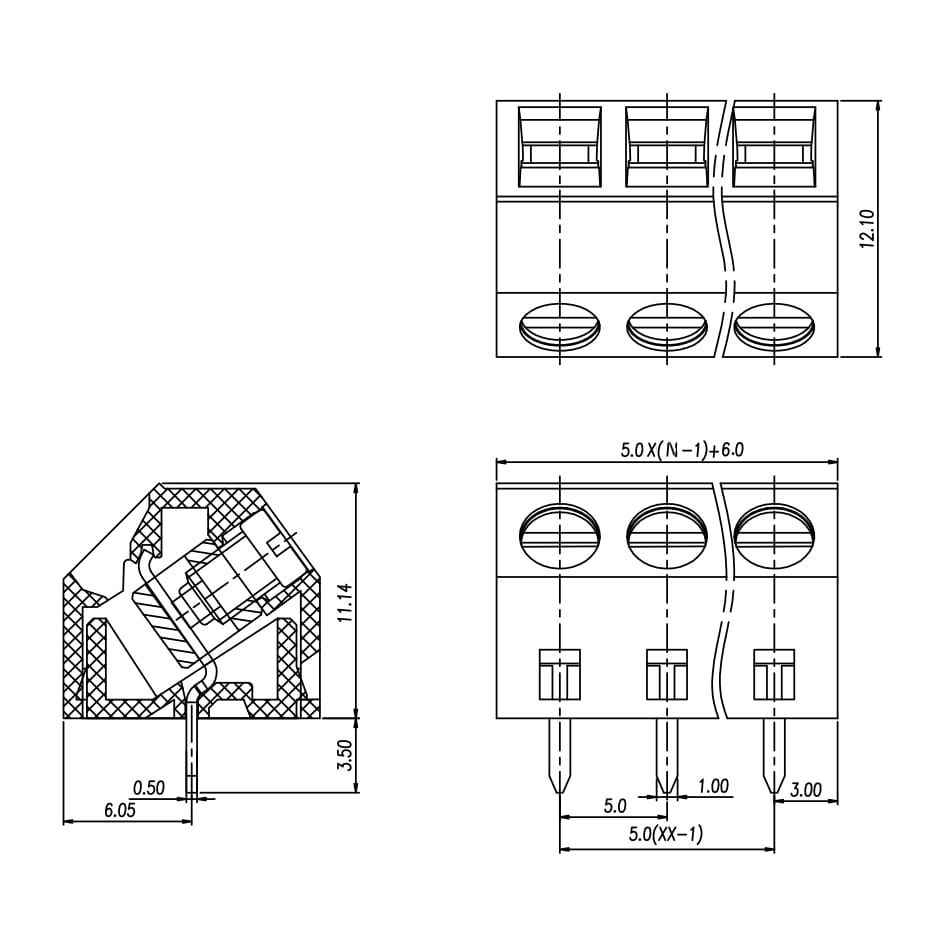

    Dimensional drawings

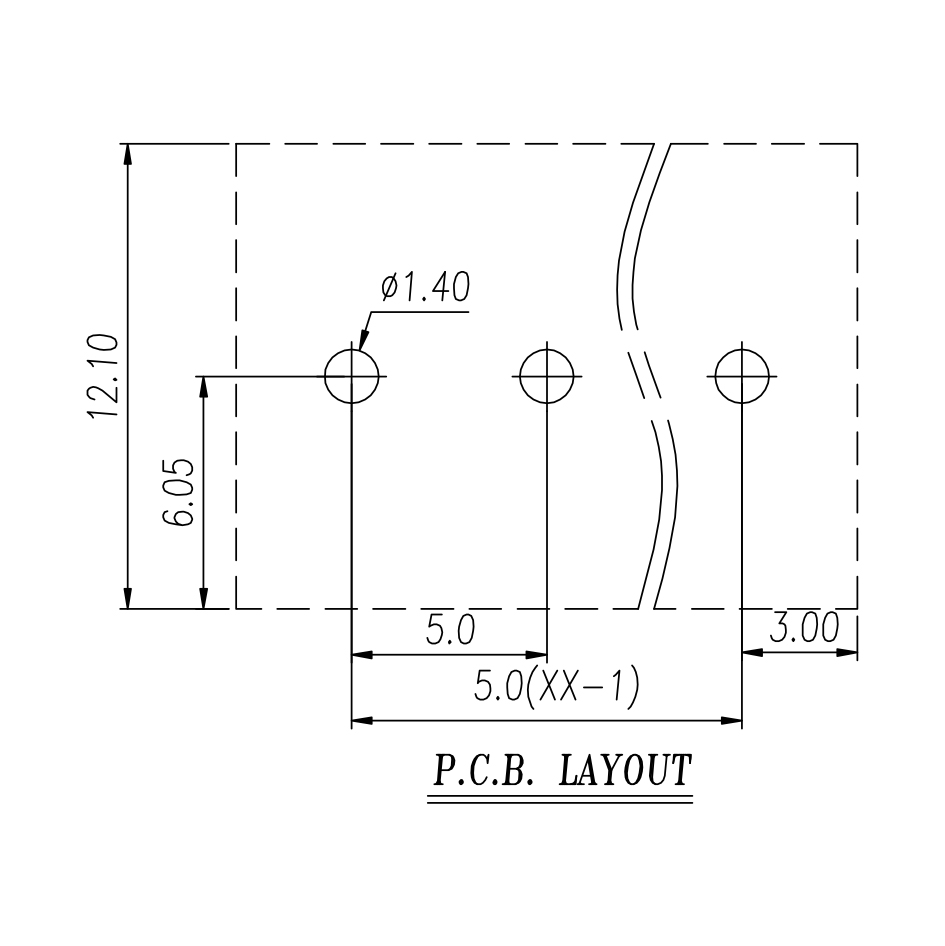

    PCB cut-out diagram
