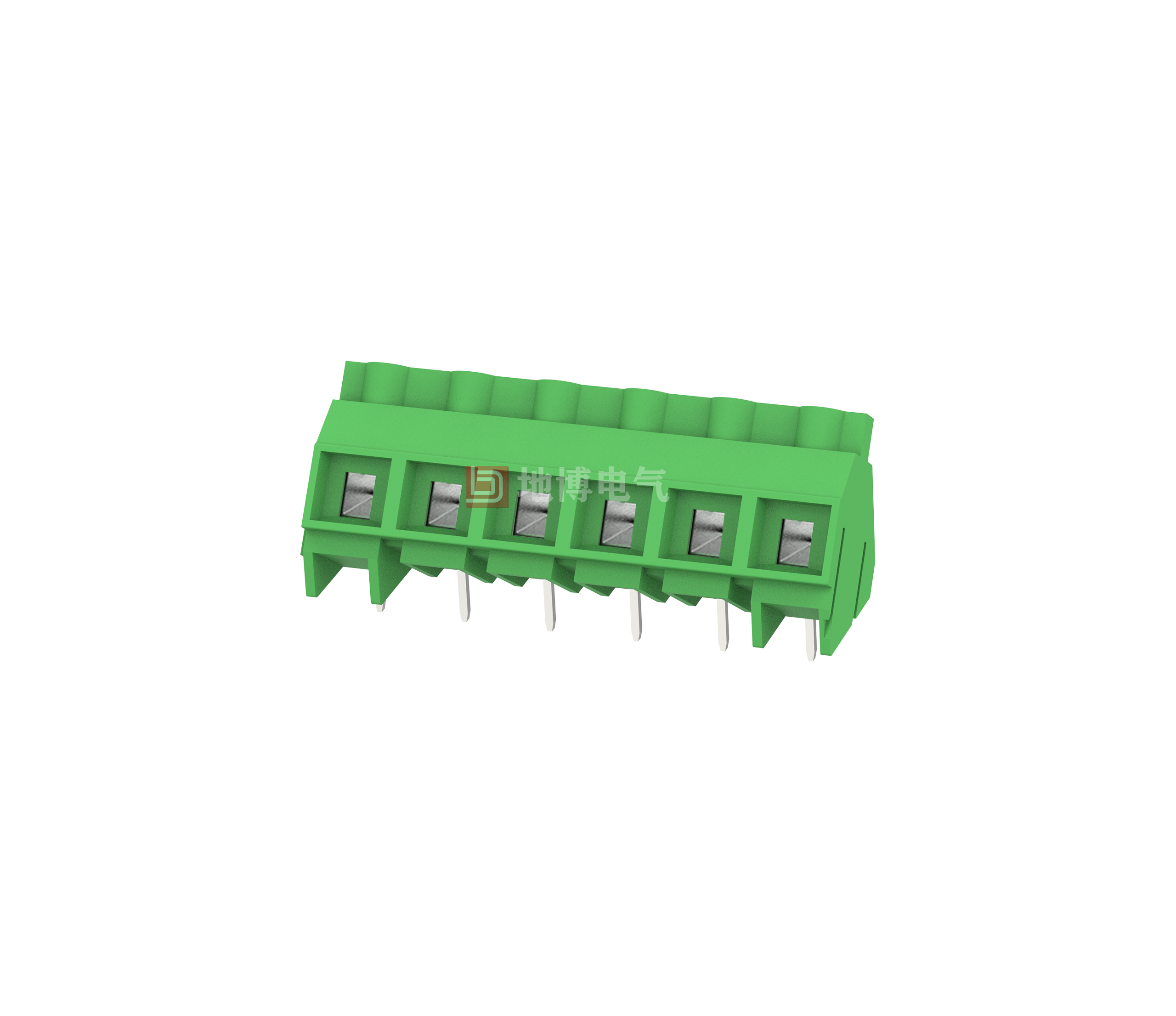

PCB terminal DB910S-9.52

Fixed connectors, Rated current: 32 A, Rated voltage (III/2): 630 V, Rated cross-section: 4 mm2, Number of potentials: 2-24, Number of rows: 1, Number of digits per row: 2-24, Series: DB910S, Pin pitch: 9.52 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Wave soldering, Wire/PCB connection orientation: 35°, Colour: green, Pin arrangement: straight, Solder pin [P]: 5 mm, Number of pins per potential: 1, Packaging type: Carton Pin arrangement: straight, Solder pin [P]: 5 mm, Number of pins per potential: 1, Packing type: carton. The product can be composed of connectors of different bit numbers!

Advantages

☑ Universal connection for worldwide use
☑ Maximum contact force with low temperature rise
☑ Allows connection of two stranded wires
☑ Various number of bits can be combined by means of side latches
☑ Bend connection allows for multiple rows on the PCB
0
Views: 17,178
Contact usDownload PDF View 3D Download CAD

  •

    Technical data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 300 300
    Rated Current [A]
    30 30 30
    Wire Range [AWG]
    26~10
    Dielectric Voltage-Withstand
    1.6KV



    Technical data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    630 1000 1000
    Rated Current [A]
    32 32 32
    Impulse withstand voltage [KV]
    8 8 8
    Conductor cross section [mm²]
    0.5~4.0



    Material information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    9.5/2~24
    Stripping Length [mm]
    6~7
    Screw/Torque(Max)[N.m]
    0.5
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    0.8*1.0
    PCB Hole Diameter [mm]
    Ø1.5



    Dimensional drawings





    PCB cut-out diagram
