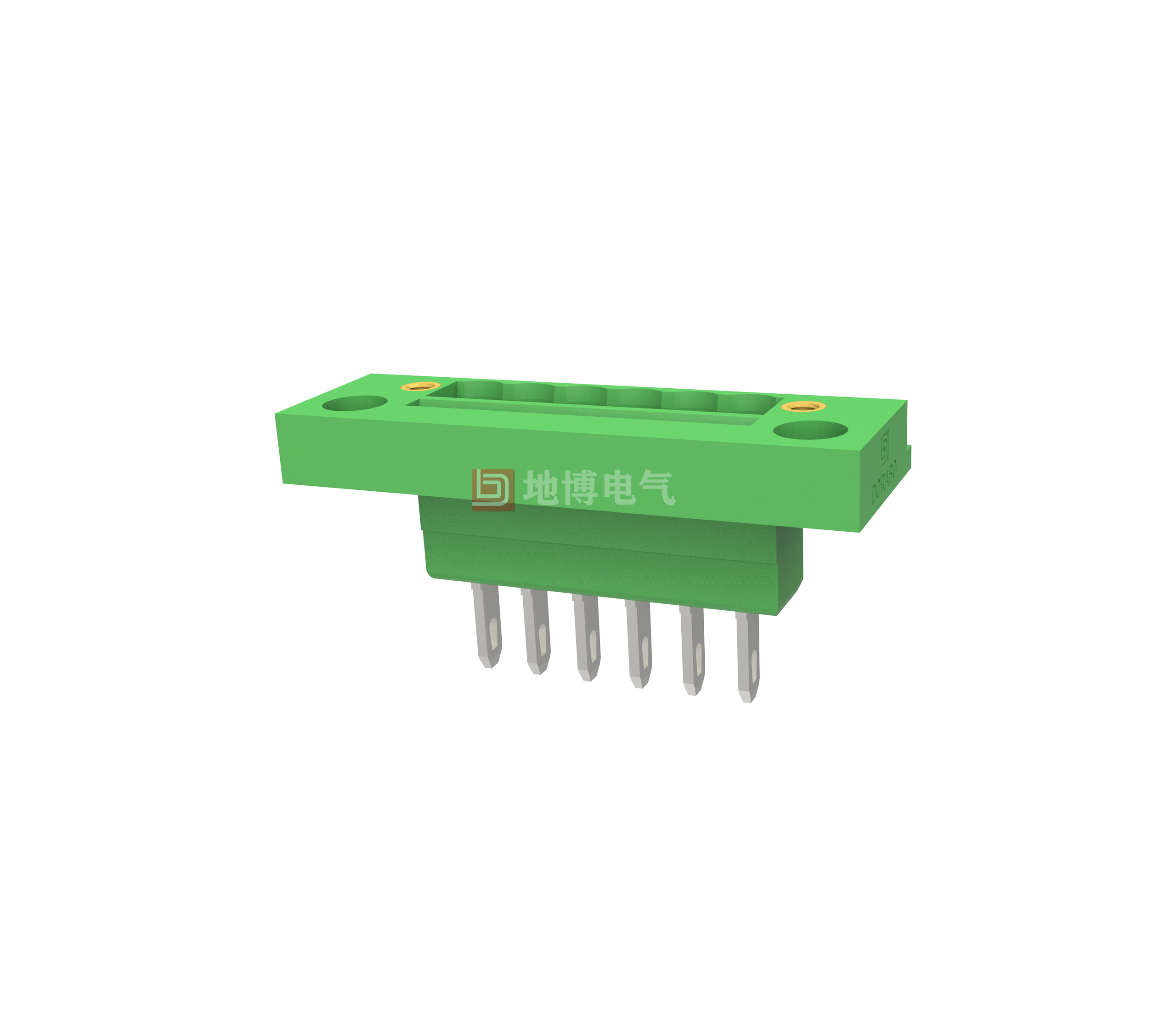

Through-wall connector DB2CM-5.08

Thru-wall receptacle, Rated cross-section: 2.5 mm2, Color: Green, Rated current: 12 A, Rated voltage (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Product family: DB2CM, Pin pitch: 5.08 mm, Wiring Style: Solder/Slip-on, Mounting: Direct Mount, Pin Alignment: Straight Alignment, Solder Pins [P]: 9.3 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2CM, Pin Connector Style Alignment: Standard, Interlock: No, Mounting: No, Package Type: Carton

Advantages

☑The cable connection is located inside the device, so it can be freely positioned through the plate connections
☑ Free choice - welded fixed connection or standard type slip-in connection
☑Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
0
Views: 294
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    320 320 630
    Rated Current [A]
    12 12 12
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.08/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    /

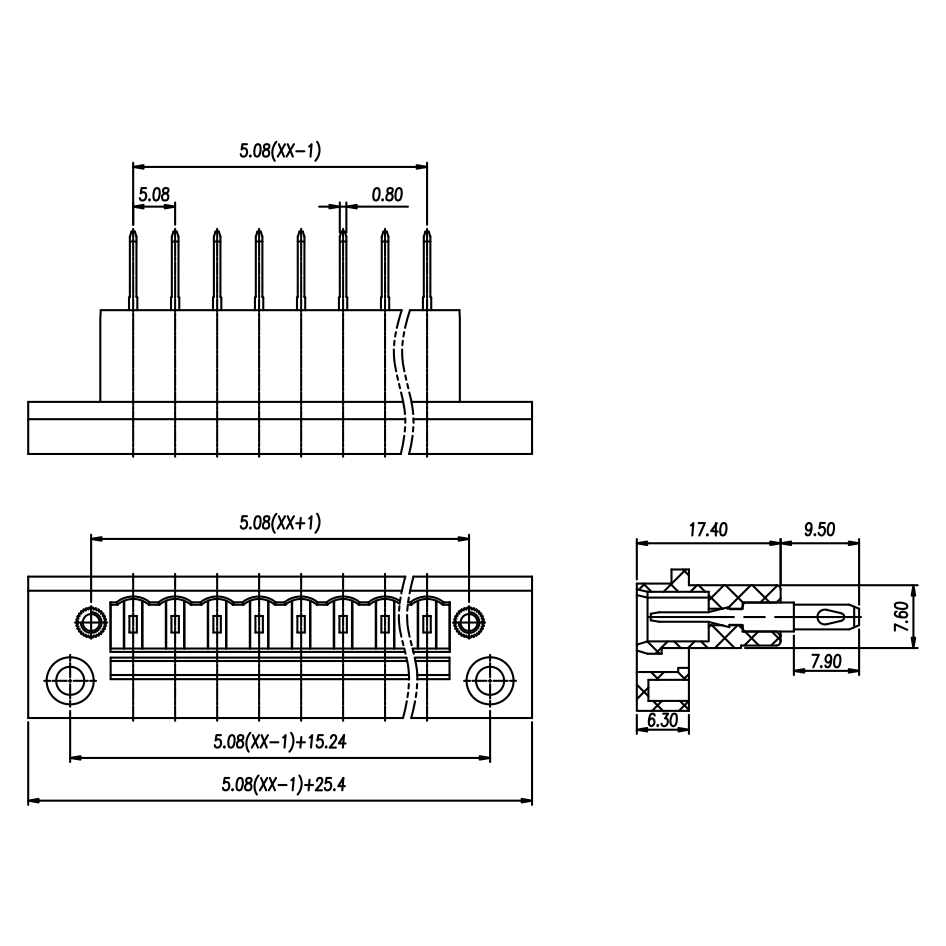

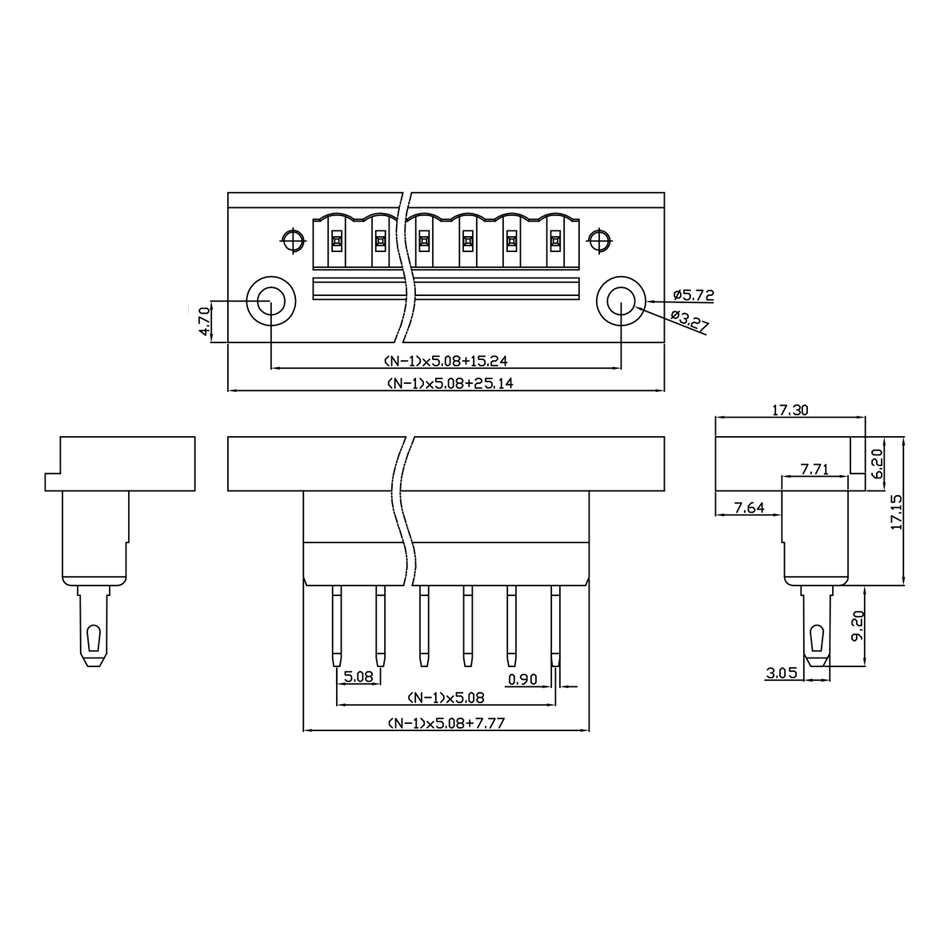

    Size Chart
