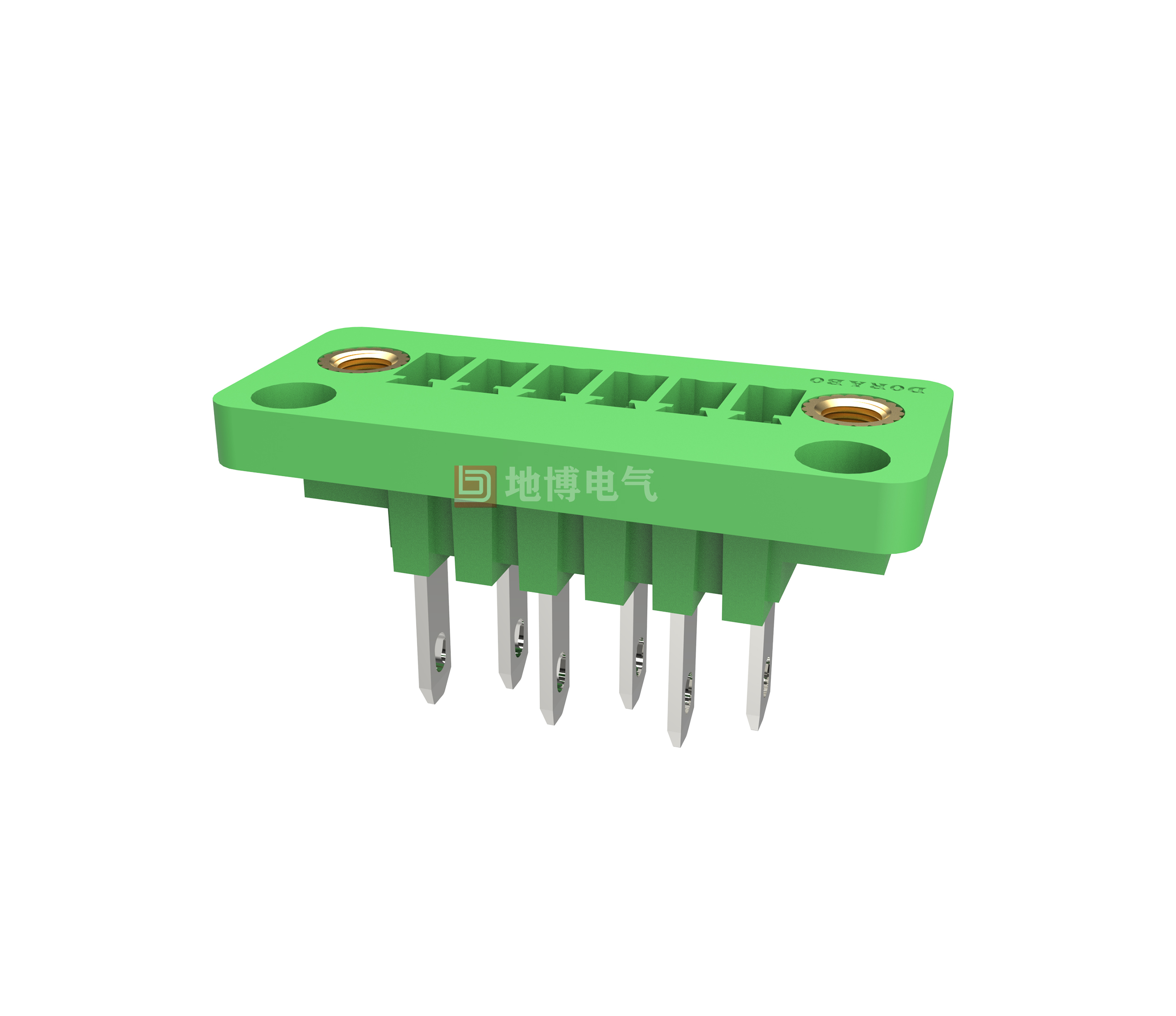

Through-wall connector DB2CM-3.81

Thru-wall receptacle, Rated cross-section: 1.5 mm2, Color: Green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connections: 2-24, Product family: DB2CM, Pin pitch: 3.81 mm, Wiring Style: Solder/Slip Fit, Mounting: Direct Mount, Pin Alignment: Straight Alignment, Solder Pins [P]: 9.4 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2CM, Pin Connector Style Alignment: Standard, Interlock: Screw Fastening, Mounting: Screw Flange, Package Type: Carton

Advantages

☑Free choice - Welded fixed connection or standard type slip-in connection
☑ cable connections are located inside the device, so they can be freely positioned through-plate connections
0
Views: 327
Contact usDownload PDF View 3D Download CAD

  • Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 320
    Rated Current [A]
    7 7 7
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.81/2~24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    /
    PCB Hole Diameter [mm]
    Ø1.5

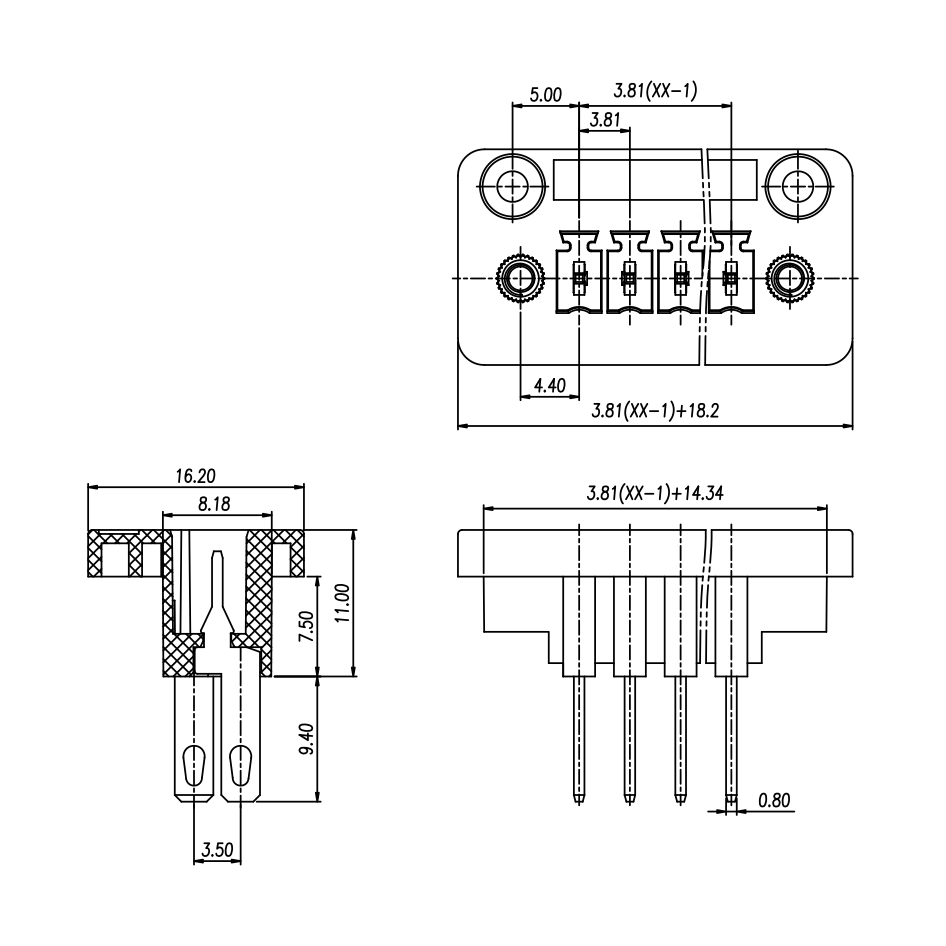

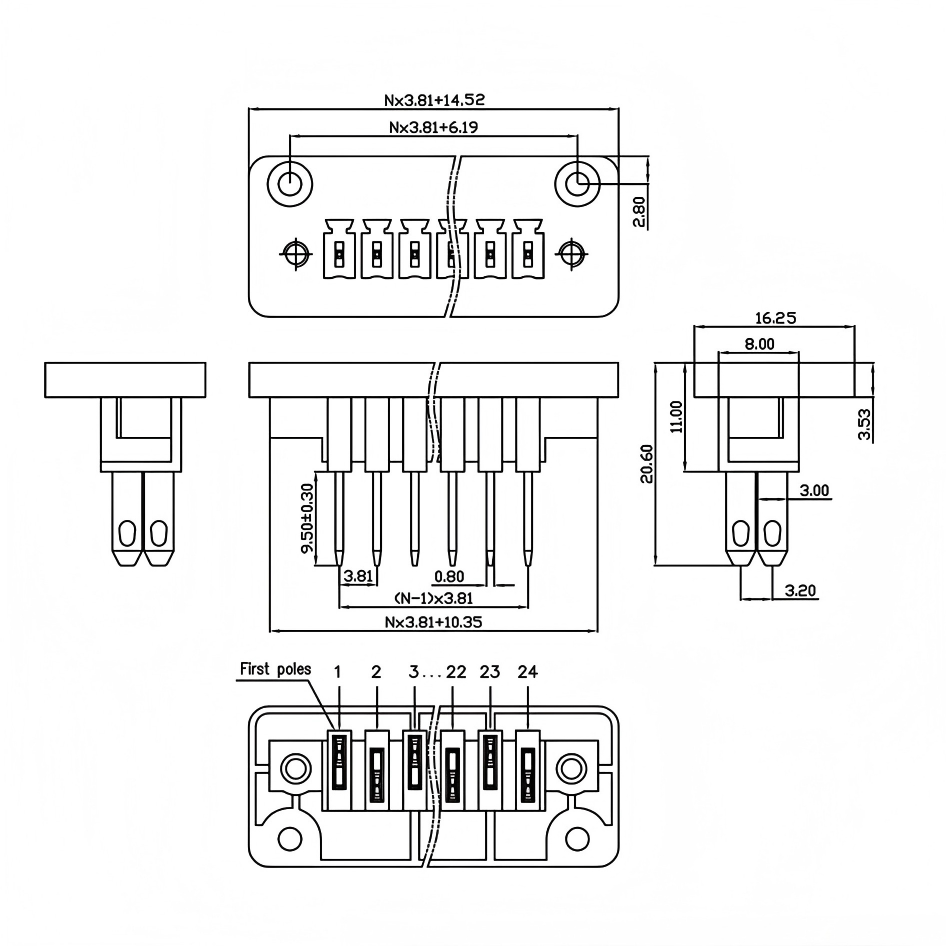

    Size Chart

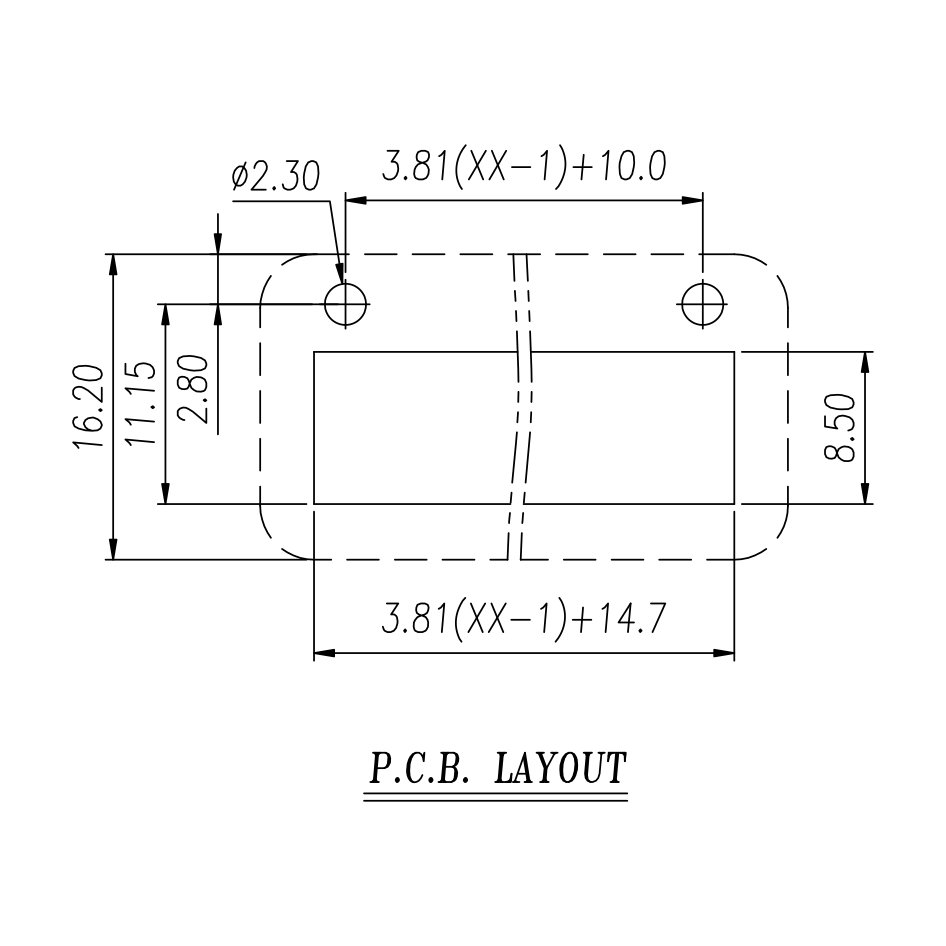

    PCB opening diagram
