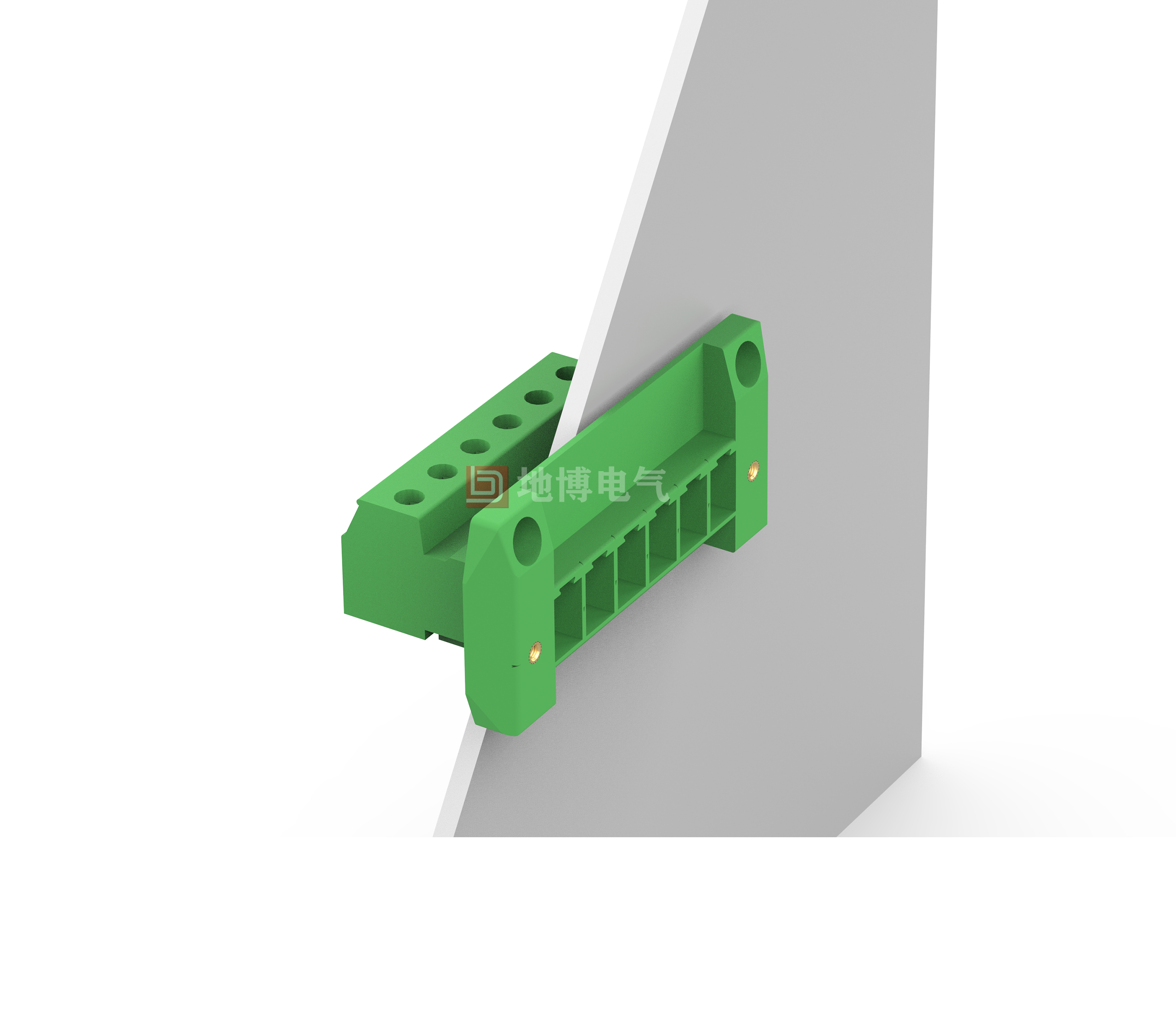

Thru-wall connector, Cross-sectional rating: 4 mm2, Color: Green, Current rating: 20 A, Voltage rating (III/2): 630 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connections: 2-16, Series: DB3CKM, Pin pitch: 7.62 mm, Wiring: Screw connection with tab, Screw head size: L slotted, Mounting: Direct mount, Wire/PCB connection orientation: 0°, Number of solder pins per potential: 1, Insertion system: COMBICON DB3CKM, Pin connector style alignment: Standard, Interlocking: Screw tight, Mounting: Screw flange, Package type: Carton packing</p div class="col-12">
Advantages
☑Universal connectivity for used globally
☑s maximum contact force with lower ramp-up
☑ allows two strands to be connected
☑ bolt flange ensures high mechanical stability
☑Easy pre-wired wall mounting from the inside with flexible side panels
