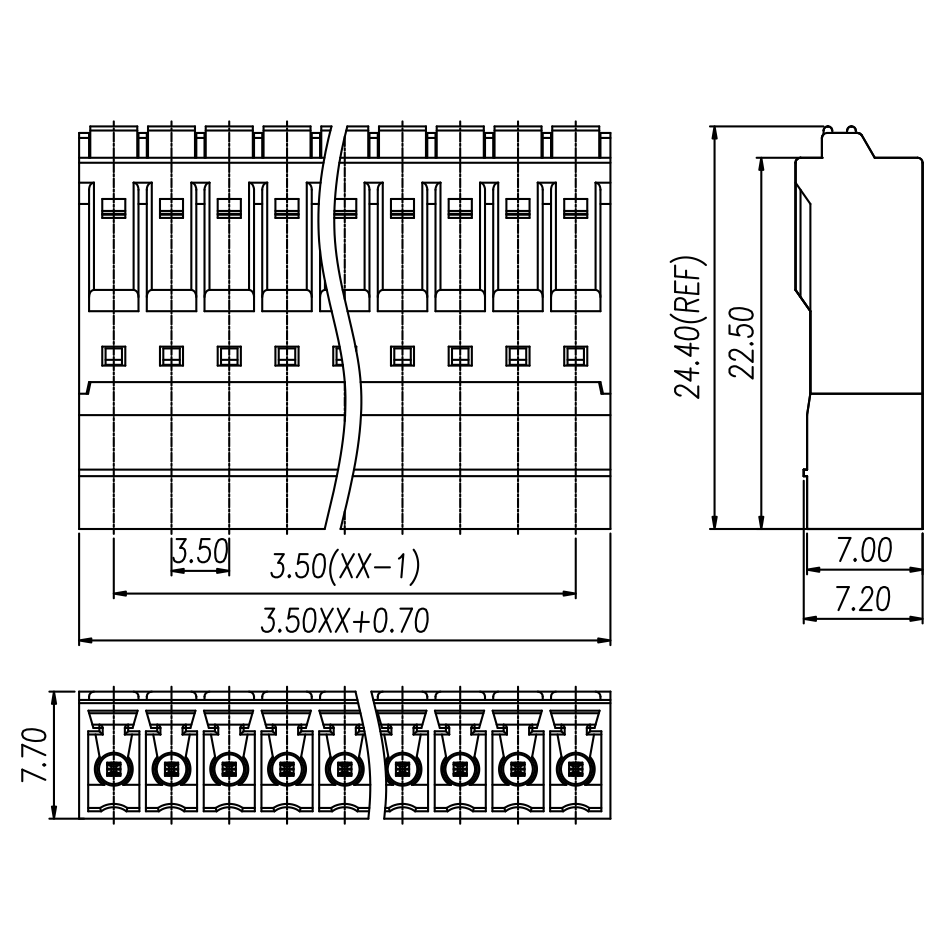

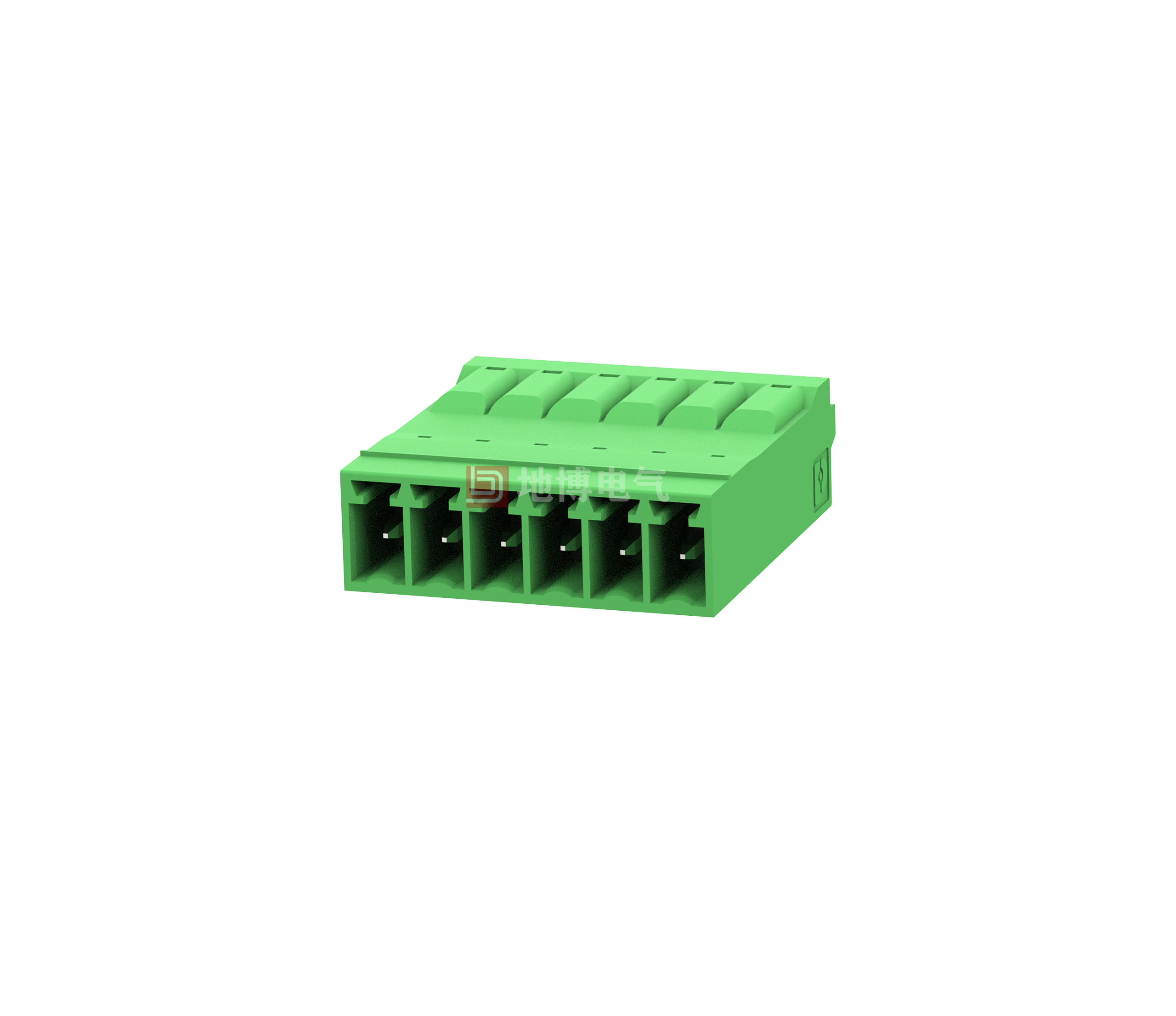

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 2-24, Number of rows: 1, Number of digits: 2-24, Connection capacity: 2-24, Series: DB2EKNR, Pin pitch: 3.5 mm, Wiring type: in-line Spring connection, Wire/PCB connection direction: 0°, Insertion system: COMBICON DB2EKNR, Interlocking: without, Mounting: without, Packing type: carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction so that they can be integrated into the front of the device
☑Reverse connector with multiple pin pins to provide anti-touch protection for device outputs or free hanging wire-to-wire connections
