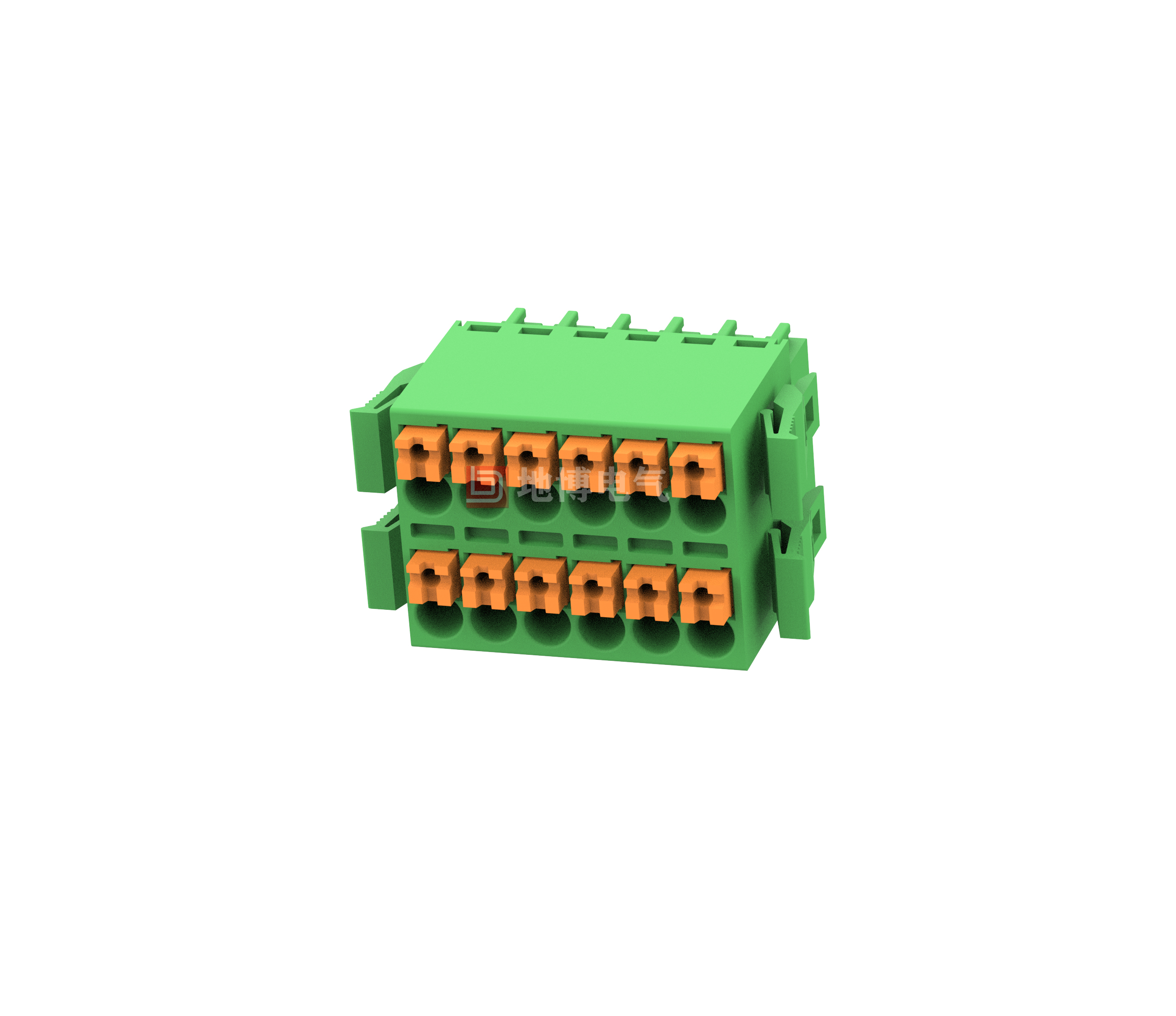

Plug-in connector, Nominal cross-section: 1.5 mm2, Colour: green, Rated current: 8 A, Rated voltage (III/2): 160 V, Contact surface: tin, Contact type: hole connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connection capacity: 4-48, Series: DB2EKNNG, Pin pitch: 3.5 mm, Wiring: straight Interlocking: snap-lock, Mounting: self-locking flange, Packing type: carton
Advantage
☑Time-saving plug-and-play connection, no tools required
☑Set contact force guarantees stable contacts over time
☑Colour coded joystick for intuitive use
☑Wires can be connected and disconnected from a single direction, allowing them to be integrated into the front of the unit
☑Intuitive locking mechanism to prevent accidental disconnection
