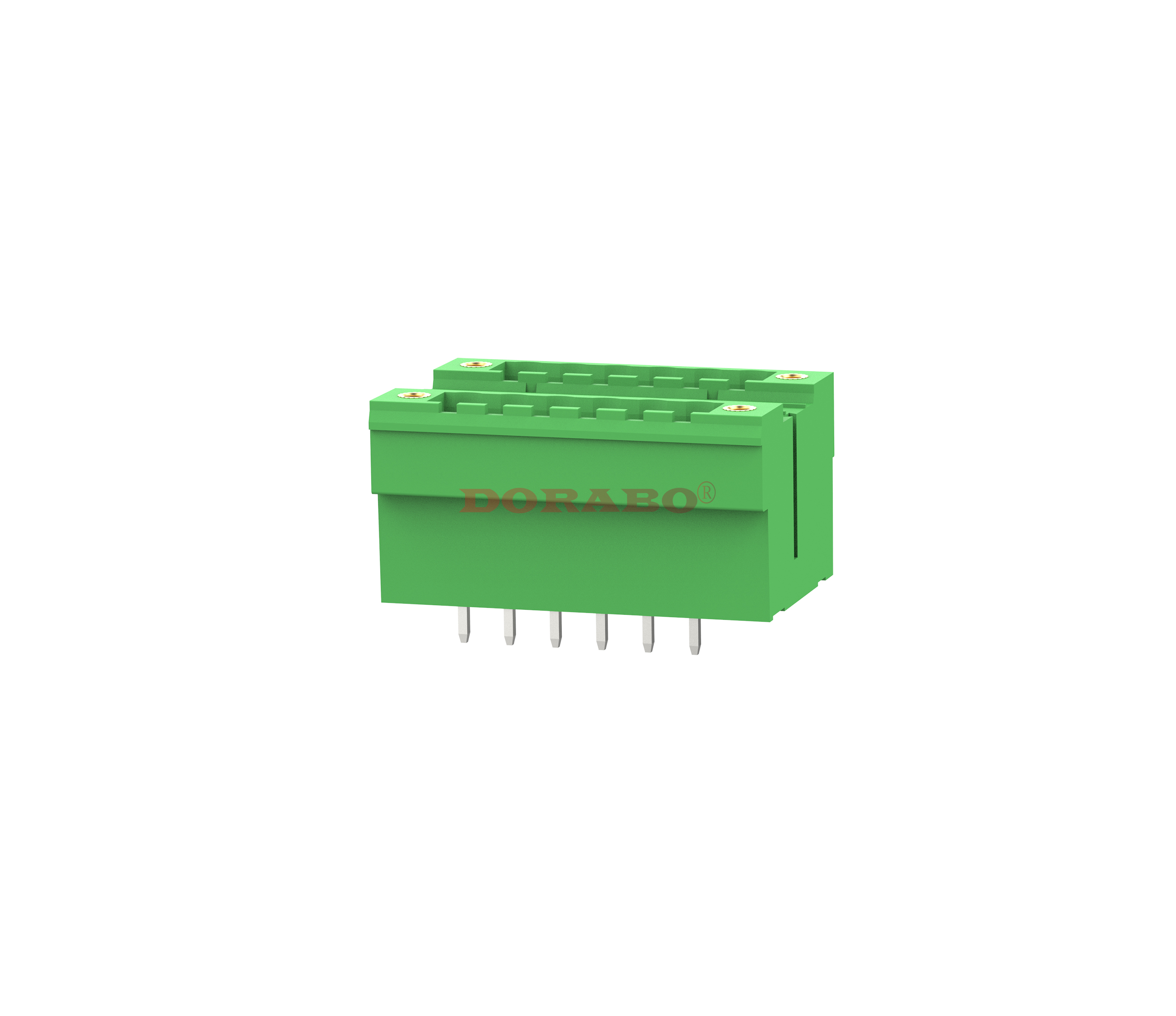

PCB Socket DB2EVHM-5.0

PCB housing, color: green, nom. current: 15 A, rated voltage (III/2): 300 V, contact surface: tin, contact type: pin connector, number of potentials: 2-24, number of rows: 2-24, number of positions: 2-24, amount of connection: 2-24, product range: DB2EVHM, pitch: 5.0 mm, mounting: wave soldering, pin arrangement: straight, solder pins [P]: 3.5 mm, number of pins per potential: 1, plugging system: COMBICON DB2EVHM, Pin Connector Style Alignment: Standard, Interlock: Screw Fastening, Mounting: Screw Flange, Packing Type: Carton Packing, When used in combination with DB2EKM plugs, both DB2EKM and DB2EKDM plugs must be used.

Advantage

☑ Universal installation for worldwide use
☑ The bolt flange guarantees a high degree of mechanical stability
☑ This ensures a high degree of flexibility in the design of the device – with just one socket, you can meet the needs of connectors with different connection technologies
☑ Multi-layer conductor connection for high contact density
0
Views: 142
Contact usDownload PDF View 3D Download CAD

  •

    Technical data - UL/CUL



    Rank Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data - IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 620
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General parameters



    Pitch/Poles [mm]/[P]
    5.0/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [°C]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB板孔径 PCB Hole Diameter [mm]
    Ø1.7



    Dimensional drawings





    PCB perforation diagram
