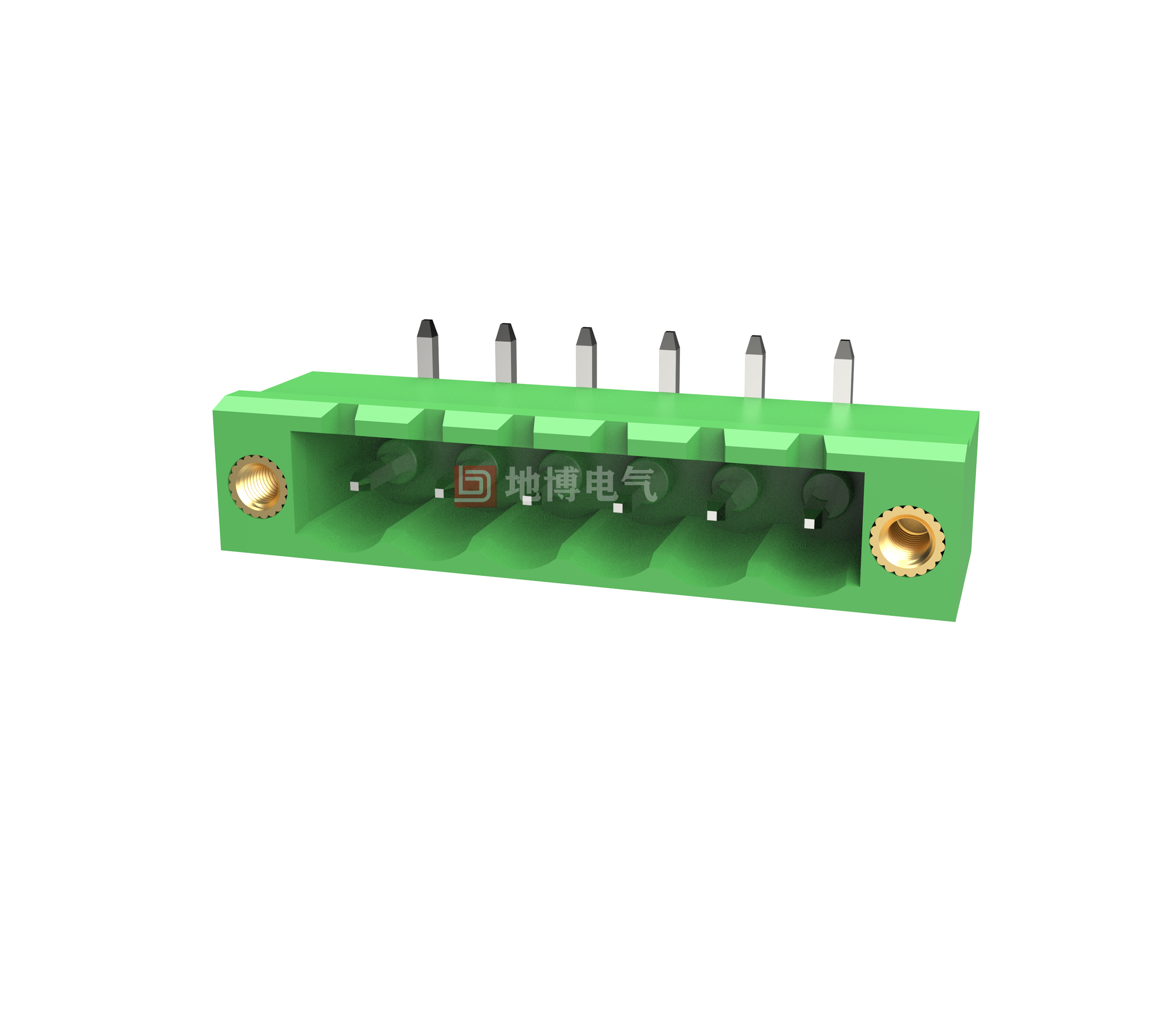

PCB socket DB2ERMF-5.08

PCB Housing, Cross-sectional rating: 2.5 mm2, Color: Green, Current rating: 12 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-24, Number of rows: 1, Number of bits: 2-24, Connections: 2-24, Product family: DB2ERMF, Pitch: 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight, Pin [P]: 3.3 mm, Number of pins per potential: 1, Insertion system: COM Pin Pitch: 5.08 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Pin [P]: 3.3 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2ERMF, Pin Connector Style Alignment: Reverse, Interlock: Screw Fastening, Mounting: Screw Flange, Package Type: Carton

Advantages

☑ Ensures a high degree of flexibility in device design - Only one socket is needed for connectors that utilize different connection technologies
☑ Easy PCB replacement with pluggable modules
☑ universal mounting for worldwide use
☑Plugging direction parallel to PCB
☑ Bolted flange ensures high mechanical stability

0
Views: 330
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    250 320 400
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    4 4 4
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    5.0，5.08/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.7



    Size Chart





    PCB opening diagram
