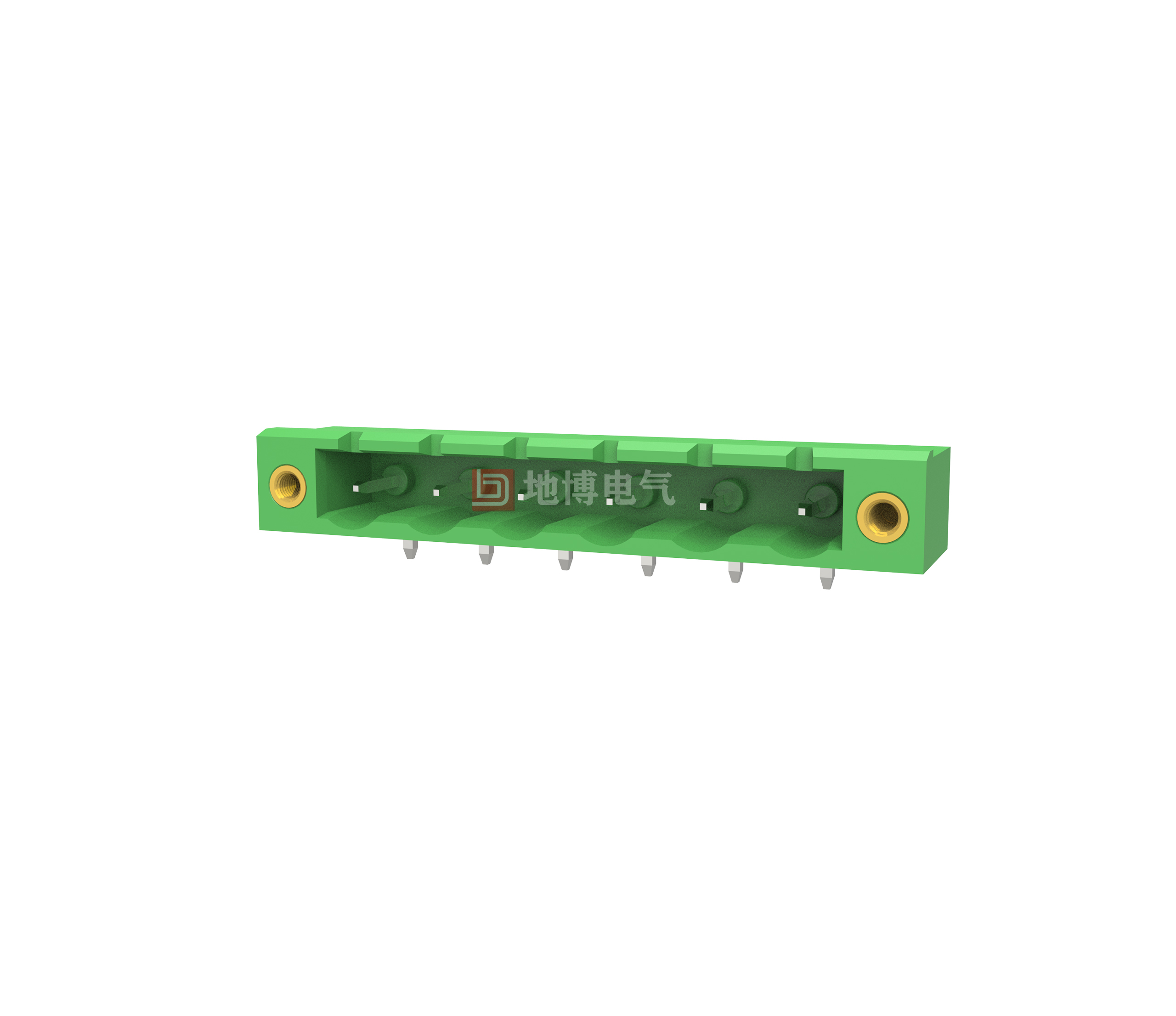

PCB socket DB2ERM-7.62

PCB Housing, Nominal cross-section: 2.5 mm2, Color: Green, Nominal operating current: 12 A, Rated voltage (III/2): 630 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 2-16, Number of rows: 1, Number of digits: 2-16, Connections: 2-16, Product family: DB2ERM Pin Pitch: 7.62 mm, Mounting: Wave Soldering, Wire/PCB Connection Orientation: 0°, Pin Alignment: Straight Alignment, Solder Pin [P]: 3.2 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2ERM, Pin Connector Style Alignment: Standard, Interlock: Screw Fastening, Mounting: Screw Flange, Package Type: Carton Packaging</p div class="col-12">

Advantages

☑ Ensures high degree of device design flexibility - only one socket is needed for connectors that utilize different connection technologies
☑universal mounting for global use
☑Larger pin spacing for increased voltage requirements
0
Views: 335
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    15 - 10
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    400 630 630
    Rated Current [A]
    10 10 10
    Impulse withstand voltage [KV]
    6 6 6
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    7.5，7.62/2-24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+105
    Soldering temperature
    250℃/5S
    Pin dimensions [mm]
    1.0*1.0
    PCB Hole Diameter [mm]
    Ø1.7

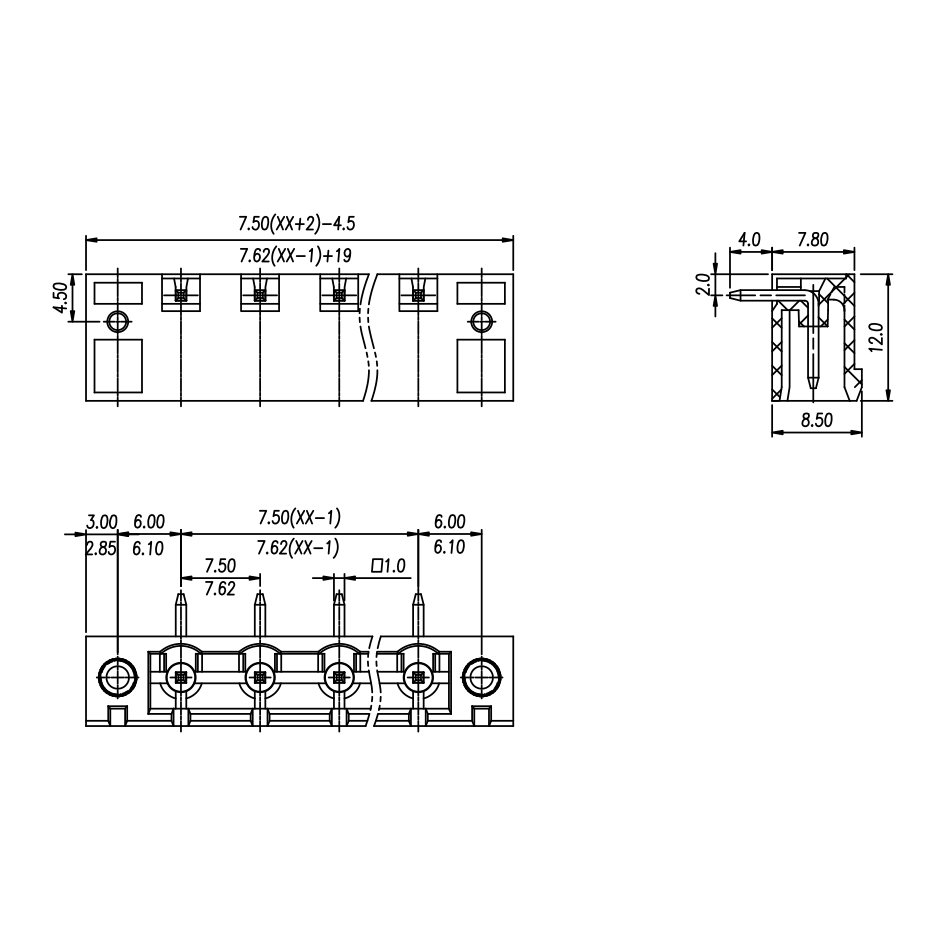

    Size Chart

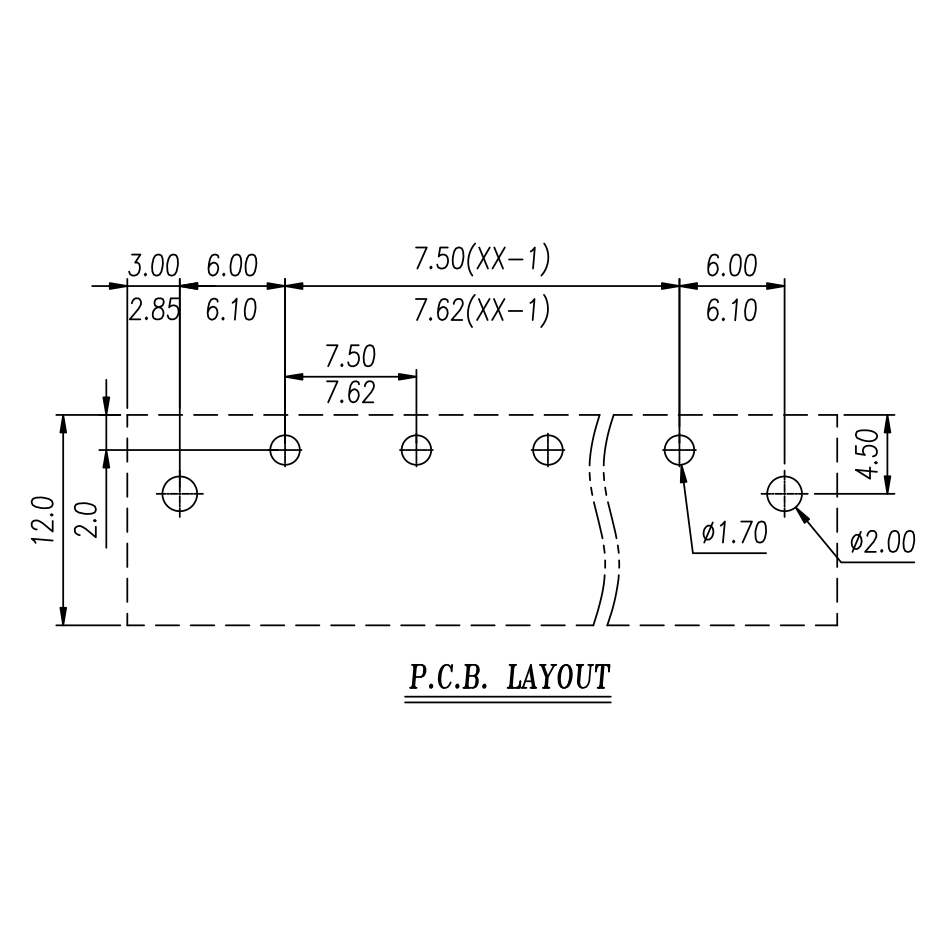

    PCB opening diagram
