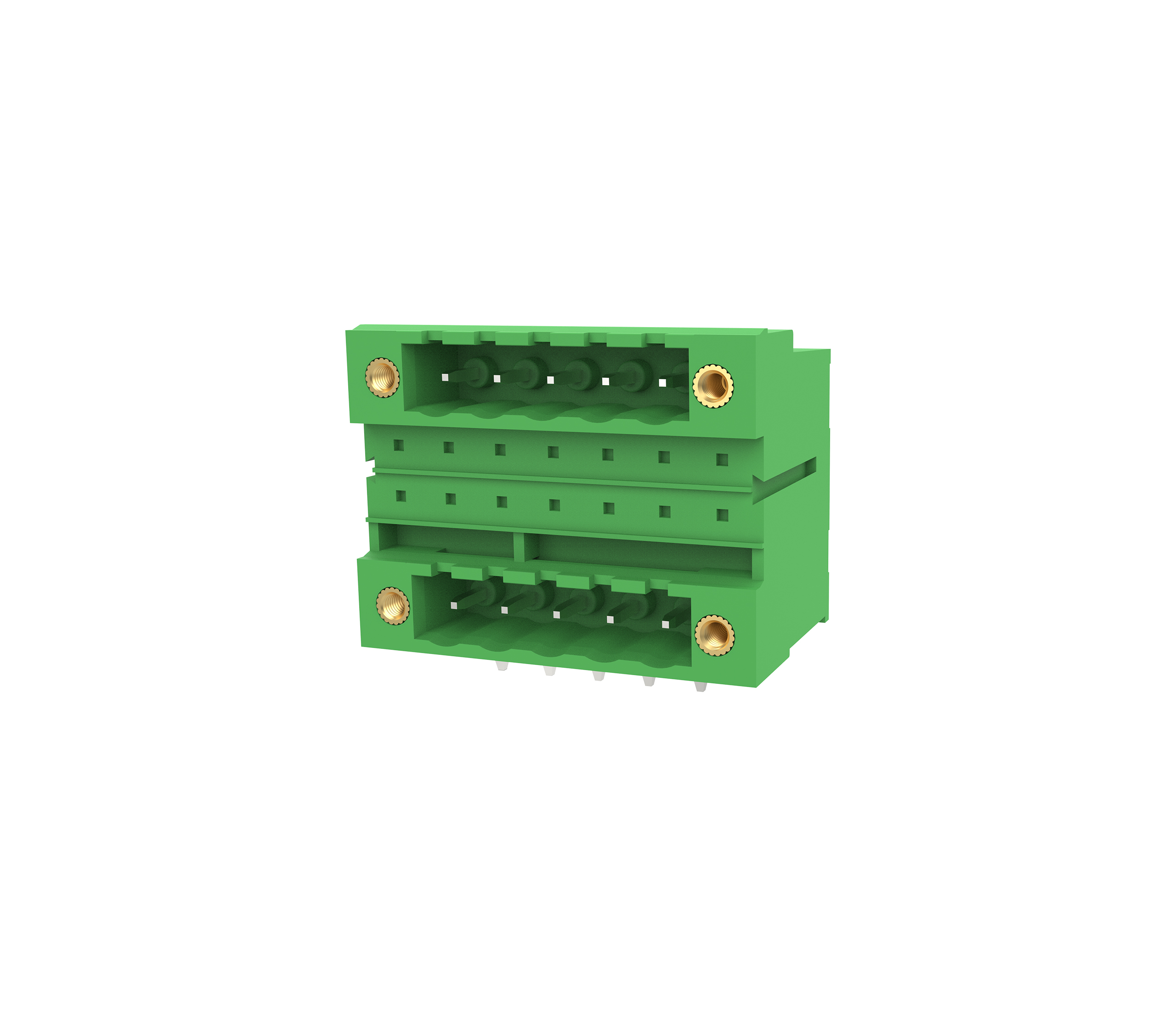

PCB socket DB2ERHM-5.08

PCB Housing, Cross-sectional rating: 2.5 mm², Color: Green, Current rating: 10 A, Voltage rating (III/2): 320 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of bits: 4-48, Connections: 4-48, Product family: DB2ERHM, Pin pitch: 5.08 mm, Mounting: Wave soldering, Pin alignment: Straight, Pin [P]: 3.5 mm, Number of pins per potential: 1 Pin Pitch: 5.08 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Solder Pins [P]: 3.5 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2ERHM, Pin Connector Style Alignment: Standard, Interlock: Without, Mounting: Without, Package Type: Carton, When used in combination with DB2EKM or DB2EKDM plug components When used in combination with DB2EKM or DB2EKDM plug components, both DB2EKM (or DB2EKDM) and DB2EKM plugs (or DB2EKDM) must be used.
