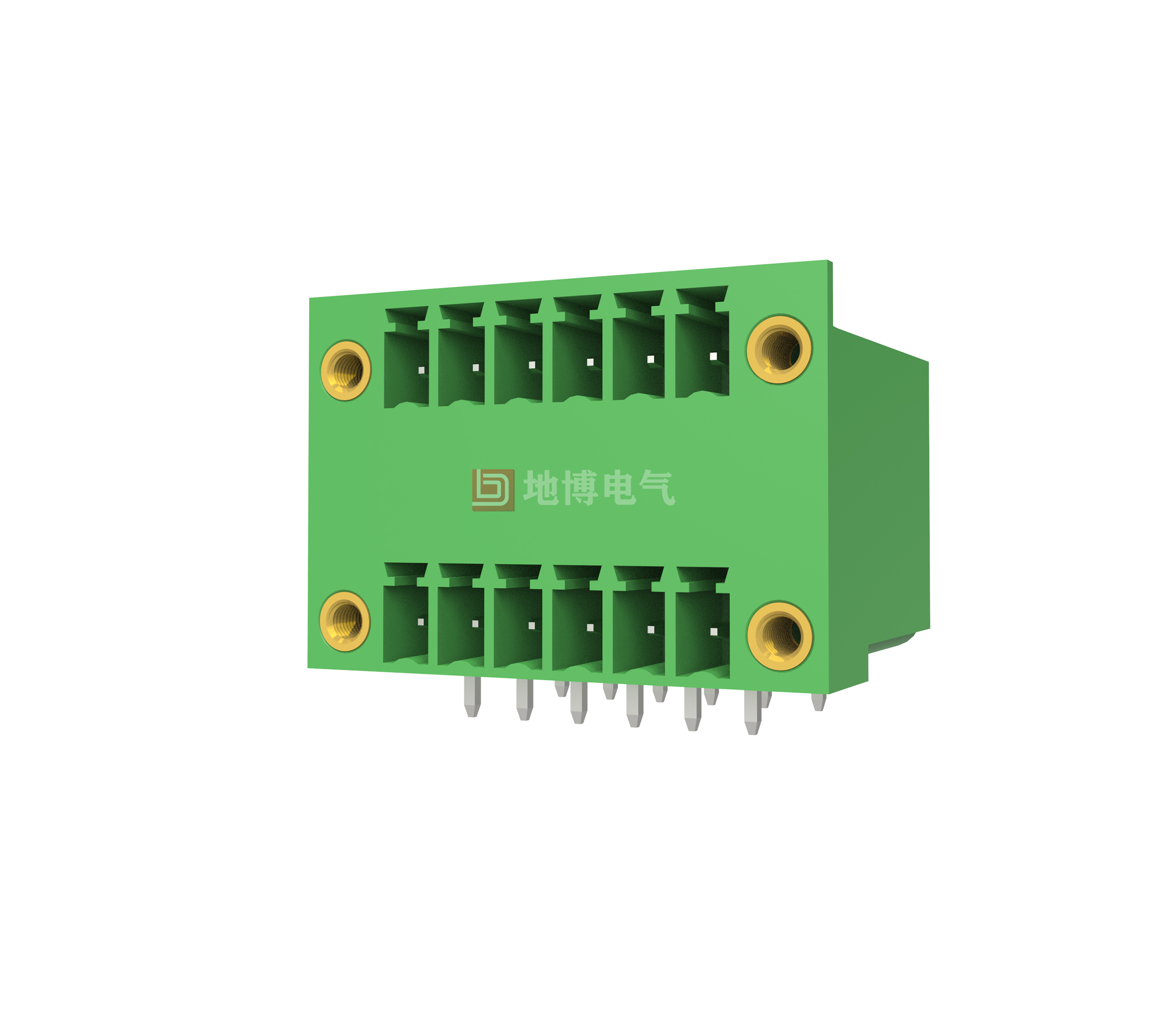

PCB socket DB2ERHM-3.81

PCB Housing, Nominal Cross Section: 1.5 mm², Color: Green, Nominal Operating Current: 8 A, Rated Voltage (III/2): 160 V, Contact Surface: Tin, Contact Type: Pin Connector, Number of Potentials: 4-48, Number of Rows: 2, Number of Positions: 4-48, Connections: 4-48, Product Family: DB2ERHM, Pin Pitch: 3.81 mm, Mounting: Wave Soldering, Pin Alignment: Straight, Pin [P]: 3.5 mm, Number of Pins per Potential: 1, Insertion System: COM Pin Pitch: 3.81 mm, Mounting: Wave Soldering, Pin Alignment: Straight Alignment, Solder Pins [P]: 3.5 mm, Number of Pins per Potential: 1, Insertion System: COMBICON DB2ERHM, Pin Connector Style Alignment: Standard, Interlock: Screw Fastening, Mounting: Screw Flange, Package Type: Carton, When used in combination with DB2EKM plugs, both DB2EKM and DB2ERHM must be used When used in combination with DB2EKM plugs, both DB2EKM and DB2EKDM plugs must be used.
