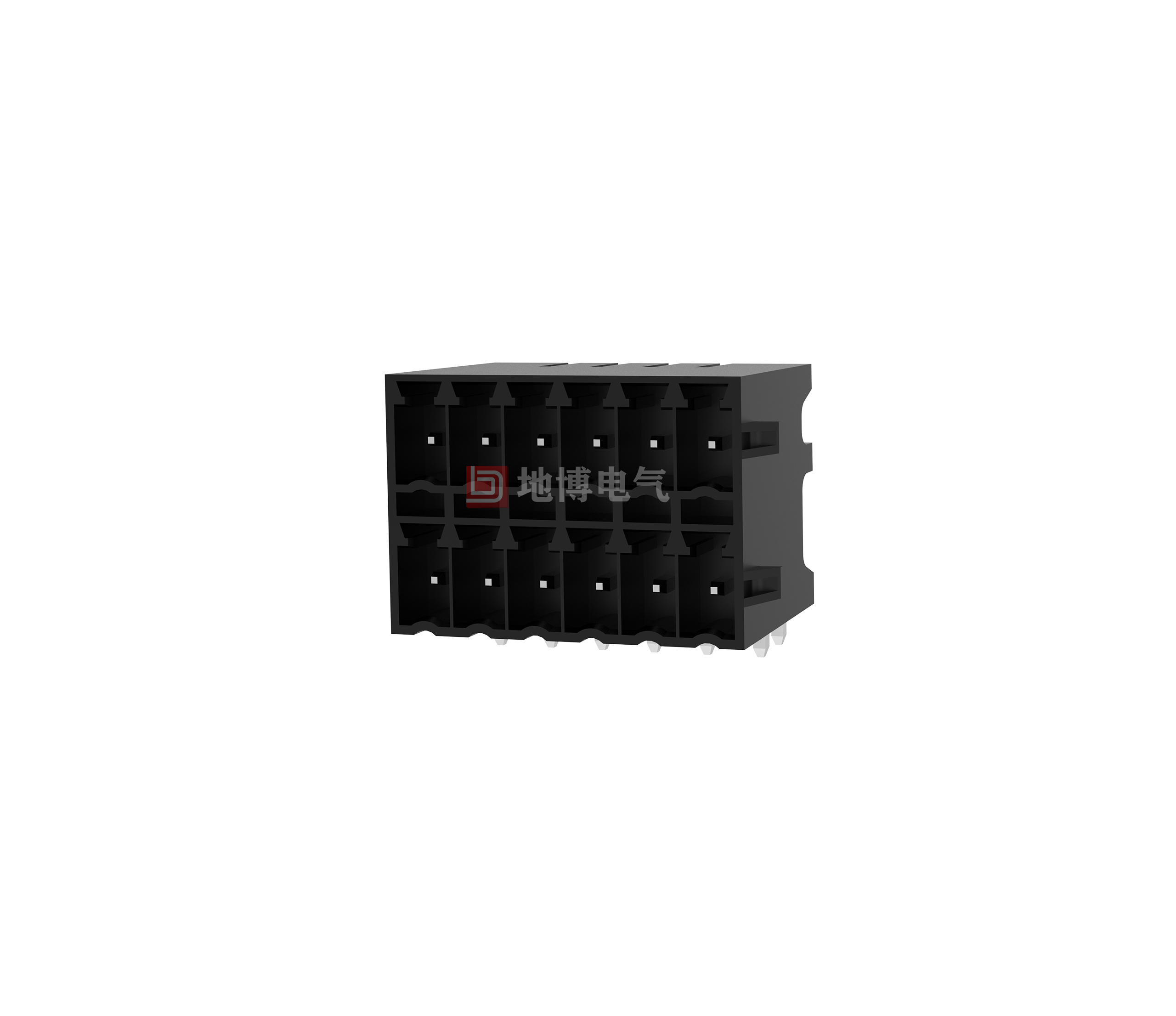

PCB socket DB2ERHBG-3.5

THR, Pin Pitch: 3.5 mm, Mounting: THR Solder, Pin Alignment: Straight Alignment, Solder Pins [P]: 1.4 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2ERHBG, Pin Connector Style Alignment: Standard, Interlock: Snap Lock, Mounting: Locking Device, Package Type: Carton, Receptacle with Locking Device.

Advantages

☑Designed for integration into the SMT soldering process

☑Intuitive locking mechanism prevents accidental disconnects
☑Vertical connection enables multi-row layout on PCB
0
Views: 328
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 250
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4

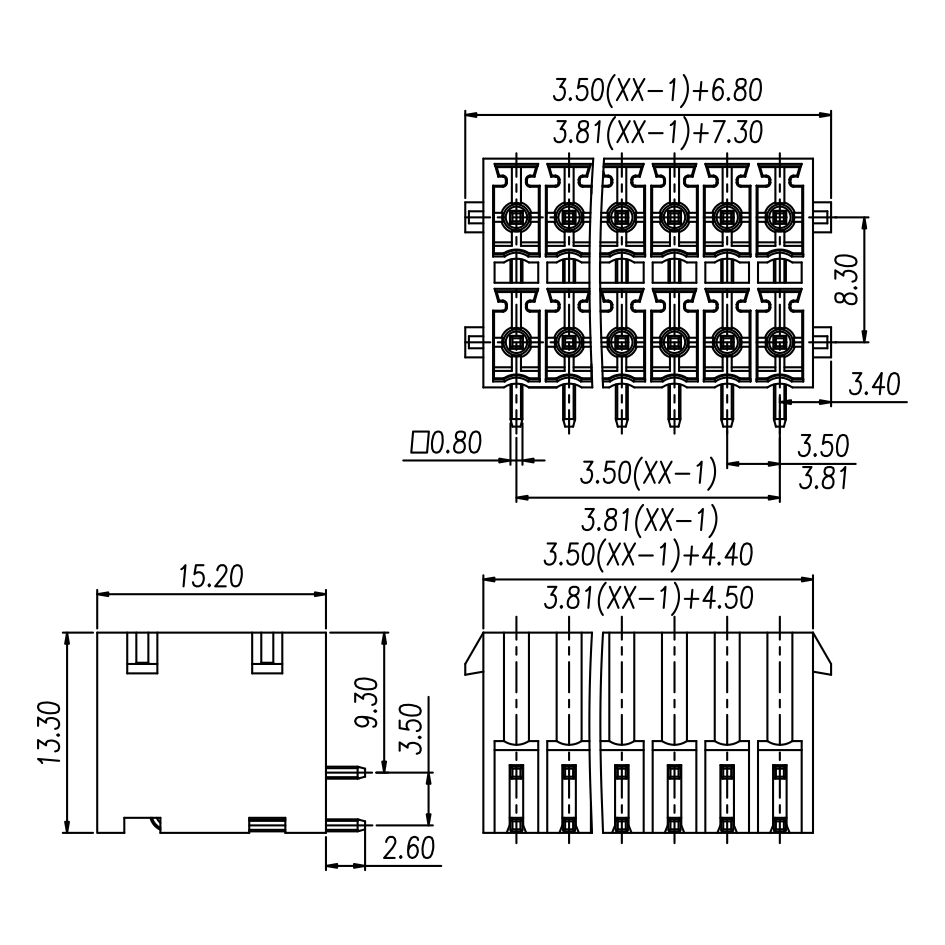

    Size Chart





    PCB opening diagram
