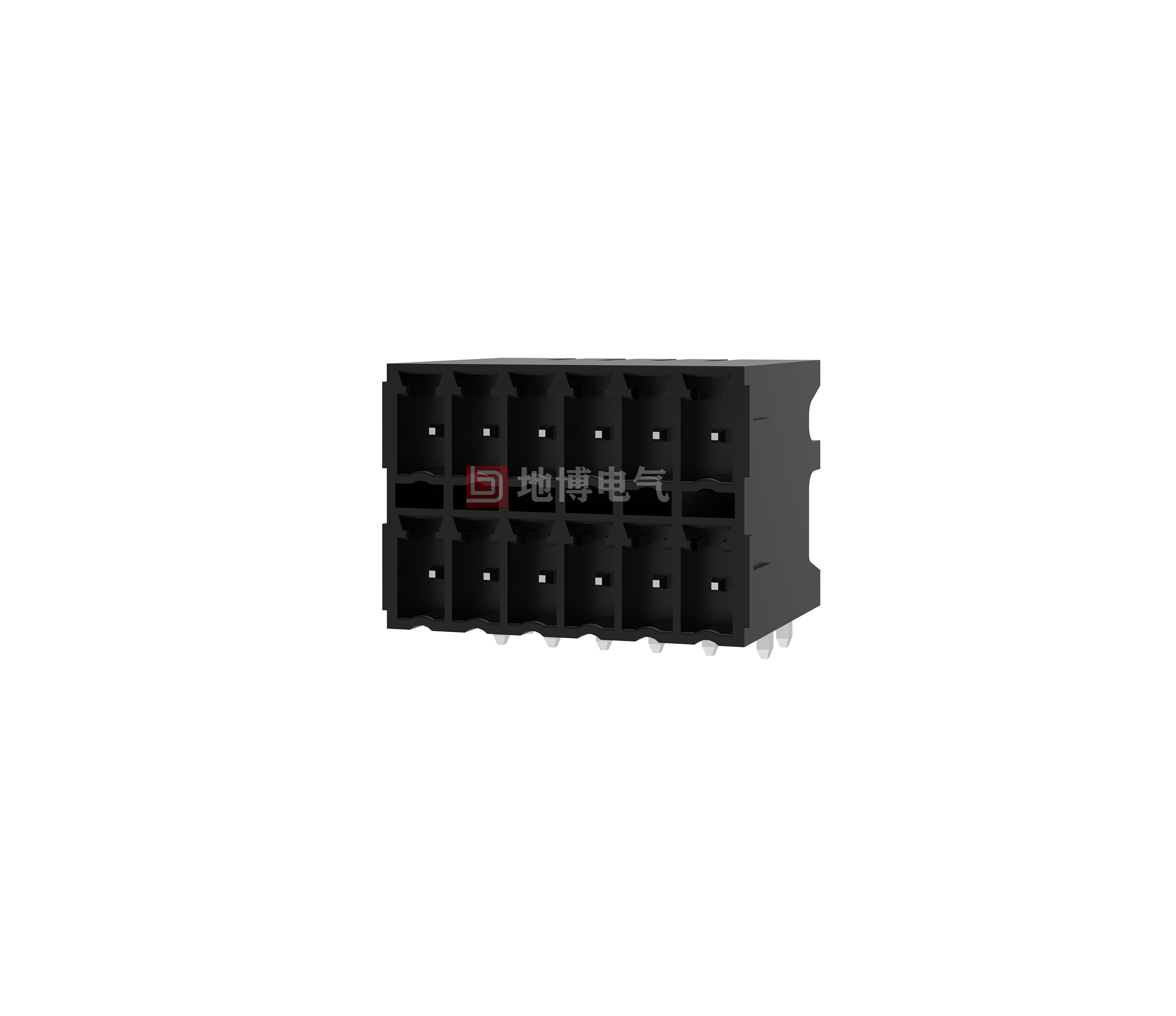

PCB socket DB2ERHB-3.81

PCB Housing, Cross-sectional rating: 1.5 mm2, Color: Black, Current rating: 8 A, Voltage rating (III/2): 160 V, Contact surface: Tin, Contact type: Pin connector, Number of potentials: 4-48, Number of rows: 2, Number of digits: 4-48, Connections: 4-48, Product family: DB2ERHB, Pin Pitch: 3.81 mm, Mounting: THR Solder, Pin Alignment: Straight Alignment, Solder Pins [P]: 1.4 mm, Number of Solder Pins per Potential: 1, Insertion System: COMBICON DB2ERHB, Pin Connector Style Alignment: Standard, Interlocking: Without, Mounting: Without, Package Type: Carton, Receptacle with Locking Device.

Advantages

☑Designed for integration into SMT soldering process
☑Ensures a high degree of flexibility in device design - only one socket is needed for connectors that utilize different connection technologies
☑multi-layer wire connections for high contact density
0
Views: 330
Contact usDownload PDF View 3D Download CAD

  •

    Technical Data-UL/CUL



    Use Group
    B C D
    Rate Voltage [V]
    300 - 300
    Rated Current [A]
    8 - 8
    Wire Range [AWG]
    /
    Dielectric Voltage-Withstand
    1.6KV



    Technical Data-IEC



    Overvoltage Category
    III III II
    Contamination Class
    3 2 2
    Rated Voltage [V]
    160 160 250
    Rated Current [A]
    8 8 8
    Impulse withstand voltage [KV]
    2.5 2.5 2.5
    Conductor cross section [mm²]
    /



    Material Information



    Insulation Material
    PA66
    Flame relardant rating
    UL94V-0
    Conductor Material
    Copper alloy
    Plating of conductor surface
    Sn plated



    General Parameters



    Pitch/Poles [mm]/[P]
    3.5，3.81/2*2-2*24
    Stripping Length [mm]
    /
    Screw/Torque(Max)[N.m]
    /
    Operating temperature [℃]
    -40~+130
    Soldering temperature
    285℃/10S
    Pin dimensions [mm]
    0.8*0.8
    PCB Hole Diameter [mm]
    Ø1.4



    Size Chart





    PCB opening diagram
